Home > Products > Integral Rod > Integral drill rod / Integral drill steel

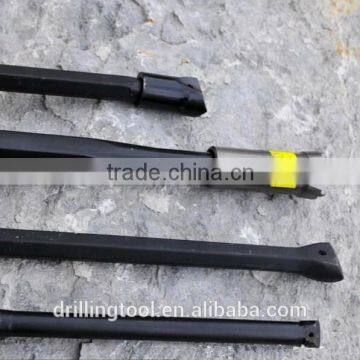

Integral drill rod / Integral drill steel
US$ 7 - 15
/ Piece
10 Pieces(Min. Order)
- TianJin or Based on Customers
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
H19 H22 R22 R25 Threaded Integral rod / Tapered rock drill steel rod
-
Chisel Bit Integral Rod Hex 22 Rock Drilling Tools
-
Shank22 x 108mm Hex Tapered Rod Length 610mm - 9600mm for Quarrying
-
Length 610mm - 9600mm with Shank22 x 108mm Hex Tapered Rod
-
hard rock Mining Integral drill steel,Integral drill rod
-
Small hole diameter taper drill rod drill steel for blast
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Drill Steel Rods / H22, H19 | Type | Drill Bit | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbide | Processing Type | Forging | |
| Use | Ore Mining |
Product Description
The H19 / H22 Integral drills steels, H19 / H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Specification
| Chisel Bit Integral Drill Steel | |||||
| Shank 19 x 108 mm (3/4” x 4 1/4”) | |||||
| Length (mm) | Bit Diameter (mm) | PN. | |||
| 1 | 400 | 29 | 4148300000 | ||
| 2 | 500 | 29 | 4148300001 | ||
| 3 | 800 | 28 | 4148300002 | ||
| 4 | 1000 | 28 | 4148300003 | ||
| 5 | 1200 | 27 | 4148300004 | ||
| 6 | 1600 | 27 | 4148300005 | ||
| 7 | 2400 | 26 | 4148300006 | ||
| 8 | 3200 | 25 | 4148300007 | ||
| 9 | 4000 | 24 | 4148300008 | ||
| 10 | 400 | 24 | 4148300009 | ||
| 11 | 800 | 23 | 4148300010 | ||
| 12 | 600 | 27 | 4148300011 | ||
| 13 | 1200 | 24 | 4148300012 | ||
| 14 | 2000 | 24 | 4148300013 | ||
| 15 | 2400 | 24 | 4148300014 | ||
| 16 | 2700 | 24 | 4148300015 | ||
| 17 | 400 | 35 | 4148300016 | ||
| 18 | 800 | 34 | 4148300017 | ||
| Chisel Bit Integral Drill Steel | |||||
| Shank 22 x 108 mm (7/8” x 4 1/4”) | |||||
| Length (mm) | Bit Diameter (mm) | PN. | |||
| 1 | 400 | 24 | 4148300018 | ||
| 2 | 400 | 29 | 4148300019 | ||
| 3 | 600 | 27 | 4148300020 | ||
| 4 | 800 | 23 | 4148300021 | ||
| 5 | 800 | 28 | 4148300022 | ||
| 6 | 1200 | 23 | 4148300023 | ||
| 7 | 1600 | 27 | 4148300024 | ||
| 8 | 2000 | 28 | 4148300025 | ||
| 9 | 2400 | 26 | 4148300026 | ||
| 10 | 3200 | 25 | 4148300027 | ||
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
