Home > Products > Integral Rod > Chisel Bit Integral Drill Stell For Stone Quarry
Chisel Bit Integral Drill Stell For Stone Quarry
- Tianjin Port Huangpu Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Integral equipment Integral bar Hex19 taper rod and Hex22 integral drill rods
-
Hex Integral drill rods
-
800mm, 1600mm, 2400mm High performance Integral drill steell/chisel bit Integral drill rod
-
molybdenum plug hole drill steel /drill bits hex shank
-
H22 H25 integrator rod 108mm Shank drill rod break/stone breaking tools
-
Integral Drill Rod hex 22 108 steel integral drill rod
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Integral Drill Rod | Type | Drill Pipe | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Other, Ore Mining, small hole drilling tools, surface mining and underground mining |
Product Description
Integral Drill Rod
Integral drill rod or integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling.
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 19mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.
Basic Information:
Product Name: | Integral Drill Rod |
Shank | Shank 19mm x108mm, Shank22x108mm |
Diameter | 29mm-41mm |
Length | 400mm-8000mm |
Material: | High strength alloy steel |
Type | Chisel bit integral rod, Plug hole integral rod |
Color | Black or based on customer requirements. |
MOQ: | No MOQ required for testing and trial order |
H19- Chisel Bit Integral Drill Steel
Shank 19 x108mm
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 29 | 1.3 | 4148300000 |
| 500 | 1 2/3 | 29 | 1.5 | 4148300001 |
| 800 | 2 5/8 | 28 | 2.2 | 4148300002 |
| 1000 | 3 2/7 | 28 | 2.6 | 4148300003 |
| 1200 | 4 | 27 | 3 | 4148300004 |
| 1600 | 5 1/4 | 27 | 3.9 | 4148300005 |
| 2400 | 7 7/8 | 26 | 5.7 | 4148300006 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300007 |
| 4000 | 13 1/8 | 24 | 9.2 | 4148300008 |
| 400 | 1 1/3 | 24 | 1.3 | 4148300009 |
| 800 | 2 5/8 | 23 | 2.2 | 4148300010 |
| 600 | 2 | 27 | 1.7 | 4148300011 |
| 1200 | 4 | 26 | 3 | 4148300012 |
| 2000 | 6 5/9 | 24 | 4.8 | 4148300013 |
| 2400 | 7 7/8 | 24 | 5.7 | 4148300014 |
| 2700 | 8 6/7 | 24 | 6.3 | 4148300015 |
| 400 | 1 1/3 | 35 | 1.3 | 4148300016 |
| 800 | 2 5/8 | 34 | 2.2 | 4148300017 |
H19-Chisel Bit Integral Drill Steel
Shank 22 x108mm
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 24 | 1.5 | 4148300018 |
| 400 | 1 1/3 | 29 | 1.5 | 4148300019 |
| 600 | 2 | 27 | 1.7 | 4148300020 |
| 800 | 2 5/8 | 23 | 2.3 | 4148300021 |
| 800 | 2 5/8 | 28 | 2.3 | 4148300022 |
| 1200 | 4 | 23 | 3.2 | 4148300023 |
| 1600 | 5 1/4 | 27 | 4 | 4148300024 |
| 2000 | 6 5/9 | 28 | 5 | 4148300025 |
| 2400 | 7 7/8 | 26 | 5.8 | 4148300026 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300027 |
H19-Plug Hole Integral Drill Steel
Shank 19 x108mm
Plug-hole drill steels are used for splitting and squaring stone blocks.
| Length (mm) | Bit Dia. (mm) | Length (mm) | Weight kg | Part Number |
| 210 | 17 | 150 | 0.7 | 4148300028 |
| 210 | 20 | 150 | 0.7 | 4148300029 |
| 210 | 22 | 150 | 0.7 | 4148300030 |
| 260 | 20 | 200 | 0.8 | 4148300031 |
| 260 | 22 | 200 | 0.8 | 4148300032 |
| 310 | 22 | 250 | 0.9 | 4148300033 |
| 340 | 20 | 280 | 1 | 4148300034 |
H22-Chisel Bit Integral Drill Steel
Shank 22 x108mm
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 800 | 2 5/8 | 34 | 3 | 4148300035 |
| 1600 | 5 1/4 | 33 | 5.2 | 4148300036 |
| 2400 | 7 7/8 | 32 | 8 | 4148300037 |
| 3200 | 10 1/2 | 31 | 10.2 | 4148300038 |
| 4000 | 13 1/8 | 30 | 12.9 | 4148300039 |
| 4800 | 15 3/4 | 29 | 15.1 | 4148300040 |
| 5600 | 18 3/8 | 28 | 17.6 | 4148300041 |
| 6400 | 21 | 27 | 20.1 | 4148300042 |
| 7200 | 23 5/8 | 26 | 22.5 | 4148300043 |
| 800 | 2 5/8 | 40 | 3 | 4148300044 |
| 1600 | 5 1/4 | 39 | 5.2 | 4148300045 |
| 2400 | 7 7/8 | 38 | 8 | 4148300046 |
| 3200 | 10 1/2 | 37 | 10.2 | 4148300047 |
| 4000 | 13 1/8 | 36 | 12.9 | 4148300048 |
| 4800 | 15 3/4 | 35 | 15.1 | 4148300049 |
| 5600 | 18 3/8 | 34 | 17.6 | 4148300050 |
| 6400 | 21 | 33 | 20.1 | 4148300051 |
| 7200 | 23 5/8 | 32 | 22.5 | 4148300052 |
| 8000 | 26 1/4 | 31 | 25 | 4148300053 |
| 400 | 1 1/3 | 34 | 1.7 | 4148300054 |
| 800 | 2 5/8 | 33 | 3 | 4148300055 |
| 1200 | 4 | 32 | 4.1 | 4148300056 |
| 1600 | 5 1/4 | 31 | 5.2 | 4148300057 |
| 2000 | 6 5/9 | 30 | 6.7 | 4148300058 |
| 600 | 2 | 41 | 2.4 | 4148300059 |
| 1200 | 4 | 40 | 4.3 | 4148300060 |
| 1800 | 6 | 39 | 6.2 | 4148300061 |
| 2400 | 7 7/8 | 38 | 8 | 4148300062 |
| 400 | 1 1/3 | 41 | 1.7 | 4148300063 |
| 800 | 2 5/8 | 29 | 3 | 4148300064 |
| 800 | 2 5/8 | 38 | 3.1 | 4148300065 |
| 1200 | 4 | 39 | 4.3 | 4148300066 |
| 1600 | 5 1/4 | 36 | 5.2 | 4148300067 |
| 1800 | 6 | 36 | 6 | 4148300068 |
| 2000 | 6 5/9 | 32 | 6.7 | 4148300069 |
| 2400 | 7 7/8 | 27 | 8 | 4148300070 |
| 3200 | 10 1/2 | 27 | 10.2 | 4148300071 |
| 3200 | 10 1/2 | 32 | 10.3 | 4148300072 |
| 6400 | 21 | 30 | 20.1 | 4148300073 |
| 8000 | 26 1/4 | 26 | 25 | 4148300074 |

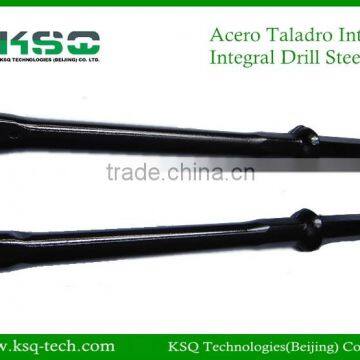

Product Pictures:
(1) Kindly please inform us the shank, Bit diameter and effective length or inform KSQ Part Number
(2) Shank Type:
Shank 19mm x 108mm
Shank 22mm x108mm
(3) Effective Length:
(4)Can design and manufacture the personalized products to meet your specical application.
Packaging & Shipping
1. Carton or wooden box
2. Package pictures
Factory View:
Fair&Clients visit:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Please feel free to contact us at any time, we will be always here for supporting you!
Skype: alice. zhang1106
Whatsapp:+86-18201011129
