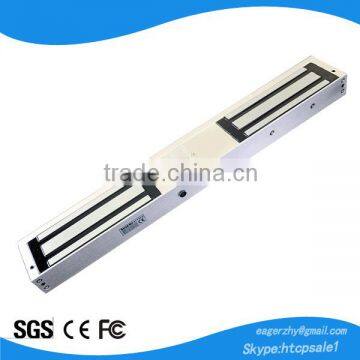

500kgx2/1200Lbsx2 LED and Time Setting Double Door Aluminum Sliding Door Lock
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Techcrepower | |
| Model Number | EL-500TD(LED) Time Setting Double Door Aluminum Sliding Door Lock |
Product Description
500kgx2/1200Lbsx2 LED & Time Setting Double Door Aluminum Sliding Door Lock
Introduction:
YM-500TD(LED) double door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door. Inbuilt time delay mould and can set up 0,3,6,9sec .It is suitable for the card reader which is without time delay.
Specifications:
| Product Parameter | Parameter Description |
| Size | 530Lx71.8Wx38.8H(mm) |
| Armature plate | 185Lx60Wx13H(mm) |
| Holding Force | 500kgx2(1200Lbsx2) |
| Voltage | 12 or 24VDC |
| Current Draw | 12V/420mA*2 or 24V/210mA*2 |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| Time | 0/3/6/9sec. |
| LED | Red indicates the door is unlock,Green indicates the door is lock |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 9.0kg |
Advantage:
Collinear Load Test 500x2kg,1200x2pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China PublicSecurity Office.
