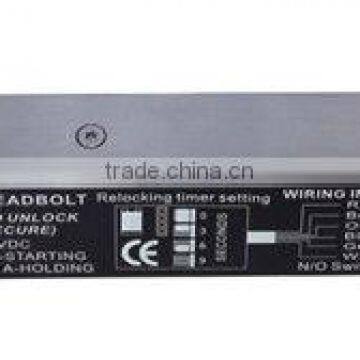

Fail safe electric bolt W/signal, time, 4 wires
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ----- | |
| Model Number | EL-700A |
Product Description
Introduction:
EL-700A is a fail safe electric bolt suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design.
Specifications:
| Fail Safe | Locked when energized |
| Face Plate | 205Lx30WX38H (mm) |
| Strike | 100Lx25Wx3H(mm) |
| Bolt | 17mmDIA,stainless steel 16mm throw |
| Voltage | DC12V +10% |
| Start Current | 900mA |
| Standby Current | 150mA |
| Solid Bolt | Polishing housing, 2000Kg Holding Force |
| Suitable For | Wooden Door,Glass Door,Metal Door |
| Autolock Time Delay | 0,3,6,9sec |
| Signal Output | Door status Output,NC/COM |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10~+55°C(14~131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 operations |
| Face place material | Stainless Steel |
| Weight | 1kg |
Features:
Low Temperature, safe & Durable
Low Power, Environmental Protection
Special photoelectricity control, three steps current application
Long Life with 500000 Operations
MOV Provides Reverse Current Protection
Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt
Autolock Time Delay: 0,3,6,9sec.
Door statue signal output contact (NC.COM)
Double protection for loading current
Auto-relock if no Action within 5 secs
Certificate: CE&MA
Photoelectricity Control, Low Temperature
A: The Low Current is Changed immediately
B: When door frame doesnt coincide with door
leaf, door leaf against the bolt, then the electric
bolt will start the low-power function to bring
low temperature
C: The Photoelectricity Control Technology
prevent the mechanical defect
