High capacity rice husk rice straw pellet machine line
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | FDSP | Model Number | MZLH | |
| Voltage | 380/400/415v | Power(W) | According to the model | |
| Dimension(L*W*H) | According to the model | Weight | According to the model | |
| Certification | CE ISO SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

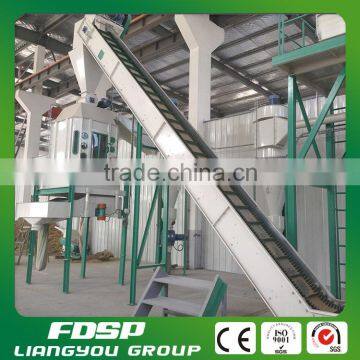

High capacity rice husk rice straw pellet machine line
Item | Complete wood pellet production line |
Suitable Raw Material | wood, sawdust, sugar cane, bamboo, rice husk, grass, straw, etc, and some special raw materials like rubber, clay and plastic as well.. |
After-sale guarantee | One year warranty and all around after-sale service. |
Technical Parameters | - Capacity: 0.5t/h-30t/h or even more - Dimensions: Designed according to specific requirements - Power consumption: would be listed in the quotation, actual consumption is 20-30% lower than theory. |
Features | - Top technology with national patent - Customized design and reasonable price. - Non-dust workshop with experienced engineers. - Main machines adopt Siemens motor and imported SKF/NSK bearing. - PLC control(Siemens) and Schneider or Soft Starter electric control system. - Long service time and stable operation. - Guide installation and commissioning is available. |
Packing Details | Iron case or iron pallet etc |
MOQ | 1 Set |
Payment | L/C, T/T, Western Union, Money Gram as client require |
Warranty | 1 year |
Complete Pellet production line process:
(a) Peeling Process
Wood debarker machine is applicable to peel the log of MDF board and papermaking industry, it is mainly used to peel log, small wood and so on, the peeled rate is more than 95 percent.
(b)Chipping Process
In the pellet plant before raw materials are made into biomass pellets, they are
first reduced into much smaller, uniformly-sized particles. When the thicknedd is larger than 10mm or the size is greater than 50*50mm, a chippper is needed to chip these materials into smaller pieces.
(c)Grinding Process
The hammer mill is used to further crush these small pieces into particles of less than 3mm in diameter.
(d)Drying Process
After raw materials are crushed a dryer is needed since most raw wood materials have a moisture content of about 50%. However, the optimal moisture content for pelletiztion is 13%-15%. Therefore a rotary dryer is included in the pellet plant to reduce the
moisture content. After crushing and drying you can begin making wood pellets.
(e)Pelletizing Process
After crushing and drying the raw material properly it is then ready for the pellet mill.
The pelletizing machine or press is the key piece of machinery in the pellet plant.
It should be mentioned that impurities in the raw materials like metal or stone,may
damage the die and rollers of pellet making machine.
(f)Cooling Process
Usually after pelletizing, the temperature of pellets is between 60-80 degrees and the moisture content is close to 15%. For storage purpose, a cooler must be used to reduce their surface temperature and moisture content.
(g)Packing Process
Finally is the packing process. In order to protect the wood pellets becoming getting
damp and to increase storability, proper packing is necessary.
Packaging: Depending on customers' requirement,such as Steel Frame or Iron crate etc.
Shipping: Our shipping operator and delivering equipments will be ready on time to ensure
goods shipped based on Sales Order requirement.
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Why choose us?
Advantages we have:
Experienced biomass and feed pellet line related supplier for over 23 years.
- Professional sales and engineers team for your service.
High quality as all of the products have approved CE&ISO9001&SGS certifications
- Use most up-to-date CNC Machine Center to ensure the quality standards.
Already supplied over 1,550 turn-key projects with great satisfaction.
FDSP - is a qualified manufacturer which specializes in developing, producing and marketing top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer, drum dryer, wood
chipper, packing Machine etc. []
(1) More than 23 years'experience in biomass and feed pellet production field.
(2) Approved ISO9001 and international certificate: CE , ISO and SGS.
(3) 9 years golden Supplier in Alibaba.
(4) Exported to over 50 countries and finished more than 1000 turn-key projects.
(5) Specialized in designing, researching, developing, manufacturing and exporting.
Our certificates and honours:
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.
2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.
3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.
4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.
5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
