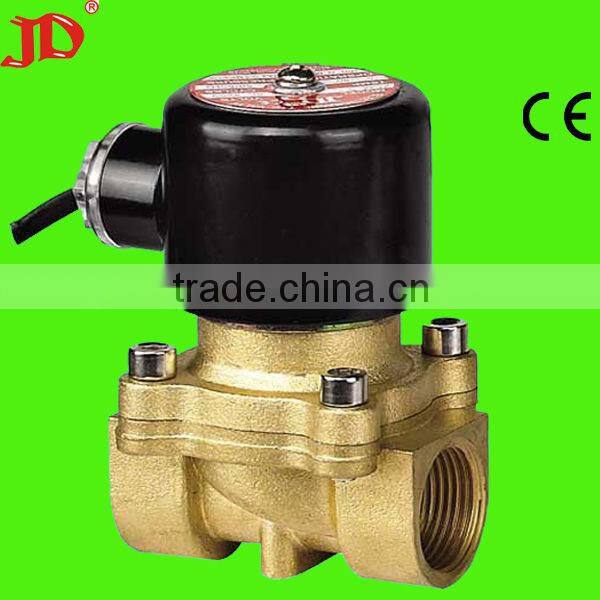

(hot Air Valve)12v Gas Solenoid Valve(valves Solenoid)
Negotiable
/ Set
1 Set(Min. Order)
- zhongshan
- Credit Card
You May Like
-
(solenoid Valve 12v)fuel Gas Valve Diaphragm (Ipg Gas Valve)
-
(solenoid Valve Gas)oil Gas Valve(gas Valve for Gas Stove)
-
(12v Fuel Solenoid Valve)fuel Gas Valve(quick Acting Solenoid Valve)
-
(manual Modulating Valve)gas Burner Safety Valve(valve Gas)
-
(burner Valve)12v Gas Solenoid Valve(solenoid Valve 12v Ac)
-
(valve for Gas)solenoid Valve for Boiler(fast Opening and Fast Closing)
Product Details
| Standard or Nonstandard | Standard | Structure | Diaphragm | |
| Pressure | Low Pressure | Power | Other, electricity | |
| Material | Other, brass | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | 15mm | |
| Place of Origin | Guangdong, China | Model Number | ZCM-15 | |
| Brand Name | jiada |
Product Description
Specifications
1.Competitive price2.Good after sell service
3.Wide application
4.Main market: China
5.Low power consumption
1. Product introduction
ZCM series gas valve is normally closed suspension type diaphragm solenoid valve, when the coil with power,electromagnetic power suck up iron core, pull small valve and diaphragm,make the valve gate open:when cut off the power, electromagnetic power disappear,move iron core shift down to close the valve gate.Normal open type and normal close type princeple opposite.
| model number | Diameter (mm) | technical parameter | outside measurement | attended mode | Body Material | |||
| long | high | |||||||
| ZCM-15 | 15 | Pressure difference:0~0.1MPa Working medium:liquid gas,natural gas,coal gas,gas. Fluid temperature:0~60°C Power supply:AC220V | 60 | 98 | internal thread G1/2" | bronze | ||
| ZCM-20 | 20 | 65 | 100 | internal thread G3/4" | ||||
| ZCM-25 | 25 | 88 | 108 | internal thread G1" | ||||
| ZCM-25AB | 25 | Pressure difference:0~0.02MPa | 88 | 108 | internal thread G1" | |||
| ZCM-32 | 32 | Pressure difference:0~0.1MPa Working medium:liquid gas,natural gas,coal gas,gas. Fluid temperature:0~60°C Power supply:AC220V | 104 | 120 | internal thread G1 1/4" | |||
| ZCM-40 | 40 | 120 | 165 | internal thread G1 1/2" | ||||
| ZCM-50 | 50 | 145 | 190 | internal thread G2" | ||||
| ZCM-65 | 65 | 240 | 340 | flange 4-Φ17*Φ145 | cast iron | |||
| ZCM-80 | 80 | 225 | 355 | flange 4-Φ17*Φ160 | ||||
| ZCM-100 | 100 | 325 | 400 | flange 8-Φ17*Φ180 | ||||
| ZCM-125 | 125 | 390 | 460 | flange 8-Φ18*Φ210 | ||||
| ZCM-150 | 150 | 460 | 520 | flange 8-Φ22*Φ240 | ||||
As a professional solenoid valve manufacturer, we are engaged in researching, developing, manufacturing and selling various solenoid valves, mainly products are fuel reducing pressure Solenoid Valve, VM gas valve, VS gas valve. pulse electromagnetic valve. ZCT Direct acting Solenoid Valve, ZCT Pilot Based Diaphragm Solenoid Valve, MQF Fuel Gas Solenoid Valve, DF3 2 Position Solenoid Valve, 2W Direct Acting Solenoid Valve, and so on. We can design solenoid valves according to clients' requirement, from size to function, solenoid valves for gas, water, Co2, air, etc. 2 way solenoid valves, 3 way solenoid valve, or even more. 12v solenoid valve, 24v solenoid valve, a full range of voltage types for you. More new solenoid valves can be found from our website.
2.Using and mounting
a)Senoid valve should be mounted in horizontal. That is coil part must up vertical.
b)The arrow direction of the valve body should the same as the medium direction
c)The pipeline and medium should clean. If not it maybe blocking the inlet hole,it may lead to the valve can not normal work, and then we should mount filter net.
d)If the solenoid valve appear not open or not close, please open valve deck. Check the diaphragm breach or not, if good, please thorough clean the oil contamination of armature and diaphragm,the movable part can move freely.
3.Noting
a)When clean or mend the solenoid valve, must turn off the power before strike the armature.
b)The air medium must clean.
