Home > Products > gas solenoid valve > (copper valve)12v gas solenoid valve(normally open valve)

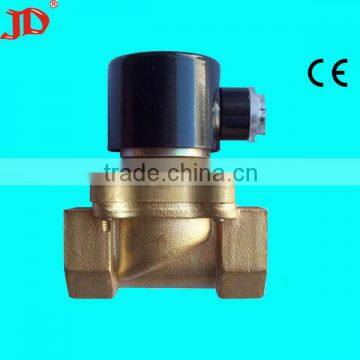

(copper valve)12v gas solenoid valve(normally open valve)

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port zhongshan
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Diaphragm
Pressure	Low Pressure	Power	Other, electricity
Material	Other, brass	Temperature of Media	Medium Temperature
Media	Gas	Port Size	25mm
Place of Origin	Guangdong, China	Model Number	ZCM-25
Brand Name	jiada

Product Description

Specifications

1.Competitive price
2.Good after sell service
3.Wide application
4.Main market: China
5.Low power consumption

Product specification

ZCM series gas valve is normally closed suspension type diaphragm solenoid valve, when the coil with power,electromagnetic power suck up iron core, pull small valve and diaphragm,make the valve gate open:when cut off the power, electromagnetic power disappear,move iron core shift down to close the valve gate.Normal open type and normal close type princeple opposite.

model number	Diameter (mm)	technical parameter	outside measurement		attended mode	Body Material
model number	Diameter (mm)	technical parameter	long	high	attended mode	Body Material
ZCM-15	15	Pressure difference:0~0.1MPa Working medium:liquid gas,natural gas,coal gas,gas. Fluid temperature:0~60°C Power supply:AC220V	60	98	internal thread G1/2"	bronze
ZCM-20	20		65	100	internal thread G3/4"
ZCM-25	25		88	108	internal thread G1"
ZCM-25AB	25	Pressure difference:0~0.02MPa	88	108	internal thread G1"
ZCM-32	32	Pressure difference:0~0.1MPa Working medium:liquid gas,natural gas,coal gas,gas. Fluid temperature:0~60°C Power supply:AC220V	104	120	internal thread G1 1/4"
ZCM-40	40		120	165	internal thread G1 1/2"
ZCM-50	50		145	190	internal thread G2"
ZCM-65	65		240	340	flange 4-Φ17*Φ145	cast iron
ZCM-80	80		225	355	flange 4-Φ17*Φ160
ZCM-100	100		325	400	flange 8-Φ17*Φ180
ZCM-125	125		390	460	flange 8-Φ18*Φ210
ZCM-150	150		460	520	flange 8-Φ22*Φ240

As a professional solenoid valve manufacturer, we are engaged in researching, developing, manufacturing and selling various solenoid valves, mainly products are fuel reducing pressure Solenoid Valve, VM gas valve, VS gas valve. pulse electromagnetic valve. ZCT Direct acting Solenoid Valve, ZCT Pilot Based Diaphragm Solenoid Valve, MQF Fuel Gas Solenoid Valve, DF3 2 Position Solenoid Valve, 2W Direct Acting Solenoid Valve, and so on. We can design solenoid valves according to clients' requirement, from size to function, solenoid valves for gas, water, Co2, air, etc. 2 way solenoid valves, 3 way solenoid valve, or even more. 12v solenoid valve, 24v solenoid valve, a full range of voltage types for you. More new solenoid valves can be found from our website.

Using and mounting

a)Senoid valve should be mounted in horizontal. That is coil part must up vertical.

b)The arrow direction of the valve body should the same as the medium direction

c)The pipeline and medium should clean. If not it maybe blocking the inlet hole,it may lead to the valve can not normal work, and then we should mount filter net.

d)If the solenoid valve appear not open or not close, please open valve deck. Check the diaphragm breach or not, if good, please thorough clean the oil contamination of armature and diaphragm,the movable part can move freely.

Noting

a)When clean or mend the solenoid valve, must turn off the power before strike the armature.

b)The air medium must clean.
