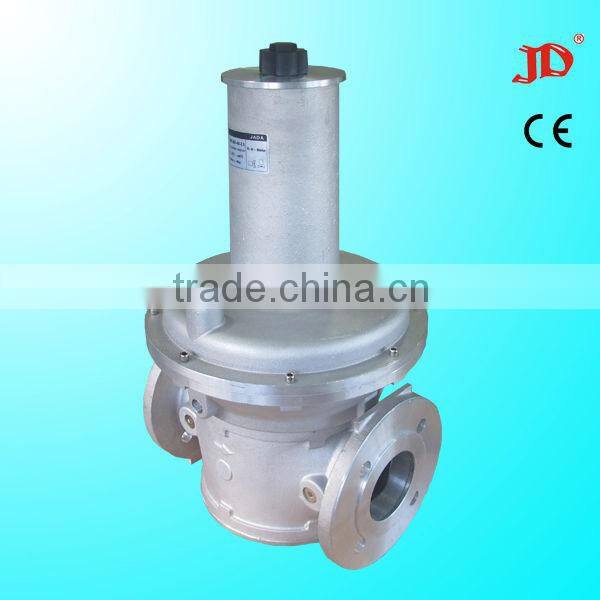

(valve Diaphragm) Pressure Reducing Valve 4bar(pressure Relief Valve)dn65
Negotiable
/ Set
1 Set(Min. Order)
- zhongshan
- Credit Card
You May Like
-
(solenoid Valve Diaphragm) Pressure Reducing Valve(pressure Relief Valve)
-
(China Relief Valve) Fuel Pressure Holding Valve(pressure Relief Valve)
-
(China Relief Valve)low Pressure Relief Valve(pressure Relief Valve)
-
(China Relief Valve)air Pressure Relief Valve(pressure Relief Valve)
-
(China Relief Valve)pressure Reduce Valve(pressure Relief Valve)
-
(China Relief Valve)gas Pressure Reduce Valve(pressure Relief Valve)VDF-65F-40-3
Product Details
| Standard or Nonstandard | Standard | Structure | Diaphragm | |
| Pressure | Low Pressure | Power | Other, electricity | |
| Material | Alloy | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | 65mm | |
| Place of Origin | Guangdong, China | Model Number | VDF-65F-40-3 | |
| Brand Name | Jiada |
Product Description
Product specification:
| Model | drift diameter | pressure | Overall dimension | Connect dimension | Material | ||
| length | width | highth | |||||
| VDF-65 | 65 | inlet pressure 4bar,outlet pressure:40mbar to 80mbar | 310 | 310 | 546 | 4-Ø18 X Ø145 | aluminum alloy |
| VDF-80 | 80 | inlet pressure 4bar,outlet pressure:40mbar to 80mbar | 310 | 310 | 546 | 8-Ø18 X Ø160 | |
Working medium:natural gas, air,city gas, noncorrosive gas.
As a professional solenoid valve manufacturer, we are engaged in researching, developing, manufacturing and selling various solenoid valves, mainly products are VM series gas Solenoid Valve, VS series gas solenoid valve, fuel reducing pressure valve, pulse solenoid valve, ZCT Direct acting Solenoid Valve, ZCT Pilot Based Diaphragm Solenoid Valve, MQF Fuel Gas Solenoid Valve, DF3 2 Position three way Solenoid Valve, 2W Direct Acting Solenoid Valve, and so on. We can design solenoid valves according to clients' requirement, from size to function, solenoid valves for gas, water, Co2, air, etc. 2 way solenoid valves, 3 way solenoid valve, or even more. 12v solenoid valve, 24v solenoid valve, a full range of voltage types for you. More new solenoid valves can be found from our website.
