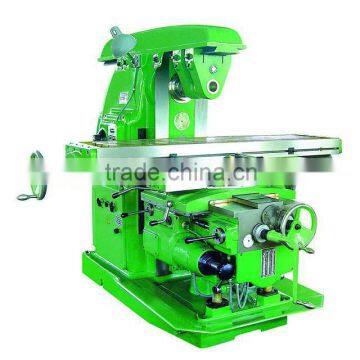

Universal horizontal milling & drilling machine

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	lecroy	Model Number	X6140
Type	Horizontal	CNC or Not	Normal
Voltage	customized	Power(W)	14125
Dimension(LWH)	255621591830	Weight	3850KG
Certification	ISO9001	Warranty	1year
After-sales Service Provided	Overseas third-party support available

1.Easy operate/low noise / variable speed
2.High rigidity and stability casting body
3.Perfect lubricate system
4.ISO9001

PRODUCT NAME:Universal horizontal Milling Machine X6140

SPECIFICATIONS:

Item		Units	x6140
Table	Table size	mm	400x1700/2000/2200
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	800
	Distance between T-slots	mm	90
Travel	Longitudinal travel(manual/auto)	mm	900/880,1200/1180,1380/1360
	Cross travel(manual/auto)	mm	315/300
	Vertical travel(manual/auto)	mm	380/360
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose and table surface min/max.	mm	255/570
	Distance from centre line of spindle to vertical guideway surface of column	mm	30/410
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:15-786,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	11
Motor	Power of feed motor	kw	3
Others	Overall dimensions(LxWxH)	mm	2556X2159X1830
Others	Net weight	kg	3850

Item		Units	x6140
Table	Table size	mm	400x1700/2000/2200
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	800
	Distance between T-slots	mm	90
Travel	Longitudinal travel(manual/auto)	mm	900/880,1200/1180,1380/1360
	Cross travel(manual/auto)	mm	315/300
	Vertical travel(manual/auto)	mm	380/360
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose and table surface min/max.	mm	255/570
	Distance from centre line of spindle to vertical guideway surface of column	mm	30/410
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:15-786,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	11
Motor	Power of feed motor	kw	3
Others	Overall dimensions(LxWxH)	mm	2556X2159X1830
Others	Net weight	kg	3850

STANDARD ACCESSORIES:

wrenches,drawbar,foundation bolts,nuts,

washers,oil gun, lump ,mill cutter arbors

OPTIONAL ACCESSORIES(charge separately):

deviding head, DRO(for two axis or three axis),machine vise,rotary table,mill chuck,boring cutter holder,facing cutter,vertical mill cutter,etc.

WHY CHOOSE US?

We are the MANUFACTURER of high quality milling machine with competitive price!

Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc.

The sales performance, satisfied accessories,longtime work team experience,stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts gear
