Hot Sale Small Electric Induction Melting Furnace for Non-ferrous Metal Quality Choice Supplier's Choice

FOB Price

US$ 3,500 - 30,000 / Set

1 Set(Min. Order)

Port Shanghai Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Induction Furnace
Usage	Melting Furnace	Place of Origin	Zhejiang, China
Brand Name	Superb	Model Number	MF-series
Voltage	3 Phase 380-420V 50/60Hz	Power(W)	15-160KW
Dimension(LWH)	Customized	Weight	Customized
Certification	ISO9001	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction
10- 100kg induction furnace with manual tilting
1.Based on latest IGBT with medium frequency
2. Melting capacity from 10kg to 100kg ,suitable for foundry at home.
3. Easy installation and operation.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine

Features

• Medium frequency melting furnace can be used for the melting of steel, stainless steel, brass, aluminium, lead, zinc and so on.
• Comparing with SCR/KGPS technology, IGBT technology can save 15%-30% energy and is much more efficient than gas-fired and coal-fired method.
• Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.
• The crucible replacement is very easy for different metal material.
• The occupied land for the small copper melting furnace is less than 1 square meter.
• Modular design, ease of maintenance, no need to repair any special foundations, requires low operation cost, easily operable, produces no pollution and noise.
• 24 hours constant working will meet your long time melting.

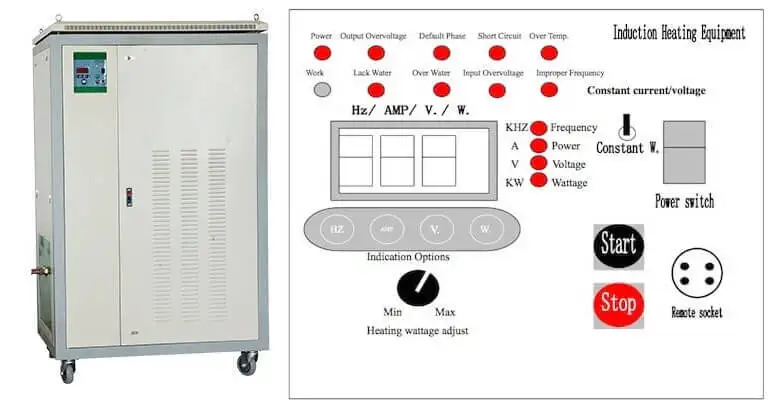

Power control panel

Parameters

Power supply parameters

Model		MF-15	MF-25	MF-35	MF-45	MF-70	MF-90	MF-110	MF-160
Max input power		15KW	25KW	35KW	45KW	70KW	90KW	110KW	160KW
Max input current		23A	36A	51A	68A	105A	135A	168A	240A
Input voltage		Three-phase 240V-420V 50/60Hz
Oscillation frequency		1-20KHz
Requirement of cooling water	Hydraulic pressure	≥0.2 Mpa		≥0.3 Mpa
	Flow rate	≥6L/Min		≥20L/Min
Temperature of cooling water		≤45℃
Generator box	Weight(KG)	28kg	29kg	52kg	52kg	57kg	91kg	99kg	134kg
	Volume(cm)	51×28×49		65×35×58			78×40×88		78×50×88
Transformer box	Weight(KG)	35kg	35kg	35kg	38kg	52kg	68kg	95kg	95kg
	Volume(cm)	62×30×53				64×48×58		64×65×58

Melting capacity parameters

Model	Fe,ss	Cu,Au,Ag	Al,Al-alloy	Model	Fe,ss	Cu,Au,Ag	Al,Al-alloy
MF-15	3kg	10kg	3kg	MF-70	25kg	80kg	25kg
MF-25	5kg	20kg	5kg	MF-90	40kg	120kg	40kg
MF-35	10kg	30kg	10kg	MF-110	50kg	150kg	50kg
MF-45	18kg	50kg	18kg	MF-160	100kg	250kg	100kg
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload.

Advantages

• 100% successful start-up rate, power factor > 95%.
• The comprehensive full load design is available for 24-hour continuous operation.
• Perfect and complete protection functions, increasing machine’s reliability & stability.
• Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
• A maximum ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.

Quality Assurance

How we control the quality

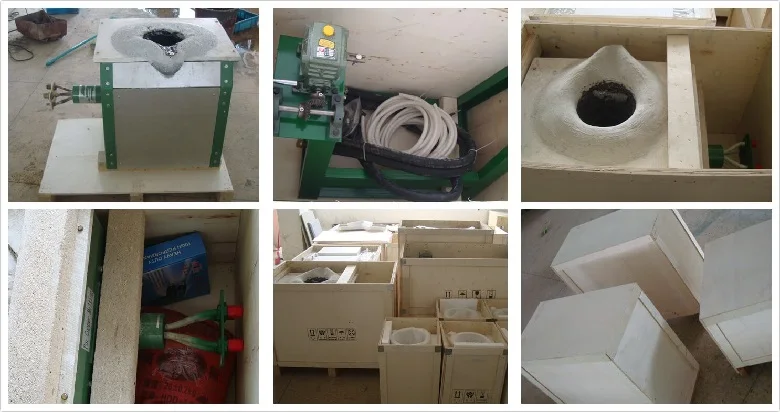

Packaging & Shipping

FAQ

1. What is your advantage to choose Superb melting system?
As one of top suppliers in the induction field over 15 years,the machine’s stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.

2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.

3. what is your warranty?
Our all machines’ standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
