12000L Double Screws Conical Mixing Machine
- Guangzhou Shenzhen Foshan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Mixer Type | Screw | |
| Product Type | Other, chemical, pharmaceutical, pesticides, dyes | Application | Powder | |
| Additional Capabilities | Milling | Place of Origin | Guangdong, China | |
| Brand Name | JCT-screw mixer | Model Number | DSH-screw mixer | |
| Max. Loading Capacity | 15000 | Voltage | 380v | |
| Power(W) | 45kw | Dimension(L*W*H) | 500*800*1000~2000*3000*5000 | |
| Certification | ISO, CE, SASO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

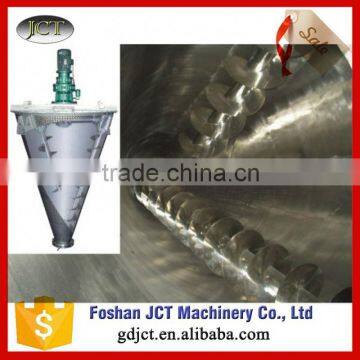

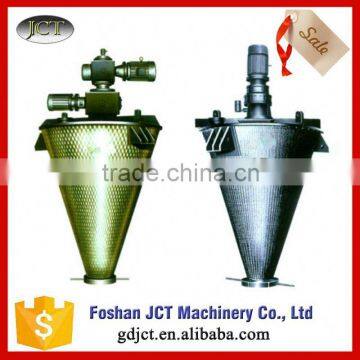

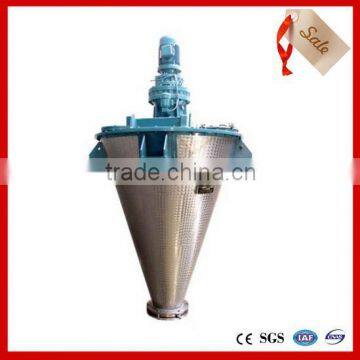

12000L Double screws conical mixing machine
1. INTRODUCTION OF Double screws conical mixing machine
Twin-screw cone mixer is a new and efficient mixing equipment, especially for powder mixing. Widely use for Chemicals, pharmaceuticals, pesticides, fertilizers, dyes, metallurgy, mining, food, monosodium glutamate, feed and other industries. Suitable for solid - solid (powder and powder) mixing, solid - liquid (powder and liquid) mixing.
1. Mixing Method: Standard Twin-screw cone mixer has two stirring spirals. According to the requirements for production, you can choose single spiral (one long spiral), double spirals (a long and a short asymmetrical spirals) and three spirals (two short and one long symmetrical spirals).
2. Cooling and Heating System: Can equip with outer jacket for heating or cooling. Usally use water for cooling, steam/ thermal oil/ electric for heating.
3. Liquid-adding Mixing: Install liquid jet pipeline in the intermediate shaft of the mixer, connect the atomizing nozzle, which can adding liquid into the mixer; By selecting a specific material, you can add the acid and alkaline liquid material into the powder for mixing.
Double screws conical mixing machine
Double screws conical mixing machine
Double screws conical mixing machine
2.APPLICATION OF Double screws conical mixing machine
3.TECHNICAL PARAMETER
Model | Volume (L) | Power | Mixing Time (r/min) | Specification (mm) | Weight (kg) |
DSH-200 | 200 | 2.2 | 6-10 | Φ890*1850 | 600 |
DSH-500 | 500 | 2.2 | 6-10 | Φ1160*2250 | 800 |
DSH-10000 | 10000 | 4 | 8-10 | Φ1450*2700 | 1200 |
DSH-20000 | 20000 | 5.5 | 8-10 | Φ1850*3450 | 1800 |
DSH-40000 | 40000 | 11 | 8-10 | Φ2260*4210 | 3000 |
Double screws conical mixing machine
Double screws conical mixing machine
Q: Can you send the formula for the products we want to make?
A: Our machines can be used for many kinds of product making, such as Resin, Paint, Adhesive, Cosmetic, Food, Chemicals. There are many kinds of these products, so it's impossible for us to know all the formulas and technologies. We can assist you to find the raw material list you need, and after you place order with us, we can help you to find formula and technology, there will be engineers to teach you how to make the product, and the cost will be on your account.
Q: Do you have machines in stock?
A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.
Q: Can you send the detailed drawings of the machine to us before we place order?
A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters fo you and send you the detailed drawings. Once you confirm without questions, we will put it into production.
Q: Why does it take at least 20 days to finish the machine?
A: Once receipt the deposit from you, we will design the drawings and make out the list of the materials and accessories for the production. Once the drawings are finished, our workers will start the production, from welding, polishing, assembling, debugging, detection and so on. After finish, they need time to check the machines, if found any possible defect parts, they will return to the production until every part is 100% approved.
Q: Can we pay the balance after we receive the machines and test without problems?
A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
Q: If you price is higher than the suppliers for the products that are not made by you?
A: We can provide the whole production lines, which include many facilities and accessories(like Oil furnace, steam boiler, etc). It's impossible for us to make everyone of them, because we just make the main machines. However, based on our great reputation in the business, and also considering our huge sourcing quantity by collecting the orders from domestic and foreign customers, and our strong cash flow to pay the suppliers in advance. We can get the best offer from the suppliers. So after adding an reasonable profit for the outsourcing facilities and accessories (like Oil furnace, steam boiler, etc), we still can offer a very competitive price similar to our suppliers, or even lower in some case.
Double screws conical mixing machine
Double screws conical mixing machine
