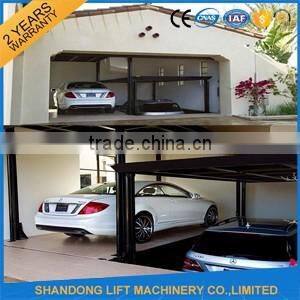

Heavy Duty Double Layers Used Home Garage Car Hydraulic Lifter

- The car hydraulic lifter can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 2 sets control system installed on the Hydraulic car lift 2 level parking lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

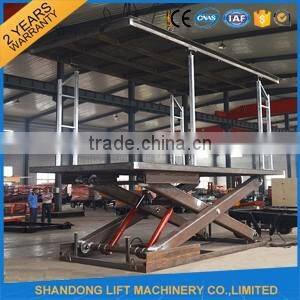

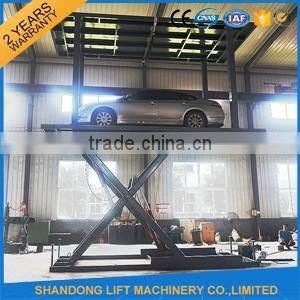

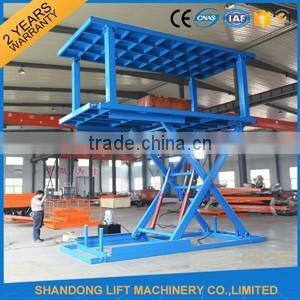

The frequent models we supplied for our clients:

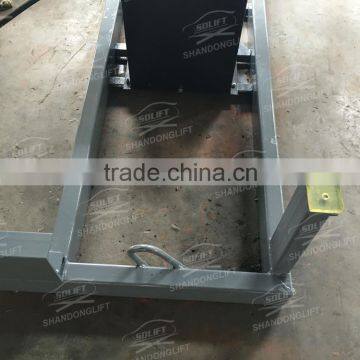

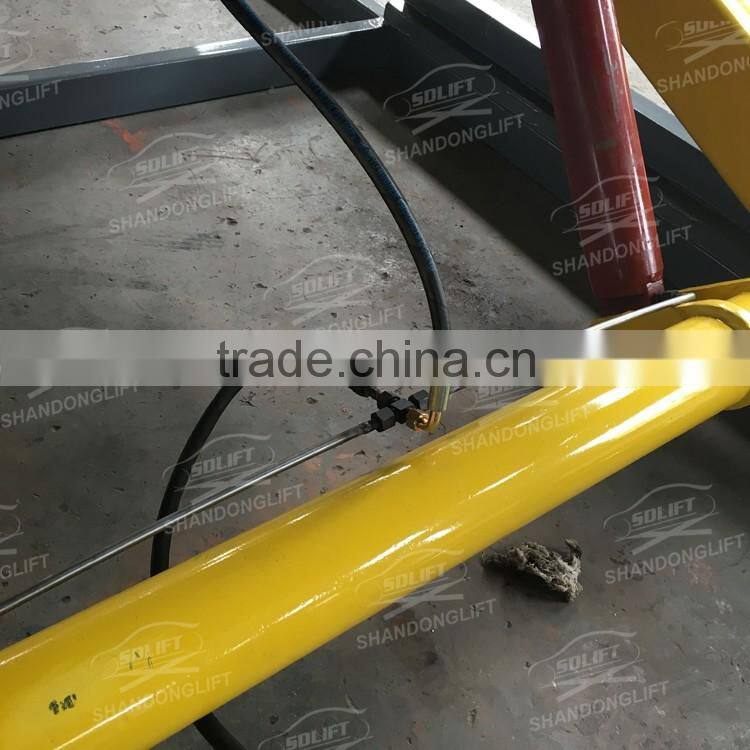

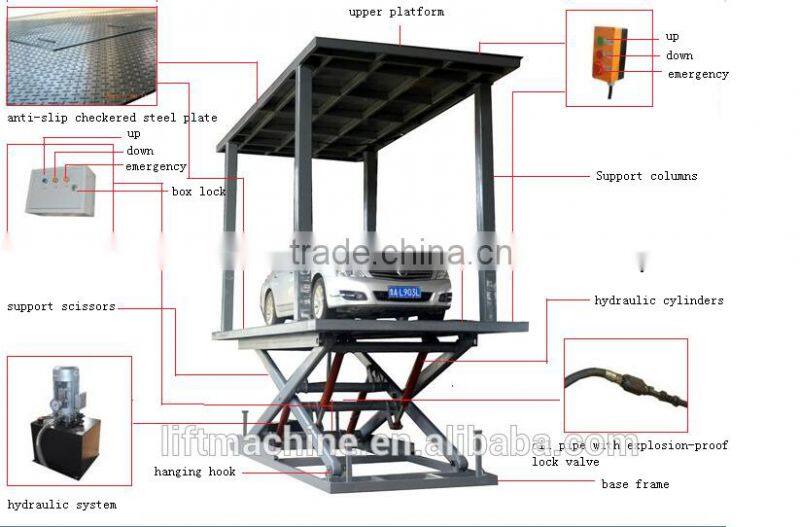

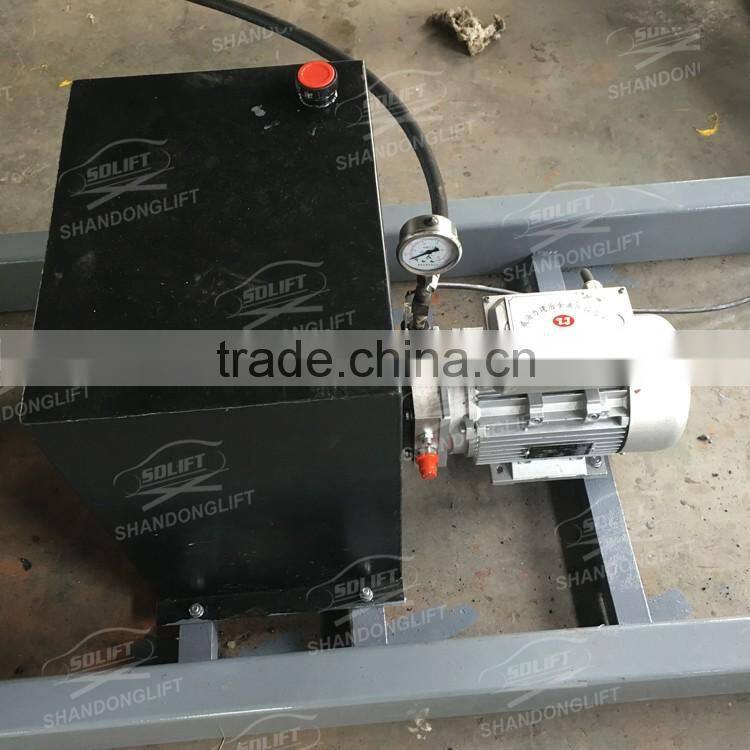

Parts showing:

Configuration:

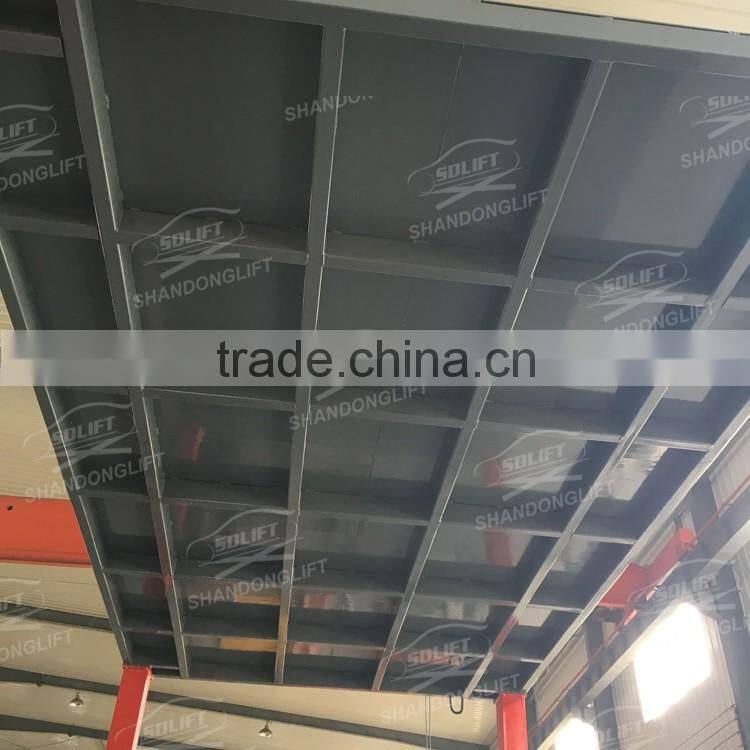

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

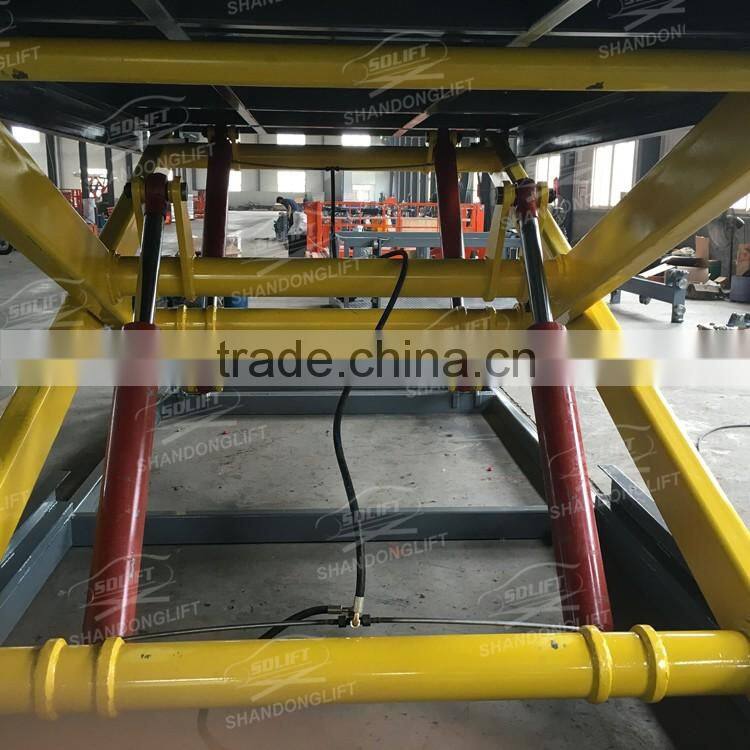

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 110*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

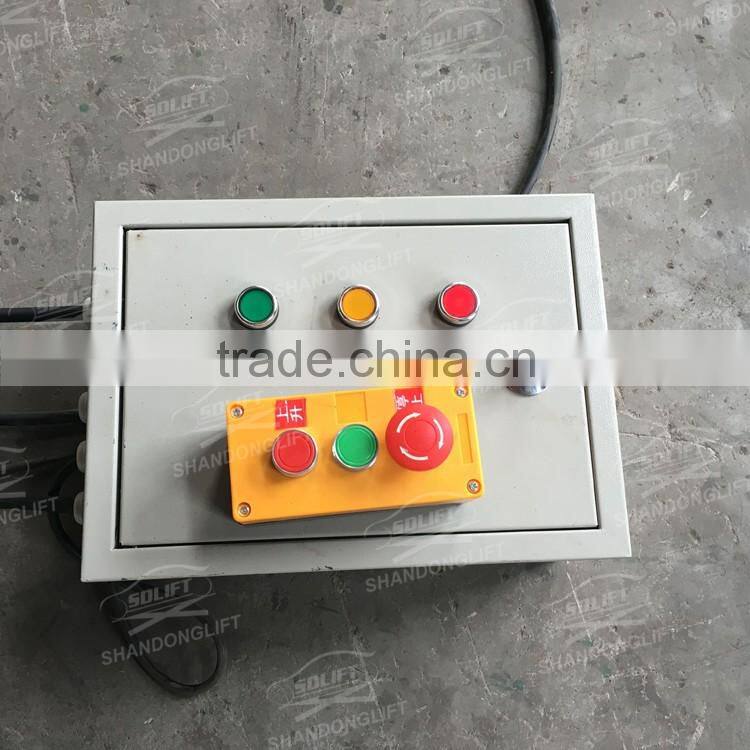

8) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the car hydraulic lifter.

3) The limit switch system helps car hydraulic lifter to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the car hydraulic lifter are passed 1.2 times loading test before leaving factory.

The workshops:
