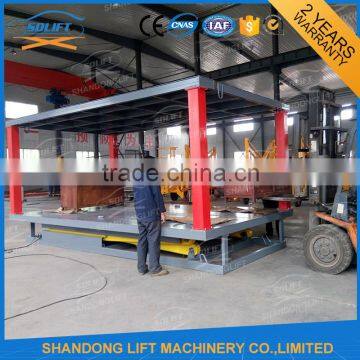

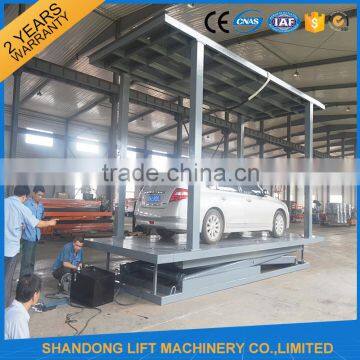

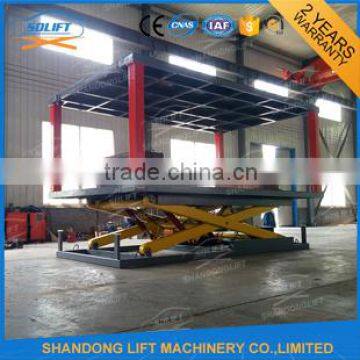

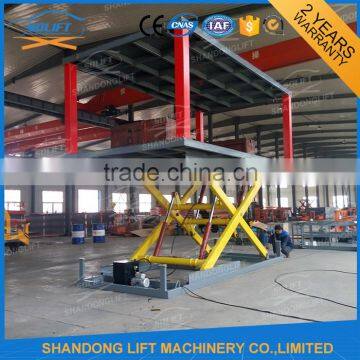

car home hydraulic double parking lift

Shandong Lift Machinery 2 Years Warranty

car home hydraulic double parking lift:

 Application:

 ·This kind of double parking car lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

 ·Operation is easy. There are 2 sets control system installed on the lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

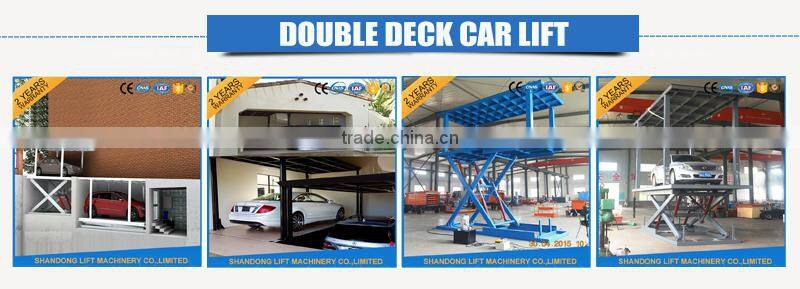

 The frequent models we supplied for our clients:

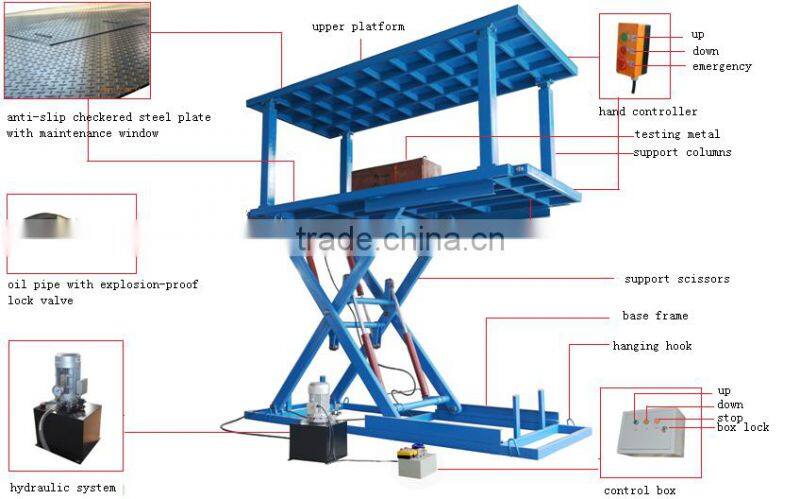

Parts Showing:

Configuration:

1) Load capacity: 3000kgs (below platform)
                            3000kgs (upper platform)
2) Platform size: 5.2m x 2.6m (below platform)
                         5.2m x 2.6m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m

5) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

6) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

7) Hydraulic system: 380V/5.5Kw

8) High Precision Hydraulic Cylinder: 110*4sets

9) Piston Rod: 80*4 hard chromium plating surface.

10) High-pressure oil pump

11) Hydraulic oil: summer 46#, winter 32#

12) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) The limit switch system helps the double parking car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on , all electric components are CE certified.
5) All the double parking car lift are passed 1.2 times loading test before leaving factory.

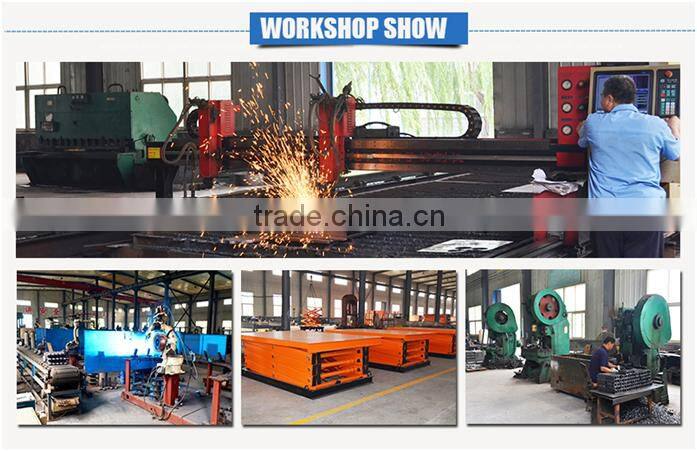

The workshops:

The Customers visiting:

 The Certificate:

Our Services

1. User-friendly English manual for machine installation using and maintenance.
2. 2 sets spare parts as additional and free for you together with lift in shipment.
3. 2 year warranty for whole machine without man-made faults.
4. We will send you parts for free if there are any non-human factors faults during warranty time.
5.  Supply 24-hours technical assistance by email, telephone or other communication online.
6.  We could reply you in 2 hours after received your any questions even on weekend and holiday.Engineers are available to your country if necessary.
