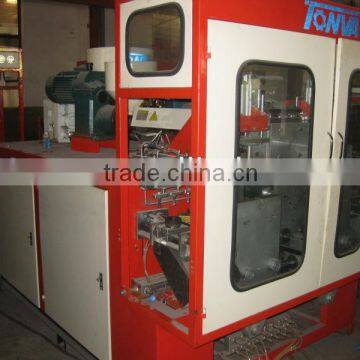

2Ltwo layer double station blow molding machine

Specifications

two layer Blow molding machine Main Characteristic:

1.  Two station, Three layer,  , PE / PP etc.

    Primary screw:65mm,7.5kw;

    secondary screw:35mm,2.2kw.

    third layer screw:35mm,2.2kw

2.  Power supply: 380VAC, 50Hz  (depending on client's county ).

3.  Different Die Head for Choosing:

      One die head (1L-2L): 2L around 300pcs per hour

      Two die head (500-1L): 1L   around 800 bottles per hour

     Three die head( under500ml):500ml around 1500 bottles per hour

 4. Center Distance: Two Die head: 160mm,    Three Die head: 100mm

 5. Auto matic Deflashing system: Neck/ handle/ bottom deflashing.Fully automatic.

 6.  MOOG 100 Points Parison Controller (Optional)

Deflashing device:

  A. one desing of deflashing(rolling  knife)

B. another desing of  deflashing(punching knife)

C. Bottom cutting

Basic working theory:

This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.

Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN

Electirc system:

PLC control:

Technical parameters:

Assemble plant:

After-sale service:

1. Instruction for Installation and Debugging

Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.

TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $60 per day salary.

2. User Training

Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.

3. Warranty Period

The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

Note:Information listed above are for reference only, the production line can be designed according to customer's requirements.
