chrismas ball making blow molding machine four station

Specifications

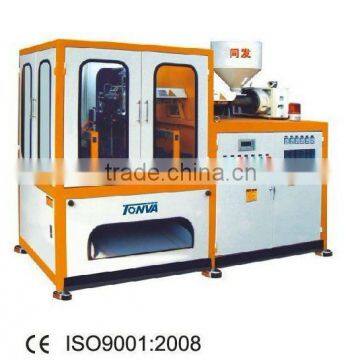

TONVA TVF-100ml Model blow molding machine:

The factory:

Blowing technology:

Technical parameters:

1.  Four station, Double head, single layer, 50mm screw, 7.5kw motor, PE / PP etc.

National initiative Four station plastic blowing technology,adopting ball bearing liner guide,it works durable and stable.

2.  Power supply: 380VAC, 50Hz  (depending on client's county ).

3.  Two die head: christmas ball 3cm/6cm/10cm/15cm  around 5000/4000/1000/400 pcs per hour

                                tool case 2cm/4cm/6cm around 3000/2000/1500 pcs per hour

                                test dropper 1ml/3ml around 4000/3500 pcs per hour

4.  Specializing in following industries:

      Plastic bolltle, Chrismas ball, Tool case, Test dropper.

5. can produce two different size and shape of bottles at the same time!

Basic working theory:

This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by bent axle actuated by pneumatic primary cylinders.

Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN

Electirc system:

Products display:

Packing for mould:

After-sale service:

1. Instruction for Installation and Debugging

Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.

TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.

2. User Training

Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.

3. Warranty Period

The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

Note:Information listed above are for reference only, the production line can be designed according to customer's requirements.
