plastic blowing machinery, four station ,two head

Specifications

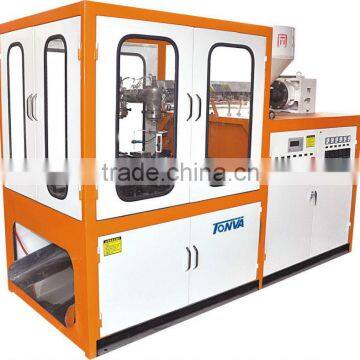

Products display:

Main Characteristic:

1. Four station, 50mm screw, 7.5kw motor, PE / PP etc.

2. Power supply: 380VAC, 50Hz (depending on client's country).

3. Output

    item                         raw material        volume                                     output(BPH)

christmas ball           PS                         3cm/6cm/10cm/15cm           5000/4000/1000/400

tool case                    HDPE                   2cm/4cm/6cm                         3000/2000/1500

test dropper              LDPE                    1ml/3ml                                    4000/3500

note: it can produce two different features and sizes of products at the same time.

Basic working theory:

This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.

Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN

PLC control:

Technical parameters:

Packing for mould:

After-sale service:

1. Instruction for Installation and Debugging

Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.

TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $60 per day salary.

2. User Training

Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.

3. Warranty Period

The warranty period for TONVA machine is two years with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

Note:Information listed above are for reference only, the production line can be designed according to customer's requirements.
