Home > Products > (Plastics) GWTI / GWIF test > Switch Panels Glow Wire Resistant FR PC Plastic Raw Materials
Switch Panels Glow Wire Resistant FR PC Plastic Raw Materials
US$ 3.6 - 8.3
/ Kilogram
25 Kilograms(Min. Order)
- Shenzhen port/ Sanshan port
- T/T L/C D/P D/A
You May Like
-
Modified GWT 750 FR PolyCarbonate Engineering Plastic Raw Material Manufacturers
-
GWT 750 Degrees Celsius Flame Retardant PC Plastic Raw Material
-
Glow Wire Ignitability 750 PC Plastic Raw Materials Prices
-
GWFI 750 PolyCarbonate Engineering Plastic Raw Materials Pellets
-
GWFI 750 Degrees Celsius GWIT POLYCARBONATE Engineering Plastic Manufacturers
-
Best Price GWFI 750 Degrees FR PC Granules Used in Plastics Plugs
Product Details
| Place of Origin | Guangdong, China | Brand Name | GYD | |
| Model Number | PC-T110F-GWF750 |
Product Description
Specifications
Property: Dedicated for switch panel, exceed GWFI 750 degrees CelsiusFR grade: UL94-5VA (0.5mm)
Color: opaque, can be stain
Product Description
Switch panels Glow wire resistant FR PC plastic raw materials
Application: mainly used in lighting lamps & lanterns, high & low voltage appratus, electrotechnical instruments and other eletric and electronic products & components, etc.
International certification: IS0-9001, UL, ROHS,REACH
| PC-B110F-GWF750 property parameter table (Glow wire ignitability 750 °C) | |||||
| Property item | Test condition | Test method | PC-B110F-GWF960 | Unit | |
| Physical properties | Specific gravity | ASTM D792 | 1.2 | ||
| Water absorption rate | ASTM D570 | 0.15 | % | ||
| Melt index | ASTM D1238 | 15 | g/10min | ||
| Mould contraction rate | 23°C | ASTM D955 | 5-8 | E-3 | |
| Mechanical properties | Tensile strength (yield point) | ASTM D638 | 60 | Mpa | |
| Tensile strength (rupture point) | ASTM D638 | 88 | % | ||
| Flexural strength | ASTM D790 | 80 | Mpa | ||
| Flexural modulus | ASTM D790 | 2100 | Mpa | ||
| Rockwell hardness | ASTM D785 | 118 | R | ||
| Impact strength (notched) | 23°C | ASTM D256 | 640 | J/m | |
| Thermal properties | Heat deflection temperature | 0.45Mpa | ASTM D648 | 139 | °C |
| Heat deflection temperature | 1.8Mpa | ASTM D648 | 130 | °C | |
| Vicat softening point | ASTM D1525 | 150 | °C | ||
| UL long-term using temperature with impact | UL746B | 120 | °C | ||
| Glow wire ignitability | ASTM D2863 | 750 | °C | ||
| Flame retardant | UL94 | V0 | |||
| Electrical properties | Permittivity | 1MHz | ASTM D150 | 2.95 | |
| volume resistivity | 1MHz | ASTM D257 | 1.00E+17 | Ω-cm | |

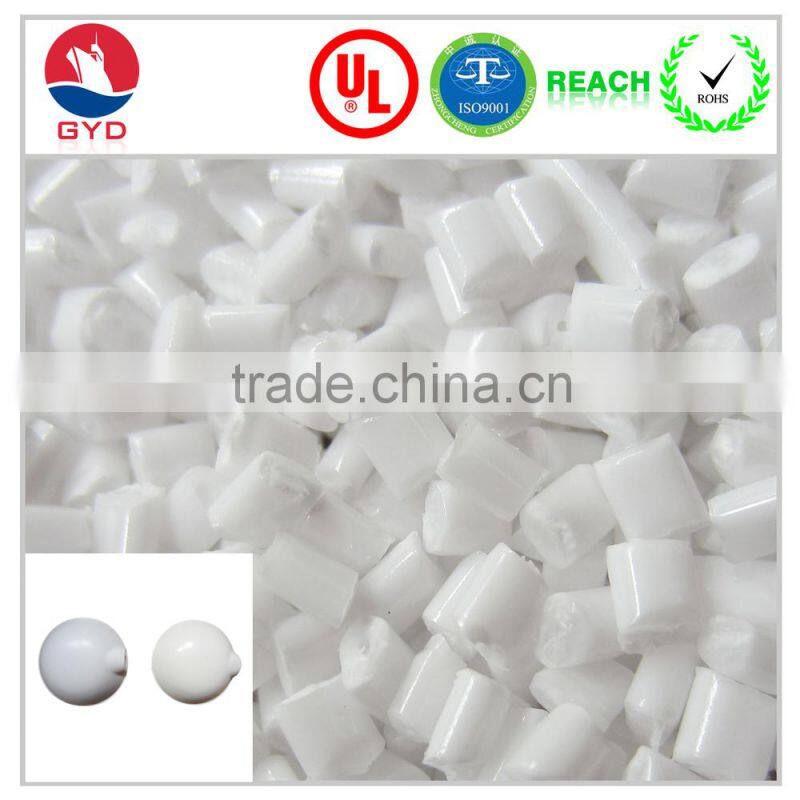

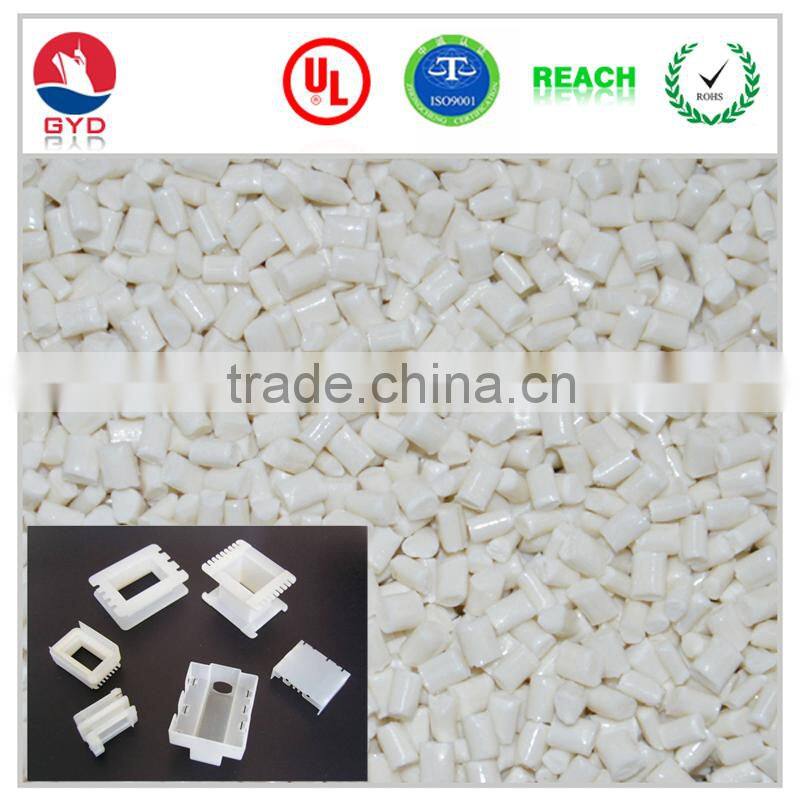

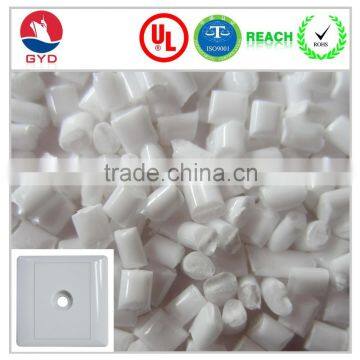

Now, here are some pictures about our company and products:
Packaging & Shipping
Contact
Should you want to get more information of our products from our side, please do feel free to contact me. Here is my full contact information.
Mob, Line, Whatsapp: +86 -13422293314
Skype: Clin Cen
Contact person: Clin
Please Send us Inquiry for Free Sample, Click "Send" Now.
Thanks for your continued support to Gangyangda, we will continue our efforts to do better, beyond the self.
