Home > Products > (Plastics) GWTI / GWIF test > Receptacles Board Porcelain White FR Polycarbonate Raw Material / Plastics Switch Panel Material GWIT 750 Degree Centigrade PC
Receptacles Board Porcelain White FR Polycarbonate Raw Material / Plastics Switch Panel Material GWIT 750 Degree Centigrade PC
US$ 3.6 - 8.3
/ Kilogram
25 Kilograms(Min. Order)
- Shenzhen port/ Sanshan port
- T/T L/C D/P D/A
You May Like
-
High Quality Household Switch Panel FR PC/ABS Raw Material / Opaque White GWIT 750 Degree Centigrade PC and ABS Alloy Resin
-
Plastic PC Alloy High Temp Resistant PC/ABS Pellets GWIT 750
-
High Temp Resistant PC/ABS Pellets GWIT 750
-
Porcelain White FR Polycarbonate Raw Material Used in Plastics Switch Panel
-
Guangzhou PC/ABS GWFI 750 Pellets, Polycarbonate and ABS Alloy PC Resin
-
Scratch-resistant Flame Retardant Polycarbonate PC Plastic Used in Building Materials Wall Switch Panel
Product Details
| Place of Origin | Guangdong, China | Brand Name | GYD | |
| Model Number | PC-T110F-GWF750 |
Product Description
Specifications
Receptacles Board Porcelain white FR Polycarbonate raw material / Plastics switch panel material GWIT 750 degree Centigrade PC
Product Description
Receptacles Board Porcelain white FR Polycarbonate raw material / Plastics switch panel material GWIT 750 degree Centigrade PC
Features:
1. UL certification
2. ROHS SGS EU REACH environmental approval
3. pencil hardness 6H
4. combustible Index 850 °C: 30 seconds extinguished; 15s extinguished; 5s extinguished; completely open flame; (a different level, different price).
5. Precision dyeing, Konica Minolta color measurement instrument CM-3600A accurate color measurement color production process;
Application:
Mainly used in lighting lamps & lanterns, high & low voltage appratus, electrotechnical instruments and other eletric and electronic products & components, etc.
International certification: IS0-9001, UL, ROHS REACH
| PC-B110F-GWF750 property parameter table (Glow wire ignitability 750°C) | |||||
| Property item | Test condition | Test method | PC-B-GWF750 | Unit | |
| Physical properties | Specific gravity | ASTM D792 | 1.2 | ||
| Water absorption rate | ASTM D570 | 0.2 | % | ||
| Mould contraction rate | 23°C | ASTM D955 | 5-7 | E-3 | |
| Melt index | ASTM D1238 | 15 | g/10min | ||
| Mechanical properties | Tensile strength (yield point) | ASTM D638 | 55 | Mpa | |
| Tensile strength (rupture point) | ASTM D638 | 90 | % | ||
| Flexural strength | ASTM D790 | 85 | Mpa | ||
| Flexural modulus | ASTM D790 | 2230 | Mpa | ||
| Rockwell hardness | ASTM D785 | 118 | R | ||
| Impact strength (notched) | 23°C | ASTM D256 | 640 | J/m | |
| Thermal properties | Heat deflection temperature | 0.45Mpa | ASTM D648 | 137 | °C |
| Heat deflection temperature | 1.8Mpa | ASTM D648 | 130 | °C | |
| Vicat softening point | ASTM D1525 | 150 | °C | ||
| UL long-term using temperature with impact | UL746B | 120 | °C | ||
| Glow wire ignitability | ASTM D3874 | 750 | °C | ||
| Flame retardant | UL94 | V0 | |||
| Electrical properties | volume resistivity | 1MHz | ASTM D257 | 1.00E+17 | Ω-cm |
| Permittivity | ASTM D150 | 2.96 | |||

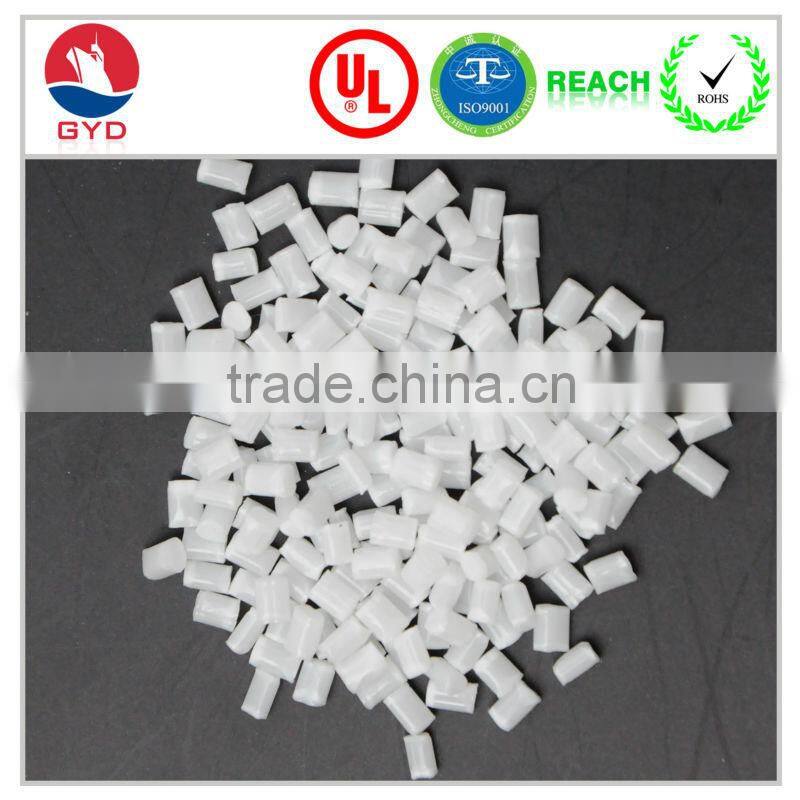

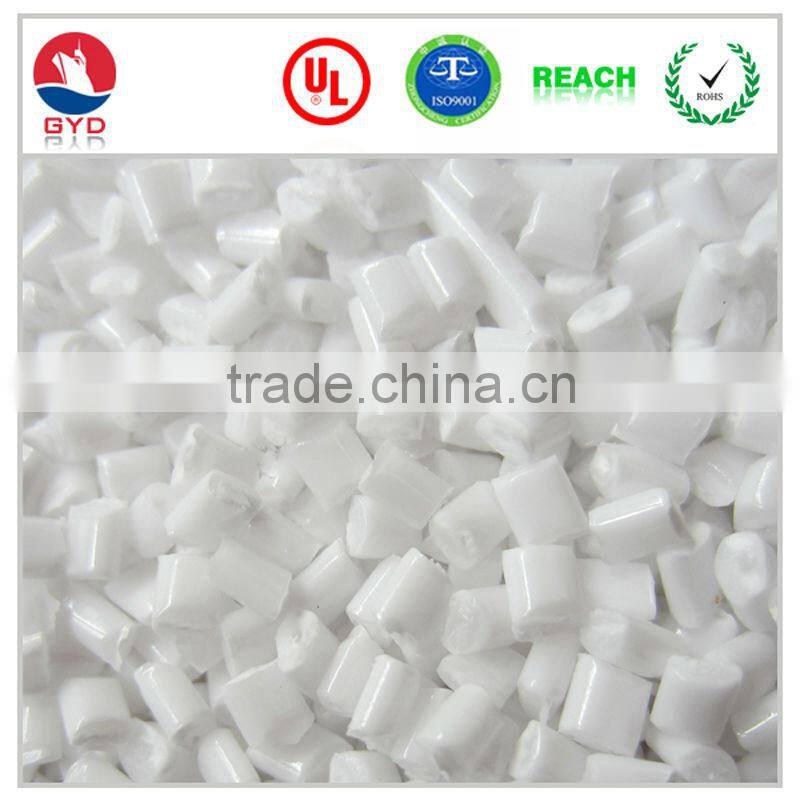

Here are some pictures of our products and company:
Packaging & Shipping
Our Services
Our company focus on high-quality engineering plastic, our products have excellent quality. If you are intrested in our products,please contact us.Thank you!
For more information about our products and our company, please visit our website . We have great interest in developing business with you.
Or any questions, please contact us any time. We will try our best to satisfy your requirements.
