dc 12V 3A (36W) SMPS power supply for cctv with Universal Input 90 to 264VAC

Product Details

FOB Price

USD $4.26 - $4.75 / Piece

500 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Model Number. Output Voltage Max.Output Current Total Regulation Max.Output Watts

JKXXXYYY-S06 4-9VDC 0.01-6A 5% 36W

JKXXXYYY-S06 9.1-15VDC 0.01-4A 5% 36W

JKXXXYYY-S06 15.1-24VDC 0.01-1.5A 5% 36W

JKXXXYYY-S06 24-48VDC 0.01-0.75A 5% 36W

dc 12V 3A (36W) SMPS power supply for cctv with Universal Input 90 to 264VAC

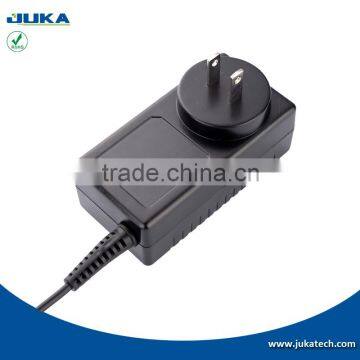

* 36Watt Wall Mount & Desk top Power Adapter

* Universal Input 90 to 264VAC

* RoHS Compliant

*Meet ErP / Energy Star / MPES Level : V

Product Specification

Sym	Parameter	Test Conditions	Min	Typ	Max	Unit
	Operate Voltage Range		100		240	VAC
fin	Input Frequency		47		63	Hz
Po	Output Power Range	Vin=90 to 264VAC	0		36	W
Vo	Output Voltage Range		4		48	V
Io	Output Current Range		0		6	A
Iil	Input Current(Low Line)	Io=Full Load,Vin=115VAC			0.6	A
Iih	Input Current(High Line)	Io=Full Load,Vin=230VAC			0.8	A
Irl	Low Line Inrush Current	Io=Full Load,25℃, Cool start,Vin=115VAC			50	A
Irh	High Line Inrush Current	Io=Full Load,25℃, Cool start,Vin=230VAC			100	A
Eff	Efficiency	Io=Full Load ,Vin=230VAC	83.64	87		%
REG-i	Line Regulation	Io=Full Load		1	2	%
REG-o	Load Regulation	Vin=230VAC		3	5	%
OCP	Over Current Protection	Nil But,Output protected to short circuit conditions				%
Ttr	Time of Transient Response	Io=Full Load to Half Load,Vin=100VAC	2			S
Thold	Hold-Up Time	Io=Full Load,Vin=100VAC	5	10	35	mS
Ts	Start Up Time	Io=Full Load,Vin=100VAC	5	10	35	mS
Vp-p	Ripple&Noise (Peak to Peak)	Full Load,Vin=90VAC		1	2	%
Ilk	Safety Ground Leakage Current	Io=Full Load,Vin=240VAC			0.25	mA
Pno	No-Load Power Consumption	No load, Vin=240VAC		0.2	0.3	w
TC	Temperature Coefficient	All output

Environmental:

Sym	Parameter	Test Conditions	Min	Typ	Max	Unit
Toper	Operating Temperature		0	25	40	℃
Tstg	Storage Temperature		-20		50	℃
Ho	Operating Humidity		15		90	%
Hr	Storage Humidity		10		95	%
MTBF	Operating Temperature at 25℃, Calculated per MIL-HDBK-217F			50000		Hrs

Output Voltage And Current Rating Chart (Single Output):
