Home > Products > Switching power adapter > transformer 110v/220v ac to dc 24v 1 amp/12v 2amp Switching power supply

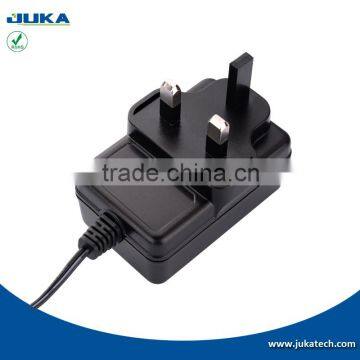

transformer 110v/220v ac to dc 24v 1 amp/12v 2amp Switching power supply
USD $3.28 - $3.61
/ Piece
1000 Pieces(Min.Order)
- ShenZhen or HK
- T/T Credit Card
You May Like
-
220v ac to 12v 5 amp/24v 2.5amp dc power supply/switching mode power supply for lcd tv
-
5V 2.5A/9V 1.2A/12V 1A switching mode power supply for satellite receiver black/white color,DC tip:5.5*2.1/5.5*2.5mm
-
desktop type 12V 4amp/24V 2amp switching mode power supply original manufacturer
-
desktop&wall mounted 12 Volt Power Supply - 5 Amp Standard (12V 5A DC) power supply Adapter
-
wall plug type 12v 2a/9v 2a/5v 4a ac to dc switching power adapter
-
AC/DC Power Adapter EU 12 Volt 1.5 Amps 18 Watts Wall plug type 12V 1500mA
Product Details
| Place of Origin | Guangdong, China | Brand Name | JUKE | |
| Model Number | JKXXXYYY-S19 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 100-240V | |
| Output Voltage | 4-24V | Output Frequency | 50/60Hz | |
| Output Current | 0-5A |
Product Description
Product Description
transformer 110v/220v ac to dc 24v 1 amp/12v 2amp Switching power supply
*24Watt Wall Mount
*Universal Input 90 to 264VAC
*RoHS Compliant
*Meet ErP / Energy Star / MPES Lelve : V
*Universal Input 90 to 264VAC
*RoHS Compliant
*Meet ErP / Energy Star / MPES Lelve : V
Product Specification
| Sym | Parameter | Test Conditions | Min | Typ | Max | Unit |
| Operate Voltage Range | 100 | 240 | VAC | |||
| fin | Input Frequency | 47 | 63 | Hz | ||
| Po | Output Power Range | Vin=90 to 264VAC | 0.1 | 24 | W | |
| Vo | Output Voltage Range | 4 | 24 | V | ||
| Io | Output Current Range | 0 | 5 | A | ||
| Iil | Input Current(Low Line) | Io=Full Load,Vin=115VAC | 0.3 | A | ||
| Iih | Input Current(High Line) | Io=Full Load,Vin=230VAC | 0.8 | A | ||
| Irl | Low Line Inrush Current | Io=Full Load,25℃, Cool start,Vin=115VAC | 30 | A | ||
| Irh | High Line Inrush Current | Io=Full Load,25℃, Cool start,Vin=230VAC | 60 | A | ||
| Eff | Efficiency | Io=Full Load ,Vin=230VAC | 80.24 | 83 | % | |
| REG-i | Line Regulation | Io=Full Load | 1 | 1 | % | |
| REG-o | Load Regulation | Vin=230VAC | 3 | 5 | % | |
| OCP | Over Current Protection | Nil But,Output protected to short circuit conditions | % | |||
| Ttr | Time of Transient Response | Io=Full Load to Half Load,Vin=100VAC | 2 | S | ||
| Thold | Hold-Up Time | Io=Full Load,Vin=100VAC | 5 | 10 | 35 | mS |
| Ts | Start Up Time | Io=Full Load,Vin=100VAC | 5 | 10 | 35 | mS |
| Vp-p | Ripple&Noise (Peak to Peak) | Full Load,Vin=90VAC | 1 | 2 | % | |
| Ilk | Safety Ground Leakage Current | Io=Full Load,Vin=240VAC | 0.25 | mA | ||
| Pno | No-Load Power Consumption | No load, Vin=240VAC | 0.2 | 0.3 | w | |
| TC | Temperature Coefficient | All output | ||||
Environmental:
| Sym | Parameter | Test Conditions | Min | Typ | Max | Unit |
| Toper | Operating Temperature | 0 | 25 | 40 | ℃ | |
| Tstg | Storage Temperature | -20 | 50 | ℃ | ||
| Ho | Operating Humidity | 15 | 90 | % | ||
| Hr | Storage Humidity | 10 | 95 | % | ||
| MTBF | Operating Temperature at 25℃, Calculated per MIL-HDBK-217F | 50000 | Hrs | |||
