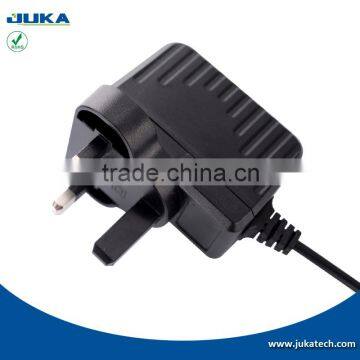

3 pin plug 12v 0.8a power adapter / ac adaptor ac 230v dc 12v 800mA

Product Name: 3 pin plug 12v 0.8a power adapter / ac adaptor ac 230v dc 12v 800mA

INPUT

Input voltage (AC)

90-264V

FrequencyRange

47 ~ 63Hz

AC input current

0.3A

Leakage Current

Io=Full Load,Vin=240VAC/50Hz 0.25mA

No load power consumption

No load, Vin=240VAC 0.3W

OUTPUT

Output Voltage ( DC )

12V

Output Current ( Rated )

800mA

Power

9W

Ripple & Noises (max.)

2%

Voltage Tolerance

±5%

Line Regulation

2%

Load Regulation

5%

Set-up, rise, hold-up time

Io=Full Load,Vin=100VAC 35ms

DC Connector

2.5*5.5/2.1*5.5/1.35*3.5/1.7*4.0 etc

PROTECTION

Over Load Protection, Over Voltage Protection, Short Circuit Protection

Efficiency

68.54%

ENVIRONMENT

Working Temp.

0-40 ℃

Working Humidity

15-90℃

Storage Temp.

-20-50℃

Storage Humidity

10-95℃

Vibration

-

OTHERS

Hi-pot Voltage

3000Vac / 5mA / 60S

MTBF

50000 Hrs

WARRANTY

2 Years

CERT.

 CE,GS

Application: Mobile Phone Charger,Tablet,Photo Frame,PDA,MP3,Portable Equipment

Payment Terms:

T/T, Western Union, Paypal payment will be allowed

For Sample order, we request 100% payment before shipping

For Trail/bulk order, we request 50% deposit, and the balance 50% should be paid before delivery

Lead time:

Sample order within 1-10pcs,it will be sent out 3-7 days

For trial/bulk order,it will be sent out within 20-25 days

Shipping method

You can choose express like UPS,DHL,Fedex or TNT,Air and sea shipment.

We’d like to give you some information on how to choose the shipping to save cost

1) If the weight is below 80KG/per order,we recommend you to choose the express.It’s door to door service,better than air shipment because you don’t need to pick up the goods by yourself while it arrived at your area.

2) If the weight is excess 80KGS,you can choose air shipment

3) If the weight is excess 100KGS,sea shipment is the best choice.

Above suggestion is based on your time is enough when you confirm the order with our sales
