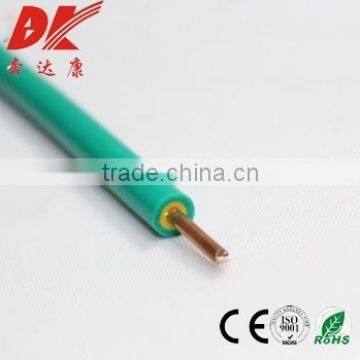

multi core pvc insulated with copper conductor pvc insulated wire 2.5 mm 4mm 450/750v pvc insulated wire
- Shenzhen seaport or other seaport in China
- T/T
You May Like
-
pvc insulated steel wire armored pe sheathed cable 2.5mm single core 450/750v copper core pvc insulated flexible cable
-
copper core pvc insulated earth cable wire 450/750 v copper conductor electric cable 4mm2 pvc insulated electric wire
-
pvc insulated pe sheathed power cable 70mm2 pvc insulated 450/750v copper core pvc insulated flexible cable
-
copper core pvc insulated pvc sheathed flat cable 450 750 wire pvc insulated electrical cable 6mm pvc insulated flexible cable
-
pvc insulated copper wire braid screen cable single core copper pvc insulated cable 450/750 v pvc insulated 25mm2 cable
-
indian standard cable supplier pvc insulated cable 450/750v pvc insulated wire copper core pvc insulated flexible wire
Product Details
| Place of Origin | Guangdong, China | Brand Name | Bendakang,BDK | |
| Model Number | BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM | Type | Other, Insulated, BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM | |
| Application | Other, as building wire for power, lighting and control wire | Conductor Material | Copper | |
| Conductor Type | Other, Class 1/2 Plain annealed copper wires, solid or stranded | Insulation Material | PVC |
Product Description
multi core pvc insulated with copper conductor pvc insulated wire 2.5 mm 4mm 450/750v pvc insulated wire:
Product Description
H05VV-U H07VV-U
H07VV-R |
| | ||
Type | BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM | |||
Voltage Rate | 300/500V, 450/750V | |||
Cores | 1~5 cores | |||
Range of Nominal cross section: | Single core: 0.75 mm2 ~ 630 mm2 Multicore core: 0.75 mm2 ~ 120 mm2 | |||
Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. | |||
Standard | IEC 60227, GB/T5023, VDE0281, BS6004 | |||
Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Sheath: PVC Core color: Brown, Grey, Black, Blue, Green/Yellow or others on request | |||
Max. Operating Temperature | 70℃, can be 90℃,105℃as per requirement | |||
Packing | 100 meter/roll for small size, wooden drum for big size, or as per requirement | |||
Production Capacity | 50 kilometer/ day | |||
MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size | |||
Delivery time | 10~15 working days | |||
Remark | The cable can be of flame retardance, fire resistance and other property | |||
Technical parameters
| Cross-section of conductor (mm2) | Kind of Conductor | Insulation Thickness (mm) | Sheath Thickness (mm) | Average Max. Outer-diameter (mm) | Product Approximate weight (kg/km) | Conductor copper-wire Max. resistance (Ω/km) | Min. insulation resistance (MΩ.km) | |
| Metal coated | No metal coated | |||||||
| 2×1.5 | 1 | 0.7 | 1.2 | 10 | 84.93 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 10.5 | 89.13 | 12.1 | 12.2 | 0.01 | |
| 2×2.5 | 1 | 0.8 | 1.2 | 11.5 | 116.99 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 12 | 124.84 | 7.41 | 7.56 | 0.009 | |
| 2×4 | 1 | 0.8 | 1.2 | 12.5 | 154.02 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.2 | 13 | 162.49 | 4.61 | 4.7 | 0.0077 | |
| 2×6 | 1 | 0.8 | 1.2 | 13.5 | 201.43 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.2 | 14 | 211.74 | 3.08 | 3.11 | 0.0065 | |
| 2×10 | 1 | 1 | 1.4 | 16.5 | 342.84 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 17.5 | 354.15 | 1.83 | 1.84 | 0.0065 | |
| 2×16 | 2 | 1 | 1.4 | 20 | 481.24 | 1.15 | 1.16 | 0.0052 |
| 2×25 | 2 | 1.2 | 1.4 | 24 | 717.82 | 0.727 | 0.734 | 0.005 |
| 2×35 | 2 | 1.2 | 1.6 | 27.5 | 955.57 | 0.524 | 0.529 | 0.0044 |
| 3×1.5 | 1 | 0.7 | 1.2 | 10.5 | 105.86 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 11 | 110.82 | 12.1 | 12.2 | 0.01 | |
| 3×2.5 | 1 | 0.8 | 1.2 | 12 | 149.34 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 12.5 | 159.02 | 7.41 | 7.56 | 0.009 | |
| 3×4 | 1 | 0.8 | 1.2 | 13 | 201.04 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.2 | 13.5 | 211.19 | 4.61 | 4.7 | 0.0077 | |
| 3×6 | 1 | 0.8 | 1.4 | 14.5 | 278.69 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 15.5 | 291.56 | 3.08 | 3.11 | 0.0065 | |
| 3×10 | 1 | 1 | 1.4 | 17.5 | 457.6 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 19.5 | 472.47 | 1.83 | 1.84 | 0.0065 | |
| 3×16 | 2 | 1 | 1.4 | 21.5 | 652.85 | 1.15 | 1.16 | 0.0052 |
| 3×25 | 2 | 1.2 | 1.4 | 26 | 985.18 | 0.727 | 0.734 | 0.005 |
| 3×35 | 2 | 1.2 | 1.6 | 29 | 1316.42 | 0.524 | 0.529 | 0.0044 |
| 4×1.5 | 1 | 0.7 | 1.2 | 11.5 | 129.92 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 12 | 137.02 | 12.1 | 12.2 | 0.01 | |
| 4×2.5 | 1 | 0.8 | 1.2 | 13 | 185.91 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 13.5 | 199.73 | 7.41 | 7.56 | 0.009 | |
| 4×4 | 1 | 0.8 | 1.4 | 14.5 | 264.06 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.4 | 15 | 280 | 4.61 | 4.7 | 0.0077 | |
| 4×6 | 1 | 0.8 | 1.4 | 16 | 352.25 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 17 | 372.18 | 3.08 | 3.11 | 0.0065 | |
| 4×10 | 1 | 1 | 1.4 | 19 | 589.31 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 20.5 | 614.24 | 1.83 | 1.84 | 0.0065 | |
| 4×16 | 2 | 1 | 1.4 | 23.5 | 848.16 | 1.15 | 1.16 | 0.0052 |
| 4×25 | 2 | 1.2 | 1.6 | 27.5 | 1309.68 | 0.727 | 0.734 | 0.005 |
| 4×35 | 2 | 1.2 | 1.6 | 32 | 1724.19 | 0.524 | 0.529 | 0.0044 |
| 5×1.5 | 1 | 0.7 | 1.2 | 12 | 155.09 | 12.1 | 12.2 | 0.011 |
| 2 | 0.7 | 1.2 | 12.5 | 163.63 | 12.1 | 12.2 | 0.01 | |
| 5×2.5 | 1 | 0.8 | 1.2 | 14 | 223.98 | 7.41 | 7.56 | 0.01 |
| 2 | 0.8 | 1.2 | 14.5 | 240.8 | 7.41 | 7.56 | 0.009 | |
| 5×4 | 1 | 0.8 | 1.4 | 16 | 319.08 | 4.61 | 4.7 | 0.0085 |
| 2 | 0.8 | 1.4 | 17 | 338.37 | 4.61 | 4.7 | 0.0077 | |
| 5×6 | 1 | 0.8 | 1.4 | 17.5 | 428.24 | 3.08 | 3.11 | 0.007 |
| 2 | 0.8 | 1.4 | 18.5 | 452.4 | 3.08 | 3.11 | 0.0065 | |
| 5×10 | 1 | 1 | 1.4 | 21 | 721.03 | 1.83 | 1.84 | 0.007 |
| 2 | 1 | 1.4 | 22 | 750.19 | 1.83 | 1.84 | 0.0065 | |
| 5×16 | 2 | 1 | 1.6 | 26 | 1063.16 | 1.15 | 1.16 | 0.0052 |
| 5×25 | 2 | 1.2 | 1.6 | 31.5 | 1612.39 | 0.727 | 0.734 | 0.005 |
| 5×35 | 2 | 1.2 | 1.6 | 35 | 2127.77 | 0.524 | 0.529 | 0.0044 |
Warehouse for material:copper wire and pvc
the Main Manufacturing Procedure
1,Copper wire drawing and annealing 2,Copper wire stranding 3,PVC insulation extruding 4,Cores Twisting 5,Outer sheath extruding and labeling 6,Spooling
Ptroduction Machine
Main Quality Inspection Equipment
Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester, Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.
Shipment specifications
Customers Activities
Some of the project customers and cooperative clients
Certificates
ISO9001/ISO14001/OHSMS1800,CCC,CE,CB,BS test certificate,SAA
FAQ
1) Q:Are you a factory or trading company?
A: We are a 17 years factory in Shenzhen, China, our company is " China's Hi-Tech Enterprise" and our cable products titled "China Famous Trademark"
2) Q:Where is your factory located? How can I visit there?
A: Our factory is in Shenzhen City, Guangdong Province, near Hongkong, it is very convenient to visit us, we warmly welcome all distinguished guests to visit our factory industrial zone
3) Q: How about your factory's quality control?
A: Quality is our life. We take scientific methods during manufacturing and take strict tests to ensure that every meter of our cable is good quality. Our company have certified with ISO, CB, CE, SAA and as per standards of IEC, UL, BS, VDE, AS/NZS or other standards required.
4) Q:How does your factory do regarding quality control?
A:Our company has gained the following certificates:ISO9001,ISO14001,OHSMS18001,CB,CE,SAA,etc
5) Q:Can I get some free sample?
A: The answer is yes, we are very glad to offer free samples to distinguished guests who are willing to establish sincere business relationship with us.
