Home > Products > New Products > nominal voltage 450/750v cable multi-core screened cable 4 sq mm electrical wire

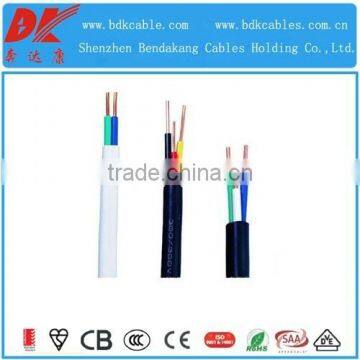

nominal voltage 450/750v cable multi-core screened cable 4 sq mm electrical wire

FOB Price

US$ 0.1 - 99 / Kilometer

1 Kilometer(Min. Order)

Port Shenzhen seaport or other seaport in China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Bendakang,BDK
Model Number	BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM	Type	Other, Insulated, BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM
Application	Other, as building wire for power, lighting and control wire	Conductor Material	Copper
Conductor Type	Other, Class 1/2 Plain annealed copper wires, solid or stranded	Insulation Material	PVC

Product Description

nominal voltage 450/750v cable multi-core screened cable 4 sq mm electrical wire:

Product Description

H05VV-U H07VV-U H07VV-R
Type	BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM
Voltage Rate				300/500V, 450/750V
Cores				1~5 cores
Range of Nominal cross section:				Single core: 0.75 mm² ~ 630 mm² Multicore core: 0.75 mm² ~ 120 mm²
Application	These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Standard	IEC 60227, GB/T5023, VDE0281, BS6004
Constructions	Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Sheath: PVC Core color: Brown, Grey, Black, Blue, Green/Yellow or others on request
Max. Operating Temperature			70℃, can be 90℃,105℃as per requirement
Packing	100 meter/roll for small size, wooden drum for big size, or as per requirement
Production Capacity		50 kilometer/ day
MOQ	10000 meters for small size, 5000 meters for middle size, 1000 meters for big size
Delivery time	10~15 working days
Remark	The cable can be of flame retardance, fire resistance and other property

Technical parameters

Cross-section of conductor (mm2)	Kind of Conductor	Insulation Thickness (mm)	Sheath Thickness (mm)	Average Max. Outer-diameter (mm)	Product Approximate weight (kg/km)	Conductor copper-wire Max. resistance (Ω/km)		Min. insulation resistance (MΩ.km)
Cross-section of conductor (mm2)	Kind of Conductor	Insulation Thickness (mm)	Sheath Thickness (mm)	Average Max. Outer-diameter (mm)	Product Approximate weight (kg/km)	Metal coated	No metal coated	Min. insulation resistance (MΩ.km)
2×1.5	1	0.7	1.2	10	84.93	12.1	12.2	0.011
2×1.5	2	0.7	1.2	10.5	89.13	12.1	12.2	0.01
2×2.5	1	0.8	1.2	11.5	116.99	7.41	7.56	0.01
2×2.5	2	0.8	1.2	12	124.84	7.41	7.56	0.009
2×4	1	0.8	1.2	12.5	154.02	4.61	4.7	0.0085
2×4	2	0.8	1.2	13	162.49	4.61	4.7	0.0077
2×6	1	0.8	1.2	13.5	201.43	3.08	3.11	0.007
2×6	2	0.8	1.2	14	211.74	3.08	3.11	0.0065
2×10	1	1	1.4	16.5	342.84	1.83	1.84	0.007
2×10	2	1	1.4	17.5	354.15	1.83	1.84	0.0065
2×16	2	1	1.4	20	481.24	1.15	1.16	0.0052
2×25	2	1.2	1.4	24	717.82	0.727	0.734	0.005
2×35	2	1.2	1.6	27.5	955.57	0.524	0.529	0.0044
3×1.5	1	0.7	1.2	10.5	105.86	12.1	12.2	0.011
3×1.5	2	0.7	1.2	11	110.82	12.1	12.2	0.01
3×2.5	1	0.8	1.2	12	149.34	7.41	7.56	0.01
3×2.5	2	0.8	1.2	12.5	159.02	7.41	7.56	0.009
3×4	1	0.8	1.2	13	201.04	4.61	4.7	0.0085
3×4	2	0.8	1.2	13.5	211.19	4.61	4.7	0.0077
3×6	1	0.8	1.4	14.5	278.69	3.08	3.11	0.007
3×6	2	0.8	1.4	15.5	291.56	3.08	3.11	0.0065
3×10	1	1	1.4	17.5	457.6	1.83	1.84	0.007
3×10	2	1	1.4	19.5	472.47	1.83	1.84	0.0065
3×16	2	1	1.4	21.5	652.85	1.15	1.16	0.0052
3×25	2	1.2	1.4	26	985.18	0.727	0.734	0.005
3×35	2	1.2	1.6	29	1316.42	0.524	0.529	0.0044
4×1.5	1	0.7	1.2	11.5	129.92	12.1	12.2	0.011
4×1.5	2	0.7	1.2	12	137.02	12.1	12.2	0.01
4×2.5	1	0.8	1.2	13	185.91	7.41	7.56	0.01
4×2.5	2	0.8	1.2	13.5	199.73	7.41	7.56	0.009
4×4	1	0.8	1.4	14.5	264.06	4.61	4.7	0.0085
4×4	2	0.8	1.4	15	280	4.61	4.7	0.0077
4×6	1	0.8	1.4	16	352.25	3.08	3.11	0.007
4×6	2	0.8	1.4	17	372.18	3.08	3.11	0.0065
4×10	1	1	1.4	19	589.31	1.83	1.84	0.007
4×10	2	1	1.4	20.5	614.24	1.83	1.84	0.0065
4×16	2	1	1.4	23.5	848.16	1.15	1.16	0.0052
4×25	2	1.2	1.6	27.5	1309.68	0.727	0.734	0.005
4×35	2	1.2	1.6	32	1724.19	0.524	0.529	0.0044
5×1.5	1	0.7	1.2	12	155.09	12.1	12.2	0.011
5×1.5	2	0.7	1.2	12.5	163.63	12.1	12.2	0.01
5×2.5	1	0.8	1.2	14	223.98	7.41	7.56	0.01
5×2.5	2	0.8	1.2	14.5	240.8	7.41	7.56	0.009
5×4	1	0.8	1.4	16	319.08	4.61	4.7	0.0085
5×4	2	0.8	1.4	17	338.37	4.61	4.7	0.0077
5×6	1	0.8	1.4	17.5	428.24	3.08	3.11	0.007
5×6	2	0.8	1.4	18.5	452.4	3.08	3.11	0.0065
5×10	1	1	1.4	21	721.03	1.83	1.84	0.007
5×10	2	1	1.4	22	750.19	1.83	1.84	0.0065
5×16	2	1	1.6	26	1063.16	1.15	1.16	0.0052
5×25	2	1.2	1.6	31.5	1612.39	0.727	0.734	0.005
5×35	2	1.2	1.6	35	2127.77	0.524	0.529	0.0044

Warehouse for material:copper wire and pvc

the Main Manufacturing Procedure

1,Copper wire drawing and annealing 2,Copper wire stranding 3,PVC insulation extruding 4,Cores Twisting 5,Outer sheath extruding and labeling 6,Spooling

Ptroduction Machine

Main Quality Inspection Equipment

Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester, Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.

Shipment specifications

Customers Activities

Some of the project customers and cooperative clients

Certificates

ISO9001/ISO14001/OHSMS1800,CCC,CE,CB,BS test certificate,SAA

FAQ

1) Q:Are you a factory or trading company?

A: We are a 17 years factory in Shenzhen, China, our company is " China's Hi-Tech Enterprise" and our cable products titled "China Famous Trademark"

2) Q:Where is your factory located? How can I visit there?

A: Our factory is in Shenzhen City, Guangdong Province, near Hongkong, it is very convenient to visit us, we warmly welcome all distinguished guests to visit our factory industrial zone

3) Q: How about your factory's quality control?

A: Quality is our life. We take scientific methods during manufacturing and take strict tests to ensure that every meter of our cable is good quality. Our company have certified with ISO, CB, CE, SAA and as per standards of IEC, UL, BS, VDE, AS/NZS or other standards required.

4) Q:How does your factory do regarding quality control?

A:Our company has gained the following certificates:ISO9001,ISO14001,OHSMS18001,CB,CE,SAA,etc

5) Q:Can I get some free sample?

A: The answer is yes, we are very glad to offer free samples to distinguished guests who are willing to establish sincere business relationship with us.
