Sand Cleaning Machine
- Qingdao Tianjin Shanghai or others
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Hongxing | |
| Model Number | XS | Condition | New |
Product Description
Specifications
Sand Cleaning Machine:1.Reasonable structure
2.High efficiency
3.Little sand loss during washing
4.Energy saving
Sand Washing Machine Application:
Sand Washing Machine(sand washer) is widely used in particle aggregate sand screw washing, grading and dehydrating quartz and sand in construction site, sand stone factories, hydropower station and concrete dam site, precast concrete factory, glass factory and etc. It is especially applicable to wash construction sand and paving sand. This sand washing plant has the features of reliable structure, convenient maintenance, big capacity, low power consumption, high cleaning level. The new sealing structure, totally closed oil bath type drive device and adjustable overflow weir plate promises that the machine works efficiently.
Features of sand washing equipment:
1. This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by deeping in water, sand, or contamination.
2. This machine has obvious advantages compared with screw sand washing equipment/washer.
3. The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel.
4. There is almost no wearing part except screen mesh.
5. The machine usage life is long.

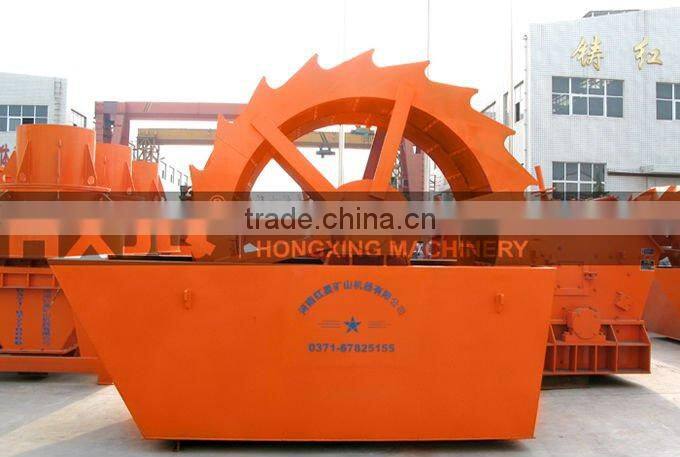

Operating principle of artificial sand washer (Bucket sand washer):
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Technical parameters

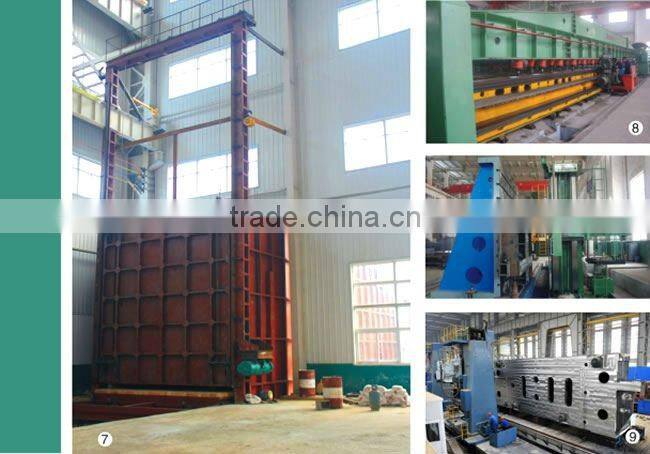

Sharp tools make good work
Hongxing has bought advanced manfacturing equipments from home & abroad.Numerical control machine tools with high-precision,large processing equipments & special test equipments provide strong safeguard for product quality and company development
Excellent quality identified by all the Qualifications
We know what Hongxing gets from the society is more than her contributions to the society Hongxing cannot develop itself in isolation of the society Over the years,Hongxing's staffs have been grateful to the society,what thery can do is to regard product quality as company's life and innovation as object , dedicated to return society,put its strength for the indestrial and national development.
Green industry and internationalization is the strategic thought of Hongxing.Hongxing tries best to integrate the advanced technology,excellent talents and advanced concept into the company development,which give support to the pace,strategy and development of Hongxing's internalization and make our business partners using most suitable Hongxing's product .
