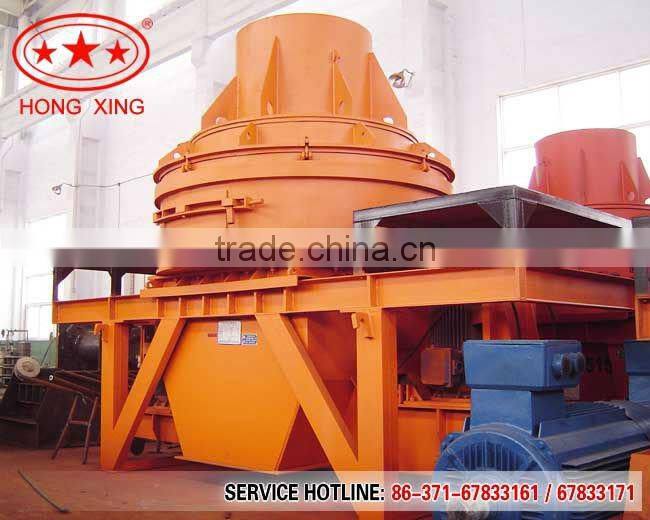

Hongxing Vertical Shaft Impact HX Series Sand Maker High Efficiency

Place of Origin	Henan, China		Brand Name	Hongxing
Model Number	HX		Condition	New

Specifications

Granite sand maker advantages:
1.Exellcent performance
2.High final fineness
3.Safe and user-friendly
4.Smooth operation



  Granite sand maker Product Description

This series sand maker is suitable for the crushing and reshaping of the soft, hard and extremely hard materials. It is widely used in all kinds of ores, cement, refractory material, bauxite chamotte, carborundum, raw materials of glass, artificial sand making, and gold slag.





1 ,Sandstone plant, Concrete batching plant, premixed dry mortar, Power Plant Desulfurization, quartz sand, etc.

2, The artificial sand making and stone reshaping in the engineering field of water conservancy and hydropower, high-grade road, expressway, high speed railway, passenger transport line, bridge, air strip, municipal works, high-rise buildings.

The structures of sand making machine: consist of feed hopper, distributor, eddy crushing chamber, Impeller body, Spindle assembly, base plate, transmission part and motor.

Types of sand maker: VSI5X Sand maker,VSI sand maker ,PCL Sand making machine.





Characters of VSI Granite sand maker :
VSI Sand Maker is a new design, with which Germany authoritative experts combined working conditions of China. VSI sand maker is the present domestic exclusive production on world's advanced level with high performance. Its design adopts unique rotor structure, wear-resisting material technology, broken speed optimization and the perfect hydraulic combination. VSI sand maker is unique rotor structure design, wear-resisting material technology, broken speed optimization and the perfect combination of hydraulic design. It is a successful example of perfect combination of the specialized technology and finely machinery manufacturing, and also the reflect of the new technology and the new craft.

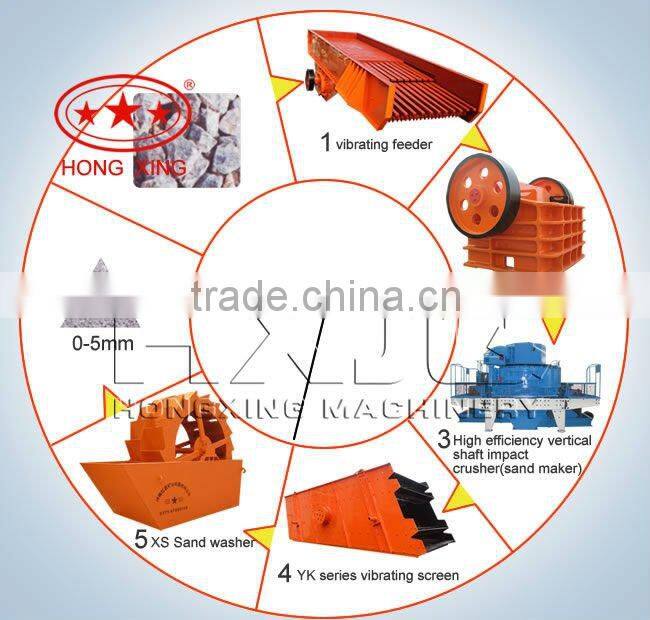

 Artificial Granite sand maker production line

The stone materials are crushed preliminarily in the jaw crusher. Secondly, the crushed rough stone materials are transported into the impact crusher for further crush by the belt conveyor. Thirdly, the stone materials are separated into two parts by the vibrating screen, and one part whose size is suitable for the sand making machine will be transported into the sand making machine, and the other part of the stone will transported into the impact crusher. Some of the former part of the stone which are crushed in the sand making machine will turn into required sand, and be washed by the sand washing machine (selectable), and the rest stone materials will be transported into the impact crusher for crush once more. Artificial sand washer production line has features of high automation, low operating costs, high crushing ratio, low energy consumption, large output, convenient maintenance, uniform granularity and good shape of the products, reasonable gradation, and the produced sand conforms to the national standard of construction sand. Materials are transferred to sand making machinery from hopper, then they fall into two parts by material-scattering device. One part falls to the impeller which rotates at a high speed from material-scattering device. In the impeller, materials rotate at even higher speed, and their acceleration is as big as hundreds of acceleration of gravity, then they are thrown out through three passages of impeller at a speed of 60-70 meters/second.





 Characteristic Feature of Hongxing sand making machine

1, High capacity, high productivity--50-500t/h, the output is 30% higher than the traditional sand maker under the same power.

2, Low consumption of wearable parts--- best design of crushing chamber impact angle, little friction with the wearable parts, 30% lower running cost compared with traditional equipments, and reduced the use cost directly.

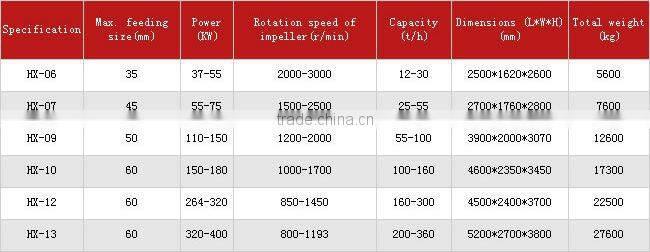

 Granite sand maker technical parameters
