Single Phase Electronic Energy Meter 100A
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL, YTL(energy meter) | |
| Model Number | D122004, DDS-1Y | Display Type | Digital Only | |
| Phase | Single Phase | Measuring Energy Range | 10(100)A | |
| Accuracy Class | 1.0, 1.0 2.0 | Output Voltage | 220V 230V, 110V 220V 230V 240V | |
| Operating Temperature | -20~50, -30~55 | Dimensions | 179*120*60, 117*106*60mm |
Product Description
Single phase electronic energy meter 100A
As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | single phase electronic energy meter 100A | |
Installation type | suspension type | |
Module No. | D122004 (electronic energy meter) | |
Brand | YTL (electronic energy meter) | |
Rated Current | 10(100)A | |
Reference Voltage | 240V | |
Frequence | 60Hz | |
Display Mode | LCD 6+2 | |
Accuracy | 1.0 | |
Impulse Constant | 1600imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | direct connection | |
Communication& Protocol | / | |
PowerConsumption | <2VA | |
Material of meter case | PC | |
Size | 106*179*60mm | |
Certificate | KEMA | |
Standard | ISO9001 | |
2.Functions and characteristic | ||
A. Measure energy consumption | ||
B. KEMA certificate | ||
C. | ||
… | ||

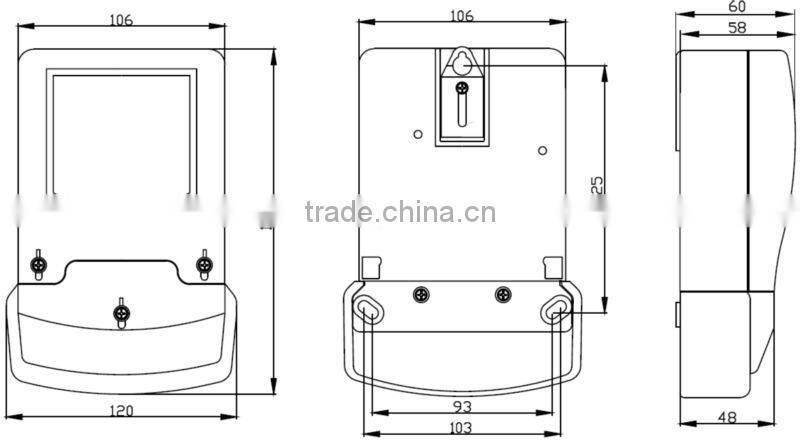

3.Outer and mount dimension: | ||
 | ||

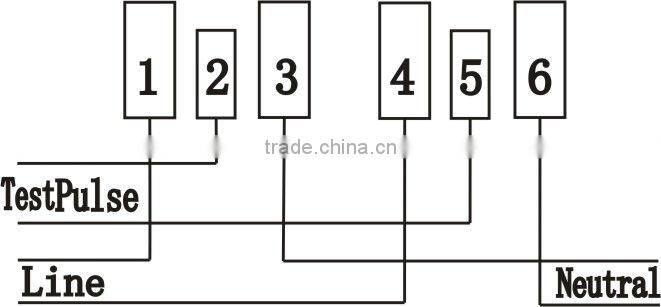

4.Wiring diagram: | ||
| ||
5.TransactionInformation | ||
MOQ | 500pcs | |
Sea Port | Shanghai or Ningbo | |
Payment Terms | TT prepayment | |
Supply Ability | 500,000pcs per month | |
Delivery time | 25 days | |
Normal Package | white box or colorful box fo electronic energy meter | |
If you are interested in our single phase electronic energy meter, pls be free to contact us at any time.
