single phase digital energy meter
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL | |
| Model Number | D122004 | Display Type | Digital Only | |
| Phase | Single Phase | Measuring Energy Range | 5(30)A; 10(40)A; 20(80)A;5(100)A | |
| Accuracy Class | 1.0;2.0 | Output Voltage | 110V; 220V; 230V; 240V | |
| Operating Temperature | -30~+55 | Dimensions | 179*106*60 |
Product Description

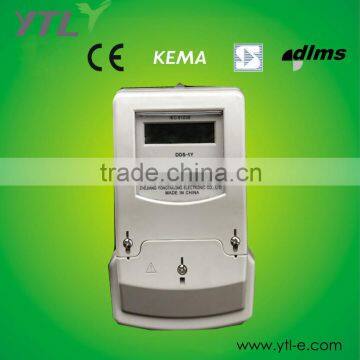

Single phase digital energy meter
As a professional manufacturer, YTL designs and produces KEMA meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of KEMA meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Single phase digital energy meter | |
Installation type | suspension type | |
Module No. | D122004 ( digital energy meter ) | |
Brand | YTL ( digital energy meter ) | |
Rated Current | 10(100)A | |
Reference Voltage | 240V | |
Frequence | 60Hz | |
Display Mode | LCD6+1 | |
Accuracy | 1.0 | |
Impulse Constant | 1600imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | direct mode | |
Communication& Protocol | / | |
Power Consumption | ≤0.3VA ≤6W | |
Material of meter case | PC | |
Size | 179*106*60mm | |
Certificate | KEMA | |
Standard | IEC62052-11, IEC62053-21 | |
2.Functions and characteristic | ||
A. Large scale integrated circuit and surface mount technology (SMT) are used with advanced technology and simple structure as well as high reliability. | ||
B. New integrated circuit with built-in digital multiplier special for electronic energy is brought in from abroad and adopted to extend the dynamic working range of the meter. | ||
C. Pulse testing output can be applied to the collection reading system. | ||
… | ||
3.Outer and mount dimension: | ||
 | ||
4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ | 500pcs | |
Sea Port | Shanghai | |
Payment Terms | TT prepayment | |
Supply Ability | 50,000pcs of energy meter per month | |
Delivery time | 25 days | |
Normal Package | white box or colorful box for KEMA meter | |
If you are interested in our Single phase Electronic KEMA Meter, pls feel free to contact us at any time.
