Bare conductor cable: AAC, AAAC, ACSR cable

Specifications

Bare conductor cable  are including many kinds of types, as follows:

All aluminium conductor (AAC)

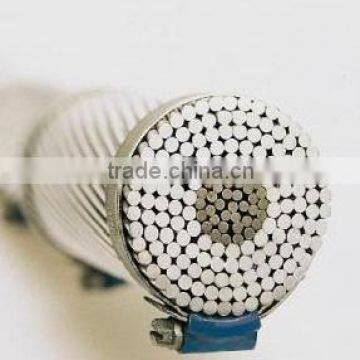

Aluminium conductor steel reinforced (ACSR)

All aluminium alloy conductor (AAAC)

Aluminium conductor aluminium alloy reinforced (ACAR)

Aluminium conductor al-clad steel reinforced

AAC and ACSR have been widely used in power transmission lines with various voltage levels, since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.

AAAC and AAACSR have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, havey ice area, etc. with special geographical situation. the cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.

Remarks:

Any crush or bump should be avoided during handling and transportation of the product.

The cable drum is not allowed to be placed with one flange up and the other down during transportation and storage of the products.

A moisture-proof measure should be taken during storage of the product

Corrugated aluminium pipe busbar,  made of aluminium wires or aluminium alloy wires stranded around aluminium pipe.

widely used in power plant, and substation, especially used as busbar of substation over 2000 meter of altitudes.

Can be produced up to 600-1600 sqmm (equal to aluminium's section-area)

Rated voltage: 1kV, 10kV, 35kV

Relative manufacturing standards: IEC, BS, ASTM, DIN, AS/NZS.
