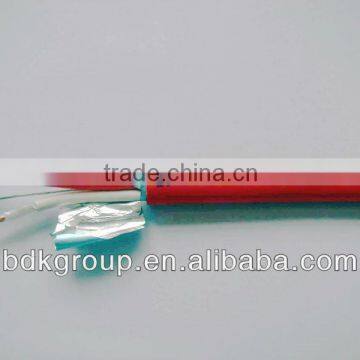

Fire rated cable as per Australia standard

Fire rated cable as per Australia standard ,  These cables are installed to supply power to building essential services including fire alarms, sprinkler control system, emergency and evacuation lighting and smoke control systems, such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels.

General Information:
Rated Voltage :   0.6/1KV

Cores:    1C, 2C, 3C, 4C, 5C, 2C+E, 3C+E, 4C+E

Range of Nominal cross section:    1 core: 1.5 mm2 ~ 300 mm2 ;  Multi core: 0.75 mm2 ~ 35 mm2

Standard :     AS/NZS 3013

Conductor:    Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation:  XLPE or LSZH compound

Sheath:   LSZH compound

Max. Operating Temperature :  90℃, can be 110℃ and 125℃ as per requirement

Main manufacturing procedure:

1. Copper wire drawing and annealing
2. Copper wire stranding
3. LSZH compound insulation extruding

4.  LSZH compound sheath extruding
5. Spooling

MAIN QUALITY INSPECTION EQUIPMENT

Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial dischargeinspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,

Cross-linkedcutting machine,etc.
