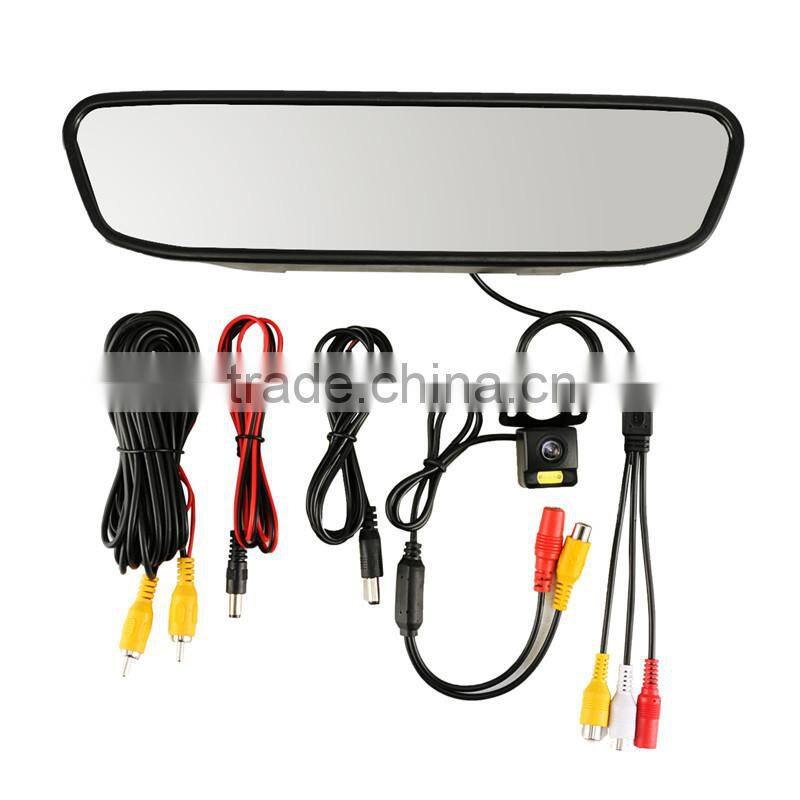

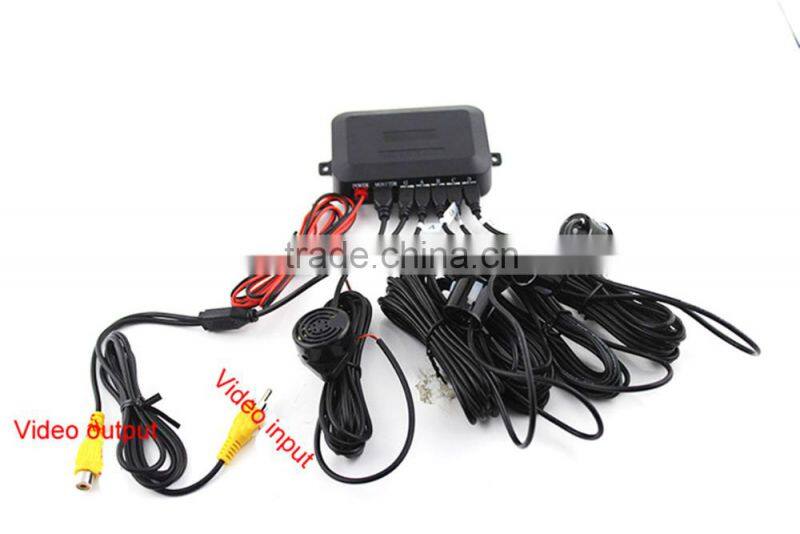

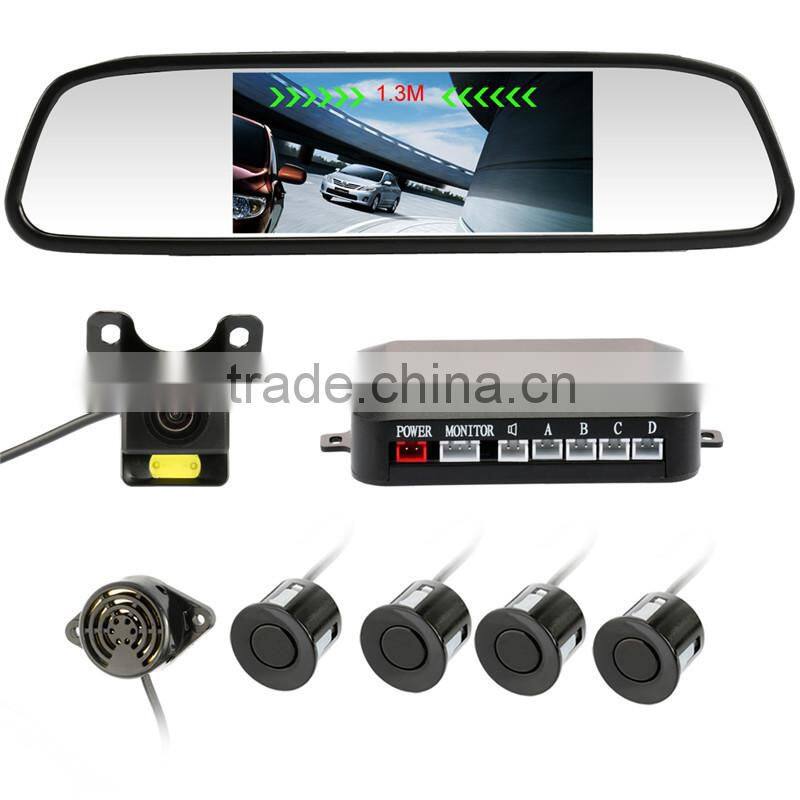

Car Reverse Backup Radar with 4 Parking Sensors+4.3" Car Mirror Monitor +Waterproof car Camera

Car Reverse Backup Radar with 4 Parking Sensors+4.3" Car Mirror Monitor + Camera


Description
Latest & Popular 4.3" TFT LCD Monitor + Night Vision Rear View Camera.
A simple solution for car reverse system.
Waterproof IR camera with wide view angle, 6m length video cable, plug and play, 4.3" High quality ultra-thin monitor, 2 channel video inputs, Easy installation. This kit is used for 12V vehicle.
It acts as a normal rear view mirror, and reflector will automatically appears when the monitor is turned off. So you can clip it over your original mirror, and it will show rearview image; while it is connected with rear view camera (including in this package), the rear view image will appear on the screen automatically when reversing the car.
Reverse using features
Auto switching when reversing Under power-on condition. When reverse gear is on, the system automatically switches from DVD/VCD video to backup camera video. And when parking is finished, it will switch back automatically, which can ensure parking safty.
AV signal auto detecting power on/off Under power-off condition. When reverse gear is on, the system automatically starts to search for the camera signal and display backup video. When parking is finished, it will switch off automatically.

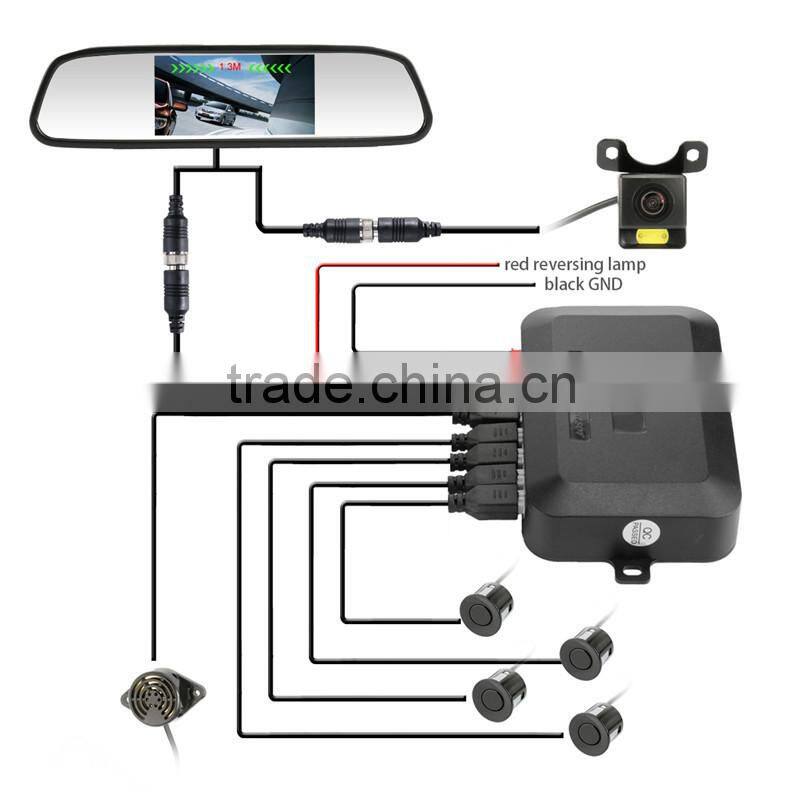

Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor.
You will see the images when your car is in reverse shift.

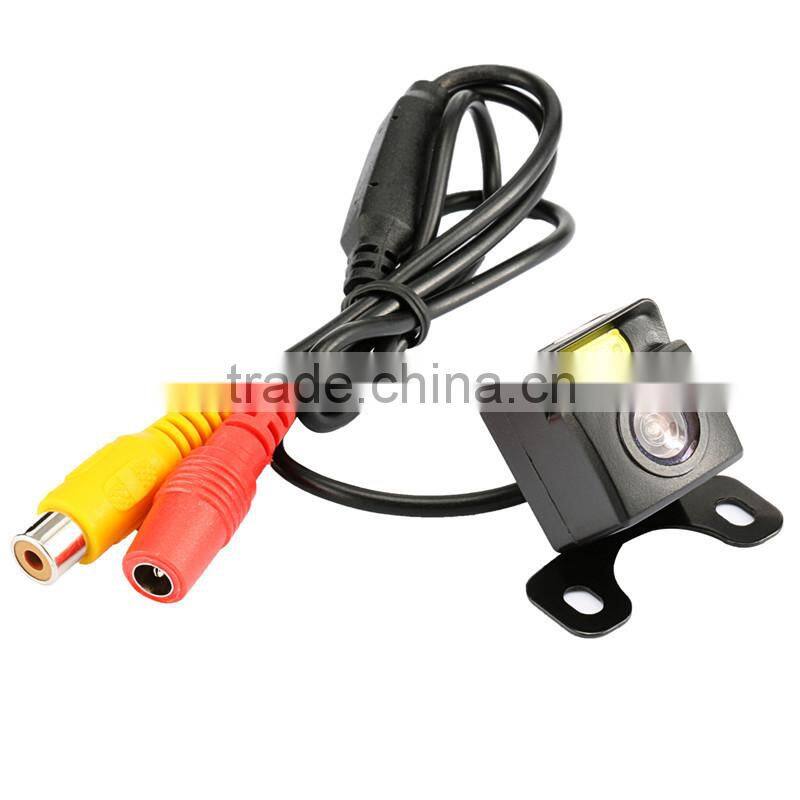

Car Camera features
High-definition and wide viewing angle
High power LED night light
Weatherproof/Waterproof, can be used both in car and hom
Resolution: 520 TV line
Applicable to variety of vehicles: car, mini-truck, mini-van etc vehicle length
Perfectly solve the issue of bad car rear view effect ,can help reduce incidents and accidents
Image sensor: 1/3 SONY'CCD
Lens angle:170°
Power supply: DC 12V
Waterproof grade: IP68

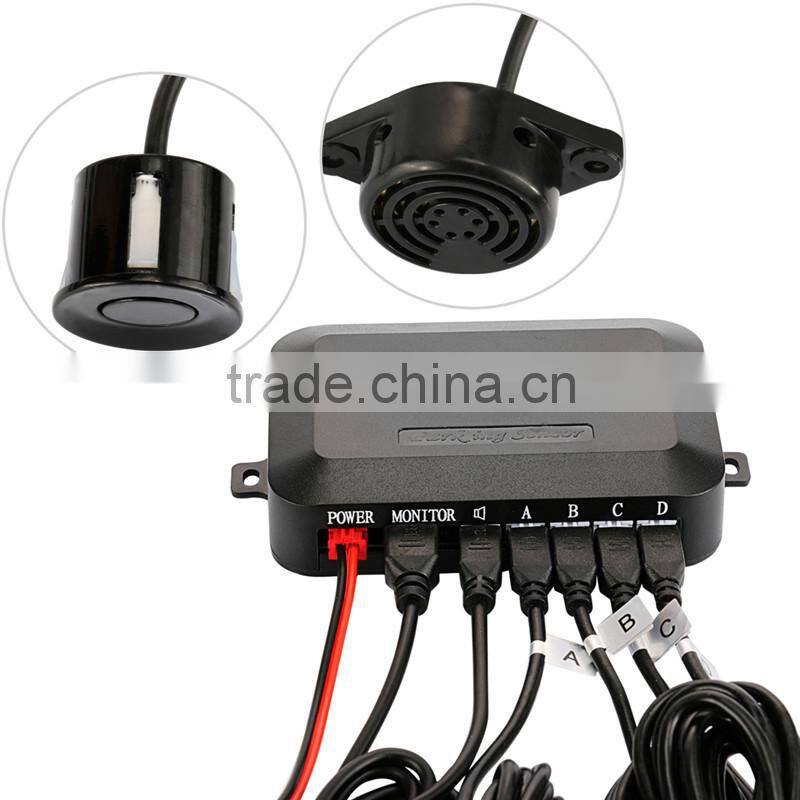

Reversing radar features
voltage: 9DCV--15DCV
Rated voltage: 12DCV
Respond distance: 0.4m--2.0m
Alarm distance: 0--2.0m
Sensor diameter: 22m
Install mode: drill
Sensor angle: X/Y/60°C
Power: Max 1.5W
Alarm volume: 65dB
Working temperature: -30°C--+80 °C
Power (wireless): 10mw
FM (wireless): 433MHz/2.4GHZ

Note:
1.The sensor surface should be kept clean;
2.The system is difficulty in following situation: slick slope,slick roundness and cotton textile;
3.The system can not stop car automatically when it detect a barrier.


Packing:

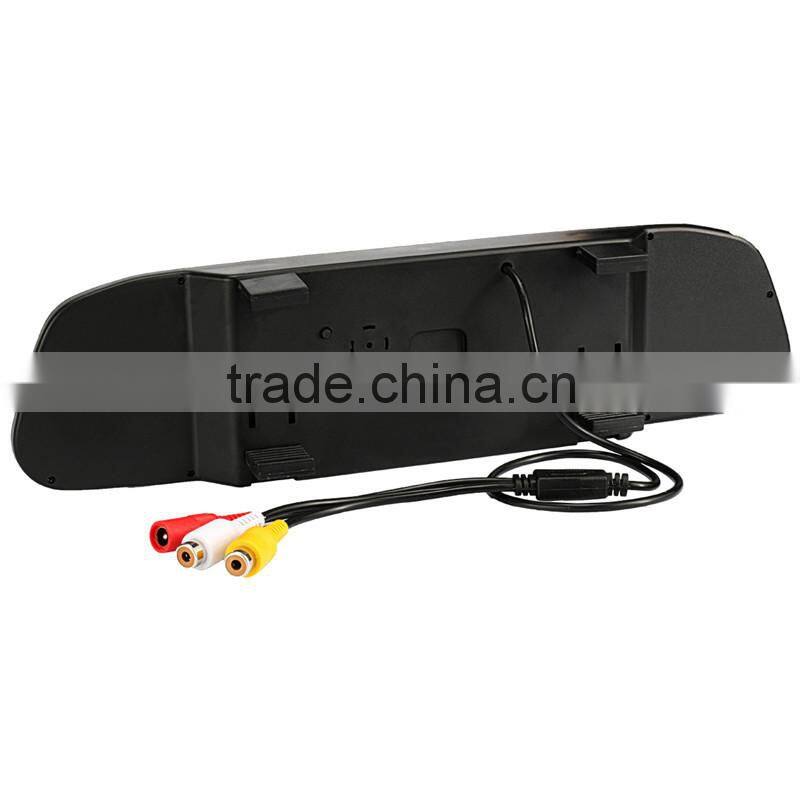

1x 4.3 Inch TFT LCD Mirror Monitor
1x Power Cable
1x Car Backup Camera
1x video cable
1x Power Cable for Camera

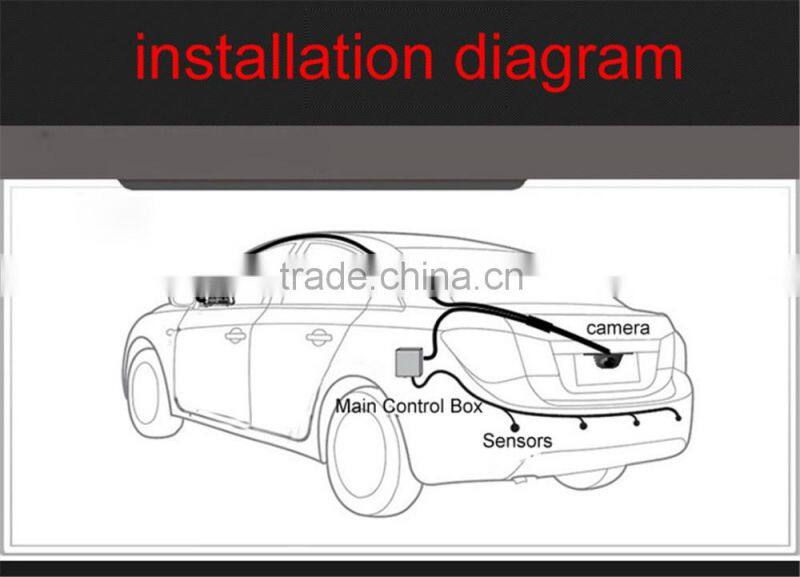

1x Installing Diagram
1x Main Control Box
1x Alarm Horn
4x Sensors
1 x Hole Saw
1 x Power Cable
1x Instructions
