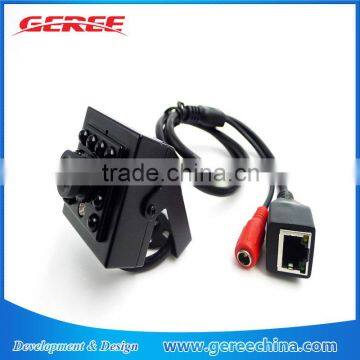

IR H.264 HD 1.0 MP 720P Mini IP CCTV Security Network Camera 3.6mm Lens Web Cam

IR H.264 HD 1.0 MP 720P Mini IP Security Network Camera 3.6mm Lens Web Cam

Features:
1.  HD 720P 940nm Mini IR IP Network Camera
3.  High resolution, presenting vivid and clear pictures.
4.  Support automatic color change/IR-CUT,realising day&night non-stop monitoring.
5.  Support various information superimposed (such as: ID, IP DDNS and so on)    onvenient to operate
6.  Introduce advanced H.264 HP video compression, achieving ultra-low bit-rate, superb high-definition picture quality.
7.  upport dual-stream
8.  support various mobile long-distance monitoring iPhone,Windows Mobile, BlackBerry,Symbian, Android
9.  Support I
10.  Support auto electronic shutter, adapt to different monitoring environment
11.  Web and CMS supporting central management software,providing SDK development
12.  Support HVR/NVR connection conform to ONVIF

1.0Mp miniIP irCamera
Main Features:
H.264 Main Profile level
Dual H.264 Stream, resolution, frame rate,bit rate adjustable
Onvif Compliant  compatible with brand NVR such as Hikvision, dahua,xiongmai
Support plug in& play,
Suport Day/Night

Technical Specifications
Model                                   1.0MP mini ir ip camera
Video Processor
ONVIF protocols                           Support
Compression Technology                   Dual Steam H.264
Frame Rate                           Real time 30fps
Video Protocol                           1xRJ45,10/100M,support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
Function    Support WEB configuration,realtime video transmitting,support motion detect and IO alarm activated to remotely recording,screen pop up,message,playback and download,support  JPEG capture,support CMS&MYEYE,SDK available
Motion    ON/ OFF (Sensitivity adjustable)
Bit Rate                          32Kbps~12Mbps
Video                                  H.264 compression,support dual stream,AVI format, stream:0.1M~6Mpbs; frame:1~30fps
Resolution                          Main stream:1280*720;Sub stream:704*576
Camera Parameter
Sensor Type            1/4" OV 9712 CMOS sensor,support Day/Night(IR cut optional), photoresistor signal linkage;color 0.6ux /F1.2, B/W 0.08Lux/F1.2
Effective pixel    1.0M egaPixels
Lens                    3.6mm(others lens can be optional)
Sync system            Embedded RTOS design,dual core DSP(Hi3518C),pure hardware compression,watchdog,
Minimum illumination    color 0.6ux /F1.2,B/W 0.08 Lux/F1.2 with 10pcs 940nm&850nm ir leds with ir-cut
Shutter time            1/25~1/1000sec
Image optimization    Flaw picture adjusts/ Image vibration adjusts/Reversed light compensation adjusts
Eliminate flicker    Auto/Off/Manual(50Hz/60Hz)
White Balance            Auto/Manual
Function            Support WEB configuration,realtime video transmitting,support motion detect
and IO alarm activated to remotely recording,screen pop up,message,
playback and download, support  JPEG capture, support CMS&MYEYE, SDK available,Mirror
Mobile Monitor            Support iPhone,Windows Mobile,BlackBerry,Symbian,Android
Working environment
Fan/Heater            Auto
Covering            IP55
LAN Port            10/100M Base-T
Temperature            -20°~50°
Humidity            0%~95%RH
Connector            RJ45 ,DC 12V
diameter           42x42mm
Material           All the metal vandal resistant
Weight                   0.35kg

Package Include:
1 x mini ir IP Camera
1 x CD Disk
1 x Power Supply
