WS-40EAxx CATV erbium-doped fiber amplifier module is the design according to the communication level standard,

in terms of power, precision and reliability are higher than  14EAxx series. It is mainly used for television image signals,

digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over a long

distance.

WS-40EAxx 1550nm erbium doped fiber amplifier module performance indicators meet the requirement of national

standard, and technology design pays attention to the product cost, is the choice to build a large and medium-sized

1550nm catv optical fiber transmission network economical transmission device.

Performance Characteristic

1. Adopt international top &low noise JDSU pumped laser, low distortion, wide band, high optical output power.
2. Imported high-performance corning erbium-doped fiber,high energy conversion rate.
3. Adopt the 32-bit ARM processor to control precision of the output is±0.05 dBm.
4. Wide range of light power receiving - 5 ~ + 10dBm,output optical power is 13~ 26dBm.

5. Stable reliable optical power output circuit and laser APC ATC thermoelectric refrigerator

    temperature control circuit.

6. Independent working pump box, need to access †5 v power.

7. supply can work independently.Independent power processing chip,better control precision of power supply.

8. Portable,low consumption,can be set up parameter through PC software.

9. Adjustable output power,consumption<3.5W.

10.Product size:226x83x19mm

Technical parameter

Limited Index

Product diagram

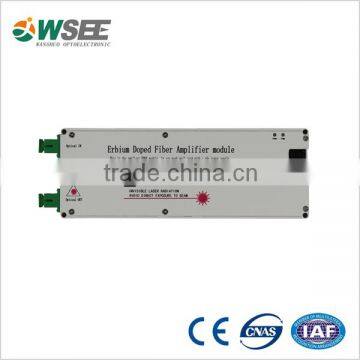

Product photo

Order guide

1.output power 13-26dBm

2.supply voltage:AC90-265&DC30-70V

3.Optical fiber connector, FC/APC or SC/APC

4.Power supply:European standard or American standard
