Battery Management System Bms for 24V Lifepo4 Battery Pack

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OSN/OEM
Model Number	OSN-8S2505-BMS		Type	Other, PCM/PCB/BMS

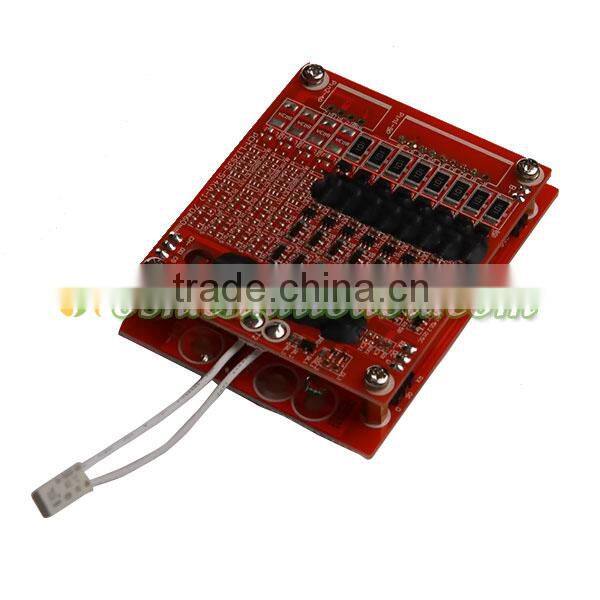

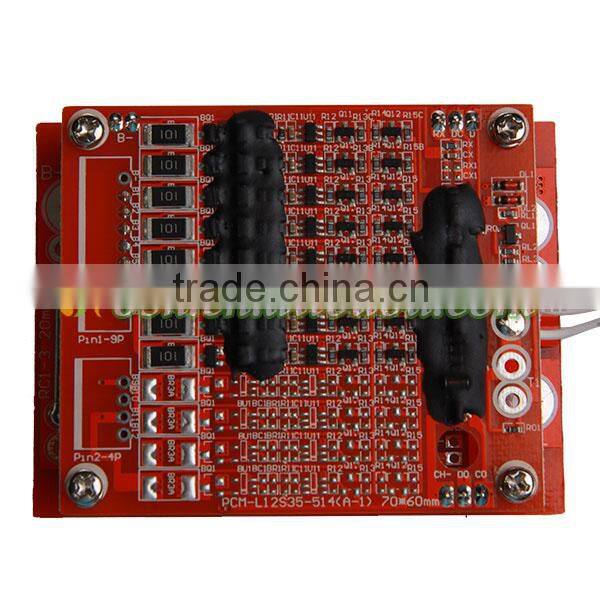

This bms for 24V lifepo4 battery pack
Maximal continuous Discharging current :25A
Charging current : 5A

BMS Specifications For 8S /24V LiFePO4 Battery Pack
Model: OSN-8S2505-BMS
No.	Test item		Criterion
1	Voltage	Charging voltage	DC:28.8V 3.6V/Cell
1	Voltage	Balance voltage for single cell	3.60+0.025V
2	Current	Balance current for single cell	72+10mA
		Current consumption for single cell	≤20μA
		Maximal continuous Charging current	5A
		Maximal continuous Discharging current	25A
3	Over charge Protection	Over charge detection voltage	3.90+0.025V
		Over charge detection delay time	0.5—2S
		Over charge release voltage	3.80+0.05V
4	Over discharge protection	Over discharge detection voltage	2.00+0.05V
		Over discharge detection delay time	10-200mS
		Over discharge release voltage	2.30+0.05V
5	Over current protection	Over current detection voltage	0.62v
		Over current detection current	80+10A
		Detection delay time	5ms—20mS
		Release condition	Cut load, Automatic Recovery
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load, Automatic Recovery
7	Resistance	Protection circuitry (MOSFET)	≤30mΩ
8	Temperature	Operating Temperature Range	-40~+85°C
8	Temperature	Storage Temperature Range	-40~+125°C
9	Size		L80W60T20mm
