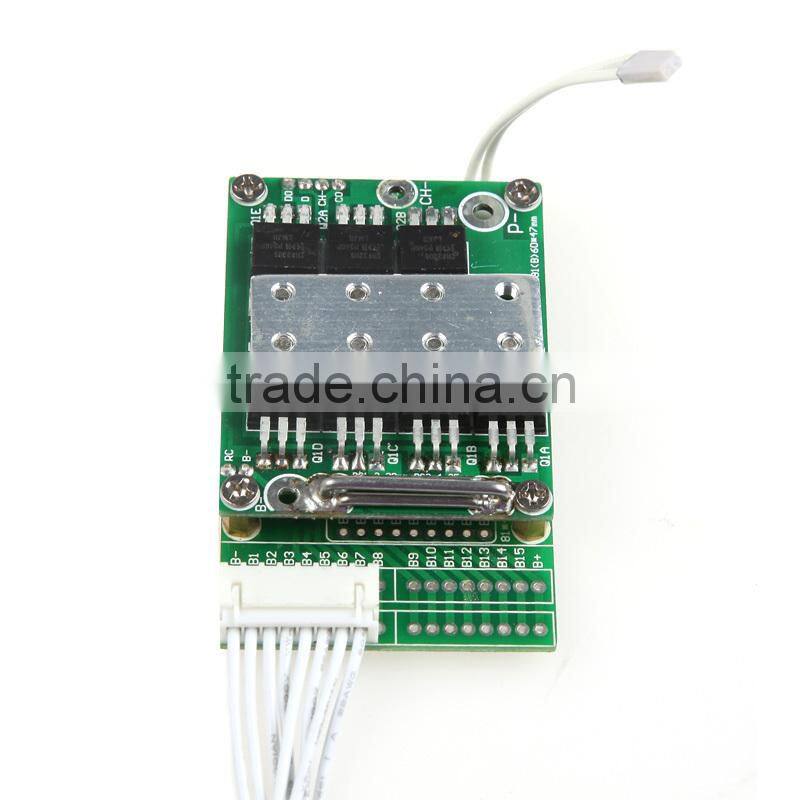

25.9V 7S30A Lithium Battery BMS/PCM/PCB

FOB Price

Negotiable / Piece

20 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OSN/OEM
Model Number	PCM-L16S25-591(A-8)		Type	Other, PCM/PCB/BMS

7S 25.9V li-ion battery pack
Maximal continuous Discharging current :30A
Maximal continuous charging current:10A

BMS Specifications For 7S 25.9V Li-ion Battery Packs
Model:PCM-L16S25-591(A-8)
No.	Test item		Criterion
1	Voltage	Charging voltage	DC:29.4 V CC/CV
1	Voltage	Balance voltage for single cell	4.20+0.025V
2	Current	Balance current for single cell	84+10mA
		Current consumption for single cell	≤20μA
		Maximal continuous Charging current	10A
		Maximal continuous Discharging current	30A
3	Over charge Protection	Over charge detection voltage	4.28+0.025V
		Over charge detection delay time	0.5—2S
		Over charge release voltage	4.10+0.1V
4	Over discharge protection	Over discharge detection voltage	3.0+0.1V
		Over discharge detection delay time	10-200mS
		Over discharge release voltage	3.0+0.1V
5	Over current protection	Over current detection current	100+20A
		Detection delay time	5ms—60ms
		Release condition	Cut load, Automatic Recovery
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-800us
		Release condition	Cut load, Automatic Recovery
7	Resistance	Protection circuitry (MOSFET)	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+85°C
8	Temperature	Storage Temperature Range	-40~+125°C
9	Size		L78W47T15mm

Note: Such type has temperature switch. the over tep protection is 60C Degree.
