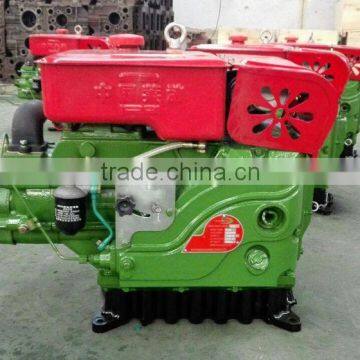

professional manufacturer china single cylinder diesel engine
- QingDaoPort
- T/T Credit Card PayPal
You May Like
-
32hp electric start water-cooled low price small diesel engine 173ED
-
35hp 186ED radiator electric start made in china single cylinder diesel engine
Quality Choice
-
china supply water cooled electric start singly cylinder diesel engine 1110td
-
Single cycle 1115 series 20hp single cylinder diesel engine
Quality Choice
-
small manufacturing idea small cheap diesel engine for the tractor
-
1115 electric start series water cooling diesel engine 1 cyclinder
Product Details
| Condition | New | Usage | Other, ALL | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Shandong, China | |
| Brand Name | weifang | Model Number | 1105TD | |
| Dimension(L*W*H) | 935*410*600 | Weight | 180kg | |
| Certification | ISO9001 | Warranty | 1 year or 1500h | |
| After-sales Service Provided | No overseas service provided |
Product Description
professional manufacturer china single cylinder diesel engine :
1>Technical Specification:
Model | 1105TD |
Intake Type | direct injection |
Rated Power | 13.2kw |
Rated Speed(r/min) | 2200 |
Fuel Consumption(g/kw.h) | 242 |
2>Main Technical Parameters of Diesel Engine:
| Model | 195 | 1100 | 1105 | 1110 | 1115 |
| Type | single cylinder,horizontal,4 cycle | ||||
Combustion system | swirl chamber | direct injection | |||
Output/Speed (kw/rpm) | 8.8/2000 | 11.1/2200 | 13.2/2200 | 14.7/2200 | 16.2/2200 |
Fuel consumption (g/kw.h) | 252 | 242 | 220 | ||
| Cooling system | forced circulation | hopper and forced circulation | |||
| Net weight(kg) | 160 | 165 | 180 | 190 | |
| Starting method | Hand cranking | Hand cranking,starting motor | |||
| Lubrication | Combined pressure and splash | ||||
overall dimension (L*W*H)(mm) | 752*528*593 | 935*410*600 | 820*472*680 | ||
| Model | 138 | 148 | 160 | 173 | 186 |
| Type | single cylinder,horizontal,4 cycle | ||||
| Combustion system | direct injection | ||||
| Output/Speed(kw/rpm) | 18.38/2200 | 20.38/2200 | 20.58/2200 | 23.53/2200 | 25/2200 |
| Fuel consumption(g/kw.h) | 220 | ||||
| Cooling system | hopper and forced circulation | ||||
| Net weight(kg) | 200 | 210 | 260 | ||
| Starting method | Hand cranking,starting motor | starting motor | |||
| Lubrication | Combined pressure and splash | ||||
| overall dimension(L*W*H)(mm) | 820*472*680 | 820*550*739 | |||
| series no. | type | rated power (kw) | standard rotational speed(r/min) | fuel consumption tate(g/kw.g) | Nct mass (kg) | starting mode | Purpose |
| 1 | 295D | 13.5 | 1500 | ≤258 | 340 | Electric start | Generator set |
| 2 | 295GJ | 18 | 2000 | ≤258 | 310 | Hand starting | Fixed power |
| 3 | 295A-2 | 20 | 2000 | ≤258 | 380 | Electric start | Fixed power |
| 4 | 295A-3 | 20 | 2000 | ≤258 | 355 | Electric start | Engineering machinery |
| 5 | 295T | 20 | 2000 | ≤258 | 280 | Electric start | Tractor |
| 6 | 2100D | 15 | 1500 | ≤258 | 345 | Electric start | Generator set |
| 7 | 2100GJ | 22 | 2200 | ≤258 | 315 | Hand starting | Fixed power |
| 8 | 2100A-2 | 22 | 2200 | ≤258 | 385 | Electric start | Fixed power |
| 9 | 2100A-3 | 22 | 2200 | ≤258 | 360 | Electric start | Engineering machinery |
| 10 | 2100T | 22 | 2200 | ≤258 | 285 | Electric start | Tractor |
Our workshop and process of products:
3>Diesel Engine Packaging&Delivery:
Packaging Details | Standard wooden case packed |
Delivery Details | 7days |
4>Diesel Engine Advantages:
Manufacturer | Our diesel engine manufacturer in China, Diesel Engine Seller and Chinese Diesel Engine |
Parts supply system | Origin engines |
D&R | Our team/experts have more than 15-year experience in this field |
Certificates | ISO9001 CE |
Services | Engineers available to service machinery overseas |
5>Diesel Engine Services:
Warranty Items | Our own simple and quick factory |
Warranty Period | 12 months or 1500 working hours from commissioning date |
Parts Replacement | Parts replacement under warranty will be sent to buyers without charges; |
Duty | Problems caused by customer's incorrect operation will be covered by the user |
Maintenance | Part use for overhaul and ordinary maintenance will be offered by us in factory price |
Service | Skillful engineers of us are available dispatched to customers place for training and service |
6>Please contact Us:
Contact Us
- Weifang Kaisheng Assembly Co., Ltd.
- Contact nameSelina Chen Chat Now
- Phone86-536-2107255
- AddressNanfeng Village, Qingchi Street Office, High-Tech Zone, Weifang, Shandong
