PB HS Groove U Joints

                 PB HS Groove U Joints

High quality and precision PB-S/D/M/R/HS  series of single or double universal joint

 Precise universal join with cube and pins:

1.Application to all kinds of general mechanical situation, maximum rotate speed may reach1000~1500r/min.

    Our Universal Joint widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking        facility and paper machine,medical machine,farm machine

2.Have single -jointed type and bimodal type

3.Each point of the largest rotation angle can be 45^o

4.Needle roller bearing,maintenance-free

5.The hole of the finshed product tolerance is H7 according to spline , hexagonal and square hole are available as long as you request.

Advantages:

• Many sizes available

• Max. angle 45 degree

• Max. speed 1000 rpm

• Available in various materials

• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance

• Several subtle design innovations that optimize performance and reduce cost

• Could manufacture products according to your drawing

Variations offered:

• Materials for midsection(Cube and Pin): 20Cr,40Cr

• Materials for hub: 40Cr,45#steel

• Materials for spline: 45#steel

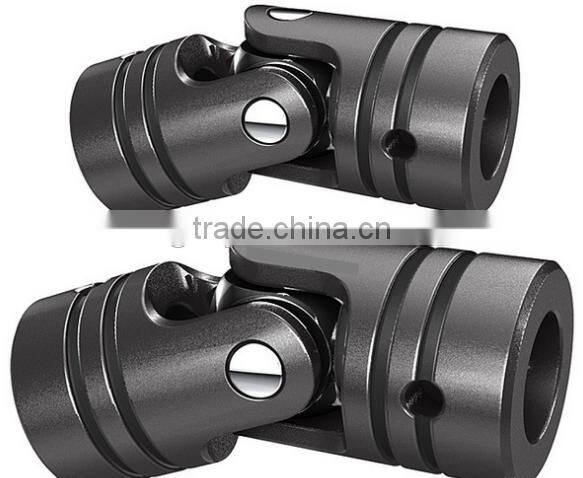

Quick-Change universal joint(Nature color )

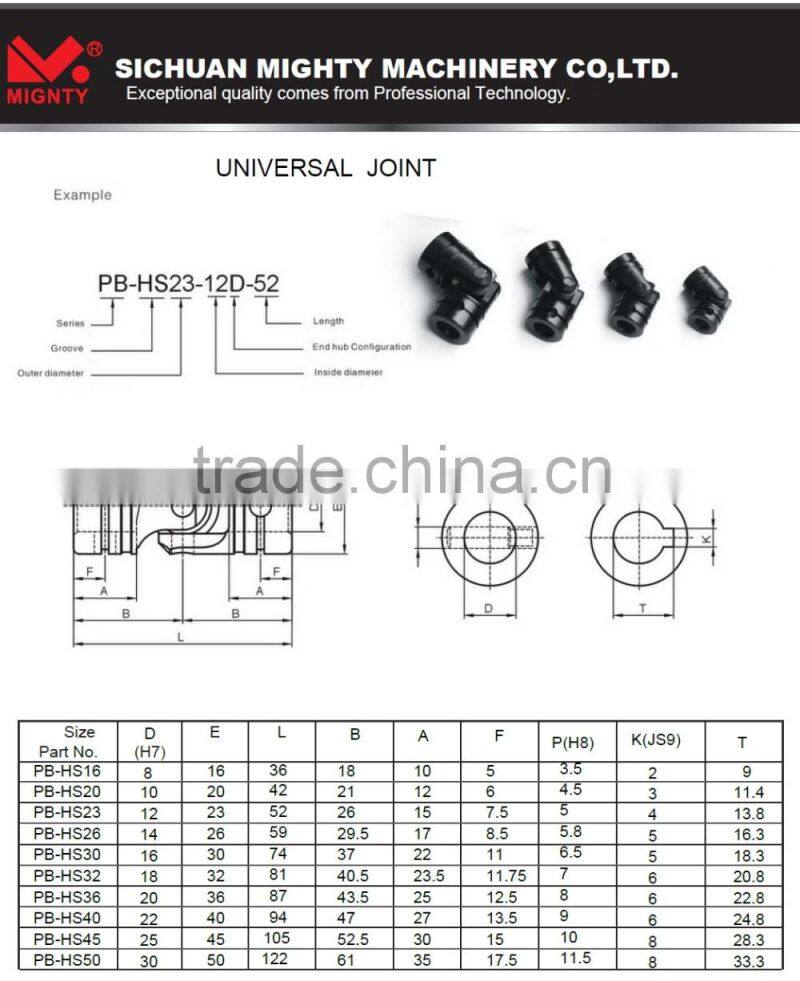

PB HS Groove Universal Joint/ Cardan Shaft Coupling Dimensions

   If interested in other types of universal joints, pls kindly CLICK HERE

MAIN PRODUCTS:

1) Timing Belt Pulley (Synchronous Pulley), Timing Bar, Clamping Plate;

2) Forging, Casting, Stampling Part;

3) V Belt Pulley and Taper Lock Bush; Sprocket, Idler and Plate Wheel;Spur Gear, Bevel Gear, Rack;

4) Shaft Locking Device: could be alternative for Ringfeder, Sati, Chiaravalli, Tollok, etc.;

5) Shaft Coupling:including Miniature couplings, Curved tooth coupling, Chain coupling, HRC coupling,              Normex coupling, Type coupling, GE Coupling, torque limiter, Universal Joint;

6) Shaft Collars: including Setscrew Type, Single Split and Double Splits;

7) Timing Belt: including Rubber and PU timing belts for industrial;

8) Other customized Machining Parts according to drawings (OEM).

 OUR SERVICE:

1) Competitive price and good quality

2) Used for transmission systems.

3) Excellent performance, long using life

4) Could be  developed according to your drawings or data sheet

5) Pakaging:follow the customers' requirements or as our usual package

6) Brand name: per every customer's requirement.

7) Flexible minimum order quantity

8) Sample can be supplied

At the present, Mighty products are mainly expoeted to European and American markets.  With the strength of competitive price and excellent quality, we annually export US$200 million, taking the lead place in China.

Every year, we MIGHTY took party in many exhibitions, such as PTC-Asia, Hannover Messe, Canton Fair etc.  The above exhibitions are just the latest two years' activities, not all listed.

More advantages:

1,More competitive prices,
2,Shorter delivery date: 35 days.

3,We are the professional manufacturer in the field of Power Trans.Parts,specially for Timing Pulleys.

4,Produce standard and non-standard
5,Strict QC Management:ISO9001:2008,our engineer,Mr.Wang has specialized in the prodcution for over 20 years.

Packaging:

 All the products can be packed in cartons, or, you can choose the pallet packing.

 MADE IN CHINA can be pressed on wooden cases. Land,air, sea transportation are available. UPS, DHL, TNT,

FedEx and EMS are all supported.

ANY QUESTION, PLS CONTACT ME WITHOUT HESITATION. WE WON'T LET YOU DOWN.
