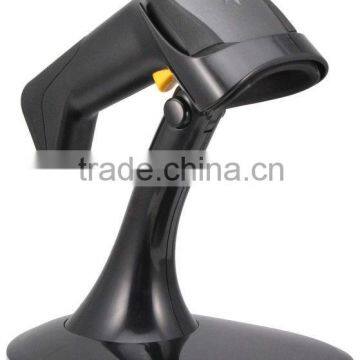

handfree barcode scanner XL-8800

1. Error rate less than 1/5 million

2. Convenient and flexible automatic induction function

3. Very comfortable operation sense.

4. Full quakeproof and antiknock design

5. Service life of button reaches up to 50 million times.

6. Supporting the RS232,PS2 and USB interface.

7. Full independent intellectual property rights

   ( having been award with multiple national patents).

8. Rich decoded types

PERFORMANCE PARAMETER

Shock                                 Designed to withstand 1.5M drops

Light Source                        Visible Laser Diode 650nm

Scan Pattern                       Single Scan

Scan Rate                           100 times/second

Scan Precision                    0.10mm(pcs0.9)

Scan Width                         window,

Scan Depth of field              0-250mm (0.33mm pos0.9)

Decode Capability               EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128,

                                               Codaber, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI,

                                               Chinese postcode etc.

Tilt                                     30°

Elevation Angle                   65°

Deflection Angle                  55°

Support Inferface                 RS232, PS2 and USB

Print Contrast                     30% UPC/EAN 100%

Mention Pattern                  Buzzer, Indicator

Scan Mode                         Manual / Automatic

PHYSICAL PARAMETER

Size                                   LxWxH: 90mmx70mmx153mm

Weight                               128g

Material                              ABS + PC

POWER

Voltage                               5Volts

Operating Current                85mA

Static Current                     36mA

Laser Class                        Meet the Grade II National Criteria for Laser Safety

EMC                                  CE & FCC DOC compliance

ENVIRONMENTAL

Operating Temperature         0°C to  45°C

Storage Temperature           -20°C to  60°C

Humidity                             5% to 85% relative humidity, non-condensing

Light Levels                         Daylight, 5000Lux
