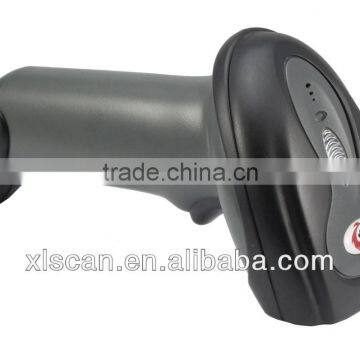

handheld barcode scanner Sulux616

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. CPU: 32 bit ARM microprocessor, super decoding ability
2. Decoding rate: 100 time/s
3. Scan Depth of field up to 350mm

Handheld Barcode Scanner Sulux616

1. CPU: 32 bit ARM microprocessor, super decoding ability

2. Decoding rate: 100 times per second

3. customer setting: Barcode setting mode, easy to operate

4. Scan Depth of field up to 350mm

5. Antiknock design: withstand 1.5M drops

6. Support 20 countries keyboard languages

7. Service life of button reaches up to 50 million times

8. Supporting the RS232,PS2 and USB interface

9. Full independent intellectual property rights

Performance Parameter

Functionality Item	Parameter
Type of illuminant	650nn laser
Use type	Hand-held
Bit error rate (BER)	1/5 million
Safety performance	Meet the Grade II National Criteria for Laser Safety
Barcode types	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc.
Supported interfaces	RS232, PC2 keyboard, USB, etc.
Scanning method	Manual
Transmission rate	RS232 Baudeate:2400-38400
Resolution (pcs0.9)	0.10mm(4mnl)
Depth of field	10-420mm (pos09 density 0.25)
decode speed	100 times/second
Reading preciseness	0.40-0.825mm
Reading distance	10-520mm
Reading angle of elevation	60°
Reading angle of dip	45°
Operating temperature	- 20°C - 45°C
Storage temperature	- 20°C - 45°C
Operating humidity	5%-85%
Storage humidity	5%-85%
Power voltage	5V
Working current	57mA
Static current	36mA
Fall test	100 times/1.5m
Light intensity	Daylight, 4000Lux
Electromagnetic interference	Complying with en50081, par1 criteria
External electromagnetic interference resistance	Complying with en50081, par1criteria
Dustproofing and waterproofing	Complying with en50081, par1 criteria
Exterior dimension	LengthWidthHeight: 9570160mm
Materials	ABS+pc
Weight	128g
