Home > Products > Boat trailer > 2014 heavy load corrosion-resistant Boat Trailer
2014 heavy load corrosion-resistant Boat Trailer
Negotiable
/ Set
10 Sets(Min.Order)
- 300 Set / Sets per Month
- Qingdao port China
You May Like
-
2014 let you fondle admiringly double axle boat trailer
-
Folding inflatable boat and yacht trailer
-
Overlength for 9.6m and heavy duty triaxial Boat traielr
-
2012 HOT sales Australia standard heavy duty Boat Trailer(LH5500)
-
Australia standard heavy duty Boat Trailer and Yacht Trailer(LH5500)
-
yacht trailer or boat trailer (LHQ360)
Product Details
| OEM No. | LH9600 | Max Payload | 4000kg | |
| Place of Origin | Shandong, China | Brand Name | LongHe | |
| Model Number | LH9600 | Size | 9600x1900mm |
Product Description
Specifications
1.Model:LH96002.Size:9.6x1.9m (do not contain fender)
3.Loading capacity:heavy-duty
4.Axle:triaxial
Heavy Load LH9600 details
| Length:9.6m | |
| Width:1.9m | |
| Tire:185R14 | |
| Tail light: LED | |
| Axle: Triaxial | |
| Hub,rim,axle,leaf spring,coupling: hot dipped galavanized | |
| Brake: mechanical brake or hydraulic brake(at user option) | |
| Loading capacity:4000kg |

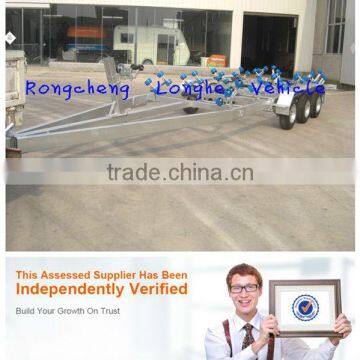

Triaxial boat trailer
Exquisite workmanship
Beautiful waterproof taillight
We are qualified company to manufacture various of trailers, we have own import and export right. We haven't any branch so far.
Any question and more details, pls feel free to contact us.
Material:
| Material | ||||||
| 1.1 GRADE | ||||||
| DuraGal angles,channels and flats are manufactured by a cold forming process which ensures that it complies with the requirements shown below | ||||||
| section | Actual thickness t mm | Grade | Minimum Yield Stress Mpa | Minimum Tensile Strength MPa |
| |
| Flats | t≤6.0 t>6.0 | C400LO C350LO | 400 350 | 450 400 | 20 20 | |
| Angles and Channels | t≤6.0 t>6.0 | C400LO C400LO | 450 400 | 500 450 | 16 16 | |
| DuraGal profiles comply with the requirements of steel type 7B in Talbe 10.4.1 of AS4100. | ||||||
| LO indicates that DuraGal profiles have Charpy V-notch impact properties as specified in TS100[11]. Table 10.4.1 of AS4100 Steel Structures permits impact tested LO grades to have the following minimum servicetemperature: | ||||||
| Actual thickness mm | Lowest one day mean ambient Temperature ºC | |||||
| t≤5 | -30 | |||||
| 5<t≤10 | -20 | |||||
| 1.2 SURFACE FINISH | ||||||
| A minimum of 100g/m² coating of zinc is applied by in-line galvanising to a mechanically(shot blasted)and chemically cleaned bright metal(AS 1627.4 Class 3.0) surface. A clear polymer barrier coating protects the protects the galvanising prior to fabricartion. | ||||||
| 1.3 SIZE RANGE | ||||||
| Equal Angles | Unequal Angles | Channels | Flats | |||
| 30x30 to 150x150 | 75x50 | 75x40 to 300x90 | 50to300 | |||
Craft : blanking,stamping, grilding,welding,assembling,painting, baking etc.
Blanking workshop
surface finishing--- painting finish or baking finish
Fiberglass workshop
Assembly shop
Delivery
Our certification:
Our products & factory:
