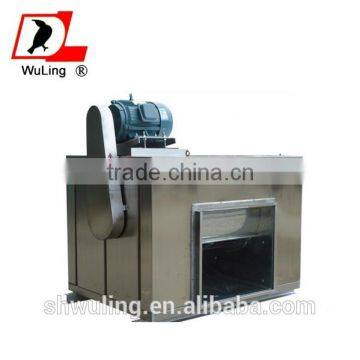

HTFC(DT)Series Cabinet Centrifugal Fan

1.HY-HTFC Cabinet centrifugal fan of fire protection and ventilation with low noise is developed by our company which is one camera dual use, high efficiency and low noise. It has many obvious advantages, such as: low noise, high performance of high temperature resistance, novel and compact structure, small shaking, light weight, easy installation and maintenance, and so on.

2.It is widely used in these sites where need exhaust smoke of fire protection and kitchen, entilation and air exchange (Lifting or Ground mounted), such as: Hotel, Restaurant, Auditorium, Movie theater, Basement, Industrial and mining enterprises, Office building, and so on. It can supply air and exhaust air. It had been good market all over the country and get well received by user. It is the ideal product of exhaust smoke of fire protection, ventilation and air exchange for high-rise buildings now.

3.This series product has two type of Type A and Type B. The motor installed in the outer of box is called Type A. In the test of high temperature resistance, it can be continuous running more than 40 minutes under the condition of flue-gas temperature more than 280℃ to reach the objective of exhaust smoke of fire protection. It can be one cameral dual use after equipped with double speed motor. It can be ventilation and air exchange in the low- speed, also it can be exhaust smoke of fire protection in the high-speed. The motor
installed inside of box called Type B. It is generally used as ventilation of supply air and exhaust air.

Operating conditions
The transporting medium is air or other non-spontaneous-combustion and non-explosive- combustion air with no harm to human. The air transferred shall not contain any adhesive material, dust and grain and the concentration shall not exceed 150mg/ m3 with the temperature shall no higher than 80. When the HTFC series are used for fire control, the fans can run more than 30 minutes continually under the condition that air and smoke temperature is at 280°c.

Operating temperature: -20~+40℃(Can be continuous running);
High temperature resistance: 100℃(Can be continuous running 20 hours),300℃(Can be
continuous running 60 minutes);
Humidity: <90%;
Medium conditions: Air (Dust content is less than 100mg/m3);
Power supply: Three phase, 380V/50Hz.

Standard configuration

• Impeller
• Belt cover(Only for Type A)
• Bearing(With cover)
• Flange of air inlet & air outlet
• Belt pulley, Belt
• Motor
• Motor adjustment rail
• Fan case(Case, Collector device, Bracket)
• Silencer box
• Main axis

Technical parameter form :
