Home > Products > GXF diagonal Flow Blower > High Quality Sjg Series Oblique Flow Pipeline Blower

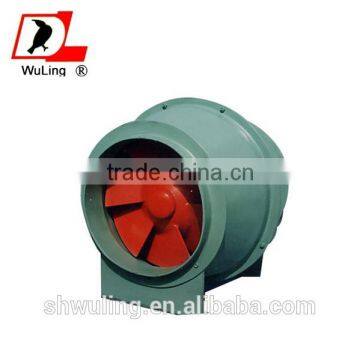

High Quality Sjg Series Oblique Flow Pipeline Blower

FOB Price

USD $50 - $500 / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Duct Fan
Blade Material	Cast Iron	Place of Origin	Shanghai, China
Brand Name	wuling	Model Number	GXF
Voltage	220/230/380/400/415/420/440/480V Etc	Power	30KW
Air Volume	3500-30249 m3/h	Certification	CE
After-sales Service Provided	Overseas third-party support available

Product Description

Long Life Stable SJG series of pipe oblique flow fan

Speed up the design method of SJG series fan used oblique flow meridian, the drum or straight cylinder, cone hub, distorted structure of airfoil blade. Compressor coefficient of centrifugal fan and high axial fan flow series of large number of characteristics, has the advantages of low noise, low power consumption, compact structure, horizontal, vertical installation.

product feature

1.Simple structure, lower noise, low-pressure .

2. Difference impeller angle can be choose based your needed,such as 15°,20°,25°,30°, 35°.
3.100% performance test before shipping.

4.Total 13 difference types based the impeller dimension, including 280mm dia, 315mm dia, 355mm dia, 400mm dia, 450mm dia, 500mm dia, 560mm dia, 630mm dia, 710mm dia, 800mm dia, 900mm dia, 1000mm dia, 1120mm dia.

5.Impellers were drove directly by the power-generating.

Application:
Widely used in industrial and civil building ventilation system.According to the transmission medium requirement, made of anti-corrosion, explosion-proof, used for conveying corrosive gases, flammable and explosive.The temperature of gas to be delivered shall be in the range of -20 to 80℃; and the dust content in the gas shall not be more than 100mg/m3.

Technical parameter form :

Model	Speed	Air flow	Wind pressure	speed power	Noise	Weight
NO	R/min	(m³/h)	(Pa)	(kw)	dB(A)	(kg)
2.0F	1450	200	110	0.04	58	16
		400	91
		500	70
		600	54
2.5F	1450	300	180	0.12	60	24
		450	165
		600	150
		1000	110
2.5D	2900	580	716	0.75	73	32
		890	650
		1210	580
		1980	450
3.0F	1450	500	260	0.25	61	27
		750	240
		1500	170
		2000	130
3.0D	2900	980	1000	1.1	77	46
		1460	950
		2880	670
		3860	500
3.5S	960	800	140	0.18	59	42
		1500	100
		2000	80
		2500	50
3.5F	1450	1000	320	0.37	61	45
		2000	200
		3000	190
		4000	110
3.5D	2900	1900	1100	2.2	79	65
		3860	760
		5800	720
		7880	430
4.0S	960	1000	190	0.25	60	61
		2000	150
		3000	110
		4000	51
4.0F	1450	1500	420	0.75	62	67
		2500	390
		4000	280
		5000	220
4.5S	960	1500	360	0.37	61	70
		3000	275
		4000	150
		5000	100
4.5F	1450	2000	580	1.1	68	80
		4000	480
		6000	350
		7000	250
5.0S	960	1500	360	0.75	63	90
		2500	290
		4000	240
		6000	150
5.0F	1450	2000	710	2.2	69	110
		4000	580
		7000	480
		10000	345
6.0S	960	3000	480	1.5	65	150
		6000	360
		8000	260
		11000	240
6.0F	1450	4000	1200	5.5	75	165
		8000	870
		12000	690
		18000	380
7.0S	960	4000	600	3	72	215
		8000	500
		15000	350
		18000	260
8.0E	720	6000	700	4	68	372
		10000	585
		15000	510
		25000	210
8.0S1	960	6000	780	5.5	71	320
		10000	700
		15000	600
		25000	400
8.0S2	960	6000	880	7.5	72	360
		10000	790
		15000	685
		25000	510

Instalation and dimension figure:

SJG type silencing fan size table (unit: mm)

Model	D	D1	D4	L3	n-1
NO	D	D1	D4	L3	n-1
2	200	240	400	200	6-6.5
2.5	250	290	450	250	6-6.5
3	300	340	500	300	6-6.5
3.5	350	390	550	350	8-8.5
4	400	460	600	400	8-8.5
4.5	450	505	650	450	8-8.5
5	500	555	700	500	8-8.5
6	600	665	800	600	10-10.5
7	700	760	900	700	10-10.5
8	800	860	1000	800	10-10.5

Packaging & Shipping Note: SJG type fan import and export with muffler, transmission 6-10dB (A), can also be extended to reduce the noise silencer, the greater the numerical.

Packaging & Shipping

1.Export Plywood Box Packing
2.BOX Carton Box
3.Pallet
Delivery Detail:5-30 days

Our Services

1)Your inquiry and question will be replied within 24 hours.

2)Professional foreign sales staff gives you best service.

3)Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories

4)All our products will be provided with best quotation, excellent quality and prompt delivery.

5)Sample is available by express.

6)OEM is available.

Company Information

Shanghai wuling Safety and Protection Equipment Co., Ltd was established in 1992, Located in Shanghai,China, is a ventilation equipment and valve as the center, research and development, production, sales and service as an integrated enterprise. After more than 13 years development, at present in the factory with CNC plasma, sheet metal, metal stamping,sheat,Riveting, Welding, dynamic balance, general and numerical control equipment and precise measuring and test equipment.And We passed ISO9001:2008 international quality system authentication.

Our company accumulates the talent and experienced technical people who rich in fan and valve system field,they are the solid guarantee of our quality. engineers and technicians accounted for over 20% of the number of the company. Since the establishment of the company, products are widely recognized by the market and users, win good reputation.Shanghai Stadium ,Pudong Airport,etc are our client.

Any need,Please feel free to contact us to get the products meet your market.we will offer highest quality products and value-added services to you.

FAQ

♦What kind of cable do you produce?
•We specialize in producing industrial fan,fire damper,exhaust smoke valve etc.

♦What is your MOQ?
• Normally, the MOQ is just 1 PCS.

♦What is your delivery time?
• Normally, our delivery time is 15 days after received deposit. It is base on the quantity of the order.

♦What is your payment term?
• Normally, we accept T/T or other payment, we can negotiate with customers.

♦What is your quality?
• We have special quality control department to ensure our good quality

♦Can your factory customize cables basing on customer's sample?
• Yes, we can. OEM/ODM is available.
