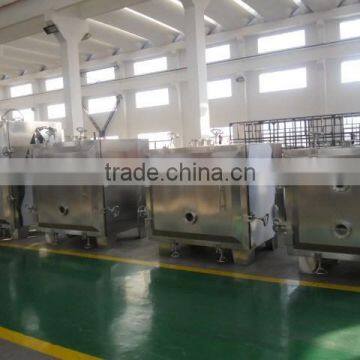

FZG -20 Square Vacuum Dryer/vacuum drying oven

FOB Price

USD $3,000 - $10,000 / Set

1 Set(Min.Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vacuum Drying Equipment
Place of Origin	Jiangsu, China	Brand Name	lemardrying machinery
Model Number	FZG-20	Power(W)	7.5kw
Dimension(LWH)	1924x2500x1513	Weight	4000kg
Certification	ISO901,ISO14001,CE	Warranty	3 years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Principle of FZG-20 Square Vacuum Dryer/vacuum drying oven:

It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying . if use vacuum to take air and humidity out, the dry speed will be faster.

Note: if use condenser, the solvent in raw material can be recovered. The condenser can be substituted by SK series water-ring vacuum pump or ZSWJ series hydropower spray vacuum pump unit if available.

Application of FZG -20 Square Vacuum Dryer/vacuum drying oven:

It is Suitable for drying of thermal sensitive materials easily resolved. Polymerized or deteriorated under higher temperature and it is wide used in pharmaceutical, chemical, foodstuff and electronic industries.

Parameters of FZG-20 series Square Vacuum Dryer/vacuum drying oven:

parameter/model	YZG-600φ×L	YZG-1000φ×L	YZG-1400φ×L	FZG-15L×W×H
Inner size of syring chamber(mm)	600×976	1000×1527	1400×2054	1500×1400×1220
Outer size of drying chamber(mm)	1153×810×1020	1693×1190×1500	2386×1657×1920	1513×1924×2060
Layers of backing support	4	6	8	8
interval(mm)	81	102	102	122
Size of baking tray(mm)	310×600×45	460×640×45	460×640×45	460×640×45
Quantity of baking tray	4	12	32	32
Working pressure inside the pipe of baking support(MPa)	≤0.784(8kg/cm²)	≤0.784	≤0.784	≤0.784
Temperature inside the chamber(°C)	≤150	≤150	≤150	≤150
Degree of vacuum inside the chamber when operation in idle, MPa	≤30
Under the vacuum condition of 30and110°C ,evaporation rate of water(kg/m²,h)	7.2
Model and power of vacuum pump when condenser is used(kw)	2X-15A 2kw	W3 5.5kw	W3 7.5kw	2X-70A 7.5kw
Model and power of vacuum pump when condenser is not used(kw)	SK-0.8 2.2kw	SK-3 5.5kw	SK-3 7.5kw	SK-3 7.5kw
Weight of drying chamber(kg)	250	800	1000	2100
