Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 10-15m/min | Place of Origin | Hebei, China | |
| Brand Name | TianYu | Model Number | Roll Forming Machine | |
| Power(W) | 4+3KW | Voltage | 380V / 50HZ / 3Phase | |
| Dimension(L*W*H) | 6.2*1.4*1.2M | Weight | 3.2Tons | |
| Certification | ISO/CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Customer satisfaction good quality galvanizing roof tile machine made in china
Specification
Weight capacity of decoiler | 5.0T |
Appearance Size(L*W*H) | 6500*1500*1200 |
Raw material /feeding sheet material | colored steel & galvanized steel |
Roller material | 45# high grade steel |
Shaft material | 45# high grade steel |
Kind of drive | chain drive |
Cutting system | automatic hydyaulic cutting |
Cutting blade material | Cr 12 high grade steel |
Frame material | 300 H-high grade steel |
Control system | totally automatic PLC control system |
Main power | 3 kw |
Roller stations | 13 rows |
Speed of production | 8-12m/min |
Thickness of colored steel | 0.2-0.8mm |
Frame material | 300 H-steel |

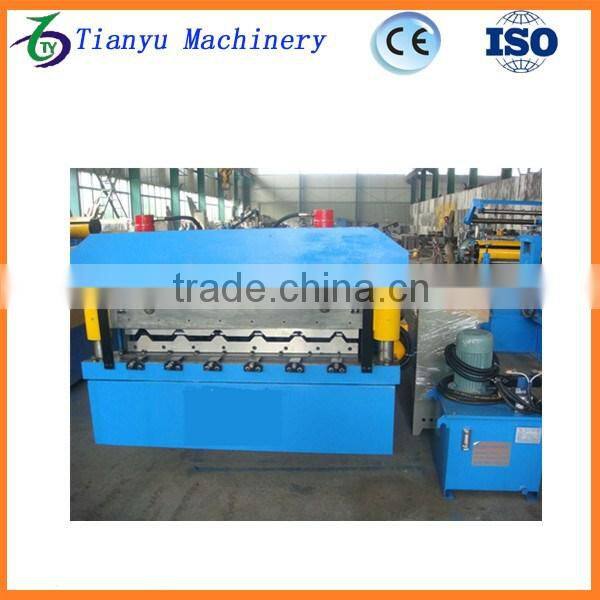

Product show
Roofing Sheet Roll Forming Machine has following advantages
- Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;
- Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;
- The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;
- Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);
- Forming machine all parts baking finishing and then assembly
Technical data of Good quality metal roofing roll forming machine
Model | MS35-125-750 | MS26-125-900 | MS25-210-840 | MS25-210-850 |
Dimension(L*W*H) | 520cm*133cm*90cm | 750cm*130cm*100cm | 560cm×130cm×120cm | 550cm×130cm×140cm |
Voltage | 380V,60HZ | 380V,60HZ | 380V,60HZ | 380V,60HZ |
Diameter of the roller | 65mm 45# | 68mm 45# | 68mm 45# | 68mm 45# |
Rollers | 10 | 11 | 12 | 13 |
Rotating mode | Chain wheel and chain | Chain wheel and chain | Chain wheel and chain | Chain wheel and chain |
Control systerm | PLC | PLC | PLC | PLC |
Main Motor power | 3KW | 3KW | 3KW | 4KW |
Material of the cutting blade | Gr12 | Gr12 | Gr12 | Gr12 |
Forming speed | 8-10m/min | 8-10m/min | 8-10m/min | 12-15m/min |
Thickness of plate | 0.2-0.7mm | 0.2-0.7mm | 0.2-0.7mm | 0.2-0.7mm |
Width of plate | 1000m | 1000m | 1000m | 1000m |
Distance | 130mm Depth:8mm | 130mm Depth:8mm | 130mm Depth: 8mm | 1300m Depth:8mm |
Machine weight | 2600KG | 2800KG | 3500KG |
Roof and wall panel smples
Q:How is this machine's service life?
- In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
- If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
- Our machine's warranty period is 1 year,if the broken parts can't repair, we can free send the new parts replace the broken parts to you;
Q:Can you supply the raw materials?
- Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
