Electric Color Steel Sheet Cutting Machine
- TIANJIN XINGANG
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, galvanized glazed color steel sheet bending machine, metal roof sheet bending machine roll forming machine | |
| Tile Type | Other, colored steel and galvanized steel | Use | Step | |
| Production Capacity | 1 M/Min | Place of Origin | Hebei, China | |
| Brand Name | TIANYU sheet metal sheet bending machine | Model Number | Ty Bending machine | |
| Power(W) | 3 kw | Voltage | 380V.50HZ.3Phase | |
| Dimension(L*W*H) | 4700*1000*1800mm | Weight | About 0.8 T | |
| Certification | CE &ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

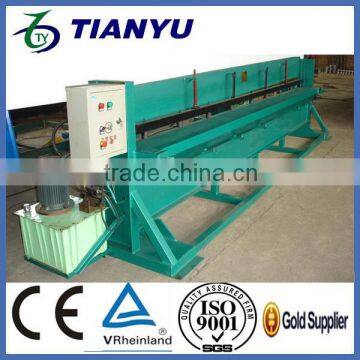

sheet electric color steel sheet cutting machine
1. specification of the roll forming machine
| 1.Weight capacity of decoiler | 0.8T |
| 2.Appearance Size(L*W*H) | 4700*1000*1800mm |
| 3.Raw material /feeding sheet material | colored steel & galvanized steel |
| 4.Roller material | 45# high grade steel |
| 5.Shaft material | 45# high grade steel |
| 6.Kind of drive | chain drive |
| 7.Cutting system | automatic hydyaulic cutting |
| 8.Cutting blade material | Cr 12 high grade steel |
| 9.Frame material | 300 H-high grade steel |
| 10. Control system | totally automatic PLC control system |
| 11.Main power | 3 kw |
| 12. Thickness of Plate | 0.2-1.0 mm |
| 13.Speed of production | 1 m/min |
| 14.Thickness of colored steel | 0.2-0.8mm |
| 15.Frame material | 300 H-steel |

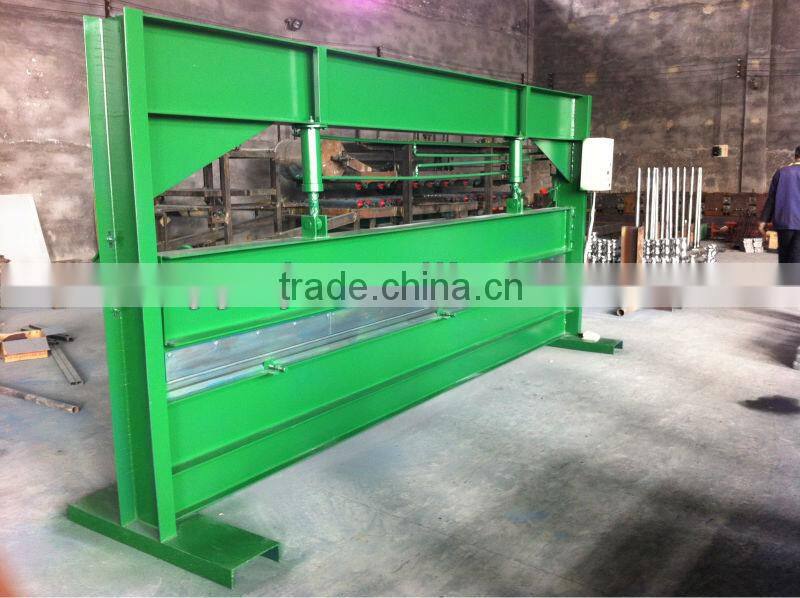

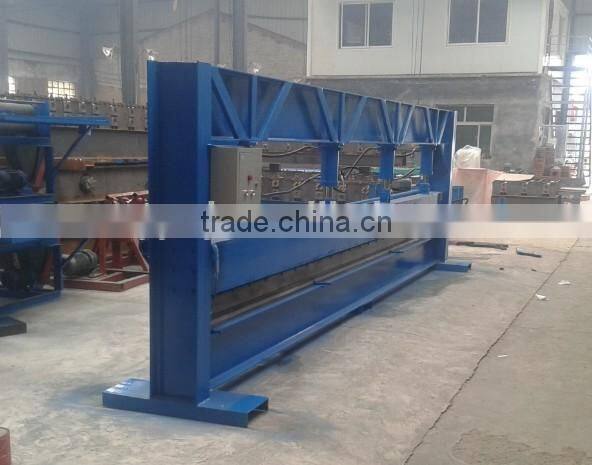

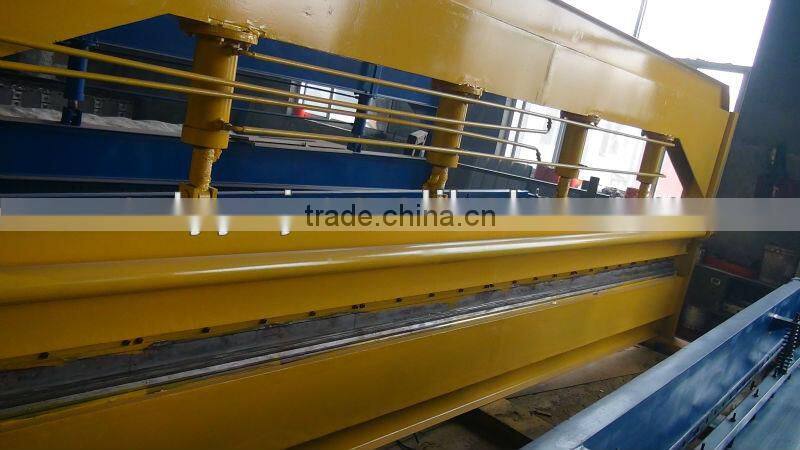

2.Pictures newest technology twisting scrolling bending machine

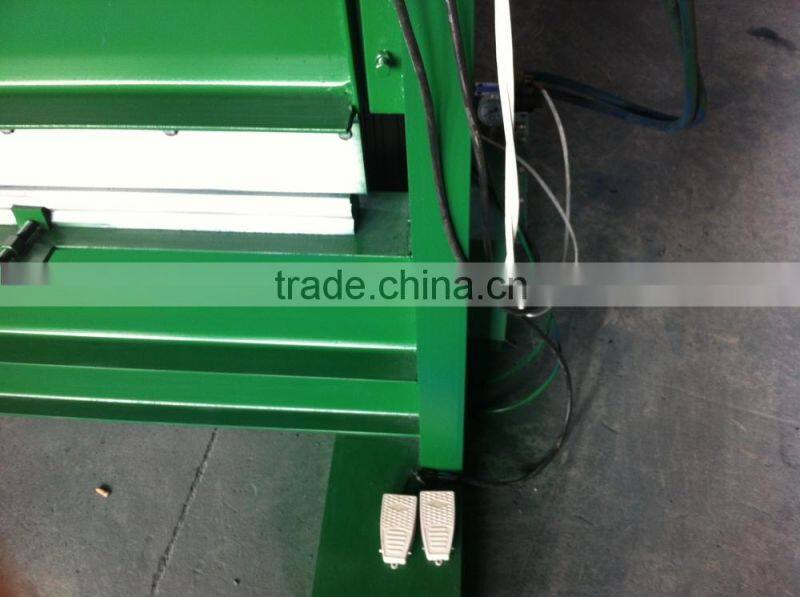

Machine and Tile

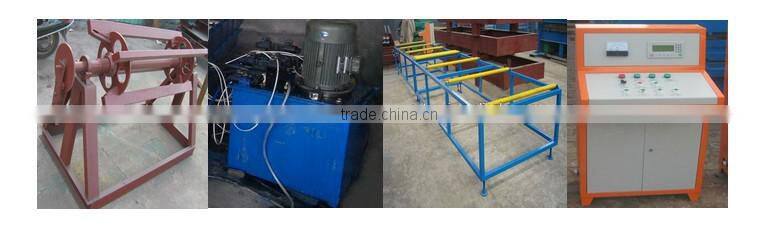

We do you like,Optional components
This corrugated machine has following components can be selected as customer requirements specially
1.Nonautomatic decoiler
Carrying capacity: 5-7t;
Max coil width: 1.25m
Dimensions: 1.5*1*1m
Operation: Manual
2.Pump
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank,
the pumps drive the cutter to work
Power of the oil pump: 3kw
Hydraulic oil :40#
3.Product stand
4. Automatic control box
PLC control system
Tolerance : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
PLC is Taiwan"Delta"
Frequency Converter(in the PLC box): to make it accurately when working.
Frequency converter is Taiwan"Delta"
In Chinese and English interface.
certificates
The machine is bare packing. Usually one machine can be put into one 20- 40 feet container. We use steel wire to fix the machine in the container.
4.Packing and delivery roll forming machine

With the policy of client-oriented business at Tianyu Machinery Factory,We put highly emphasis on not only outstanding quality but also excellent and efficient after sales
service with specialfocus on a wide range of roofing roll forming machines.In addition to
installation,operation training, regular maintenance and spear parts provided, we will keep
offering our best service even overdue the period of guarantee. Always we sincerely welcome
suggestions and feedbacks from our customers regardless of good or even negative on comments
so as to keep on improving and innovating our production line.Sticking to the principle to
provide all clients with an excellent after sales service, we satisfy customers' needs in
compliance their requirements at all costs. Over the past 18 years, therefore, we have grown
our business on rollformers gradually, which we believe firmly it's just the proven of our good
performance on QC, after sales service and machines manufacturing.The more you learn about
us, the more you will understand that we are reliable and trustworthy. Just give a try to send
your inquiry to us and you'll see!
5.Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
6.Our guests for exports roll forming machine
Welcome to Botou City Tianyu Roll Forming Machinery Equipment Factory!

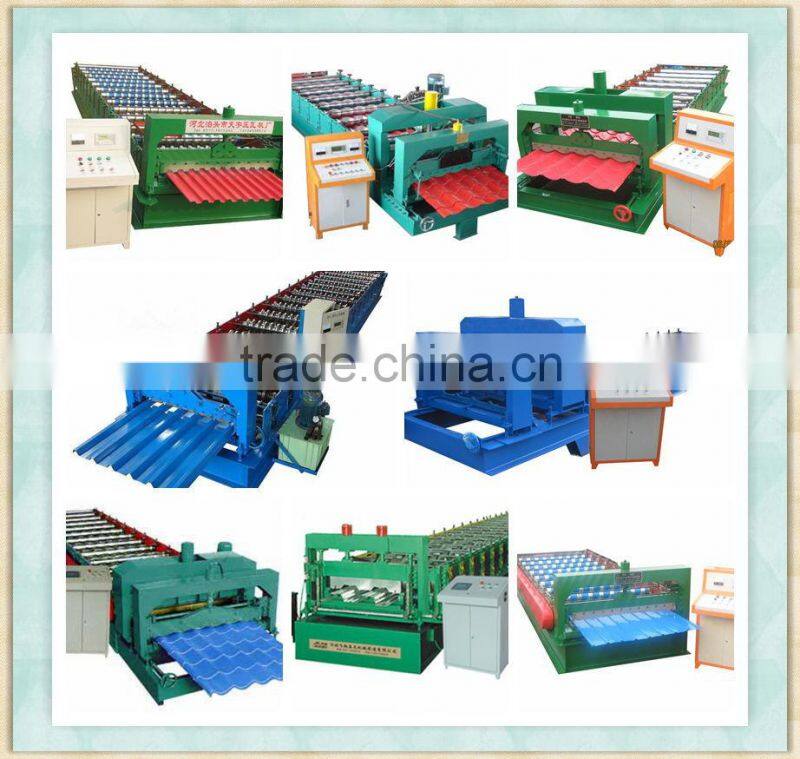

7.Other productions
FAQ:
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

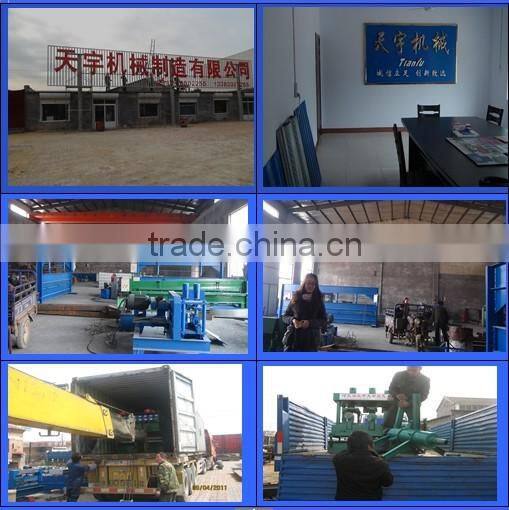

ABOUT US
Factory Size (ters): | 10,000-30,000 square meters | |
Factory Location: | (West of the 104 National Road Bodong Fuzhuang Development Zone, Nanpi County)Fuzhuang Village, Liubali Township , Nanpi County, Cangzhou City, Hebei Province, China | |
Number of Production Lines: | 2 | |
Number of R&D Staff: | Less than 5 People | |
Number of QC Staff: | Less than 5 People | |
Contract Manufacturing: | OEM Service Offered |
We are the manufacture of all types of roll forming machine
Our factory is one of the earliest Roll Forming Machine Manufacturers in China Botou City (found in 1996 with more than 15 years experience and covers an area of over 20000 square meters,has two seperated factory.),
We are not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines,
C&Z shape purline machines,
highway guardrail roll forming machine lines,
sandwich panel production lines,
decking forming machines,
light keel machines,
shutter slat door forming machines,
downpipe machines,
gutter machines, etc.
All the parameters are only for reference, we can product Machines as per your profile drawings.
We have professional team to make different kinds of roll forming machines for our customers, from designing, processing,assembling, debugging, delivery. We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines. If there is any problems happened to the machine, we will provide solution at once. Hope we could establish win-win business relations in the soon future!
