Trade Assurance Prepainted cold-rolled sheet metal steel coil

Specifications

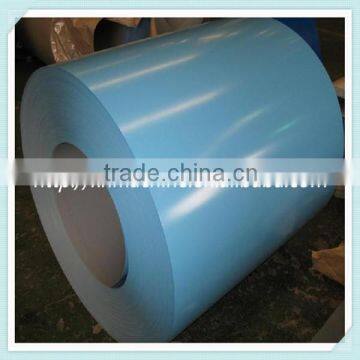

Prepainted cold-rolled sheet metal steel coil
1.thickness 0.2-1.0mm
2.zinc coating 60-275g
3.width 1000-1250mm
4.best price

prepainted cold-rolled sheet metal steel coil

1.thickness 0.2-1.0mm
2.zinc coating 60-275g
3.width 1000-1250mm
4.best price

Technical parameters

PPGI surface can be divided into coated board, embossed board, printing plate.
1).Thickness: 0.2-1.0mm,Thickness tolerance:±0.02mm
2).Width: Less Than 1250mm,Width tolerance:-0/+3mm
3).Coil Weight: 3-5 Ton
4).ID: 508±10mm or 610±10mm
5).Colors:White, Black, Sky Blue, Red (can make as Customers' Request)
6).Paint type: Polyester, Silicon modified polyester, High-durbility polyester,PVDF
Coat Fabric:

          Top Coat:10-25 Micron Polyester+ 5-10 Micron Primer,(Can cover PE Protective Film)
           Back Coat:5-20 Micron Primer (Paint Thickness:±2um )
7) .The gloss can changeable by Customers' Request.we can also do some High gloss, with some sparkling granule in it.
8) .T Bend Test:1T-3T ,Pencil hardness: min F.
    MEK Test: min. 100 double rubs for top side.
9). Packaging: Inner Packing: Anti-Rust Paper ;Outer Packing: Corner Protected.
10).PPGI application: widely used in roof, construction, door and windows, solar heater, cold room, kitchen utensils, household appliance, decoration,transportation and other lines.
11).Year Capacity: 200,000Tons
