780 Tile Forming Machine Type And Corrugated Roof Tile Roof Use Galvanized Roofing Sheet Roll Forming Machine
- 20 Set / Sets per Month
- XINGANG TIANJIN
- T/T Credit Card
You May Like
-
780 Trapezoidal Coloured Metal Roofing Sheet Molding Machine
-
780 Corrugated Sheet Metal Roof Panel Machine
-
780 Color Steel Roofing Roll Forming Machine
-
780 Colored Steel Sheet Metal Roofing Roll Forming Machine
-
780 New Design IBR Automatic Roof & wall Sheet Roll Forming Machine
-
780 Metal Corrugated Roof Sheet Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGHE | Model Number | 780 | |
| Power(W) | 5.5KW | Voltage | 380V,3phase,50HZ or as customers request | |
| Dimension(L*W*H) | 10000mm*1300mm*1200mm | Weight | 3.5tons | |
| Certification | BV | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Color Steel Corrugated Profile Roofing Sheet Rolling Machine
| 1.Forming Tile Picture: |

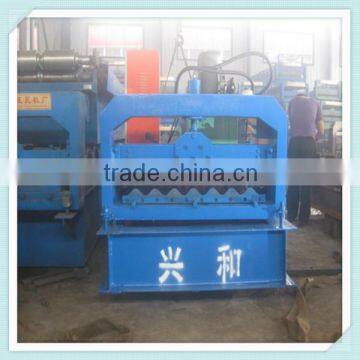

| 2.Roll Forming Machine Picture: |
| 3.other accessories picture: |
| 4.the chart of process flow: |
Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand
| 5.eqeitment technical parameter: |
Main forming machine
machine size | 10000mm*1300mm*1200mm |
Feeding width | 1000mm |
Equipment weight | 3.5T |
Material of shaft | 45#steel adjustable treatment |
Out diameter of shaft | φ70mm |
Material of roller | Cr12, quenched treatment HRC58-60°C |
Number of forming rollers | Up for 820: 13 rows bottom for 860:11 rows |
Main frame | 300 H steel |
Thickness of medium plate | 16mm |
Transportation system | Chain transportation |
Thickness of chain | 1.0 inch |
Main motor power | 5.5KW |
Bearing | 6213 |
Gear box | 150*150 |
Forming speed | 8-10m/min |
Rolling thickness | 0.3-0.8mm |
Hydraulic shearing
Material of blade | Cr12,heat treatment 60-62°C |
Shearing system | It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 4kw Hydraulic oil :40# |
Electrical system
Screen display | 5.7 inches touch screen |
Main computer control cabinet | It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is TaiWan”taida” The seller should provide Chinese and English language screen. |
Optional System:
Our factory is specialized in manufacturing color steel forming machinery,C&Z purlin machine,archaic glazed tile forming machine,steel structural floor panel roll forming machine,sandwich panel roll forming machine,highway guardrail forming machine and other cold roll forming machines,crimp machine,curved machine.
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3) After-sales service:
We sent engineer to the scene to guide installation, debugging and training operators.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
