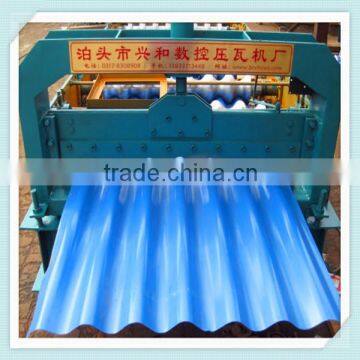

Trade Assurance 780 China Supplier Corrugated Roofing Sheet Rollforming Machine

machine size

10000mm*1300mm*1200mm

Feeding width

1000mm

Equipment weight

3.5T

Material of shaft

45#steel adjustable treatment

Out diameter of shaft

φ70mm

Material of roller

Cr12, quenched treatment HRC58-60°C

Number of forming rollers

Up for 820: 13 rows bottom for 860:11 rows

Main frame

300 H steel

Thickness of medium plate

16mm

Transportation system

Chain transportation

Thickness of chain

1.0 inch

Main motor power

5.5KW

Bearing

6213

Gear box

150*150

Forming speed

8-10m/min

Rolling thickness

0.3-0.8mm

Material of blade

Cr12,heat treatment 60-62°C

Shearing system

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.

The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.

Power of the oil pump: 4kw

Hydraulic oil :40#

Screen display

5.7 inches touch screen

Main computer control cabinet

It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.

Transducer brand is TaiWan”taida”

The seller should provide Chinese and English language screen.
