dage professional 18ch sharpy BEAM 230w 7r

Main Features:

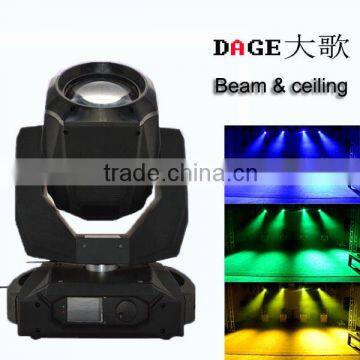

DE-3318 15R Sky-touch beam is a powerful moving head with super wide beam angle:0-7º,

the strong parallel beam from small to big is changeable, 20% stronger&bigger than normal,

8 and 16 prism, which overlapping will create amazing 24 prism! With the help of 14 dichroic

color+open, 14 fixed gobo+open can generate perfect and fantastic lighting effects.

Lamp Source

Philips 300W 15R

Power Supplies

AC110-240V,50-60HZ

Power consumption:460w

Electronic Ballast

Optical System

High precision & muti-agglution optional glass lens

Color wheel(1 color wheel)

14 dichroic color+open

Variable speed and bi-directional rainbow effect

Gobo System(1 gobo wheel)

14 fixed gobo+open

Gobo shaking & scrolling at variable speeds available

Effect Configuration

Beam angle:0-7°

The unique optical path structure makes the beam much stronger and brighter.

Frost:100% frost washing effect

Prism:8 and 16 prisms,which overlapping can create amazing 24 prism,bi-direction

rotating in high-slow speed.

Focusing:electronic liner focus,line focus

Dimmer:0-100% liner dimmer,strobe speed:1-14 times/sec

DMX Control:18CH

Control mode:DMX 512,Master-slave,auto

Manual display:1.6 million pixel LCD screen,Chinese and Englis can

switch easily,180 ° rotaton

Dmx signal connection:3 pin and 5 pin XLR input/output

Movement & Structure

Pan:540°(8/16 bit),

Tilt 270 °(8/16 bit)

Smooth and fluent movement,With electro-optic reset system

Aluminum structure +ABS Fire-proof plastic case,2 handles

Pan and Tilt lock for the convenience of transportation and  maintenance.

Protection & function

PFC prower protection,Voltage fluctuation(±10V) is available.

10s after the device was turn off,the power will be reduced 50w automatically

 for extend the lamp's life.

Fans and overheat cool protection

with positioning and automatic error correction function.

Body size:360*420*495(mm)

Net Weight:18.5kg

Packing list
