with 8, 16, 24 prism in 1 sharpy beam 7r moving motorized pan tilt head

Specifications

with 8, 16, 24 prism in 1 sharpy beam 7r moving motorized pan tilt head

1. Quality:  8 years experence focusing on this item, original philips lamp, 3-phase motors for X/Y moment,  aluminum-alloy structure.

2. Effect:  Beam angle:0-7degree, strong&sharp parallel beam light up more than 180m outdoor, 20% brighter than normal. Amazing 8, 16, 24 prism in1.  With the help of 14 dichroic color+open, 14 fixed gobo+open can

generate perfect and fantastic lighting effects.

3. Warranty: 12 months warranty, if any problems(except man-made damage) during warranty time, spare parts will bedelivery for free including the shipping fees.

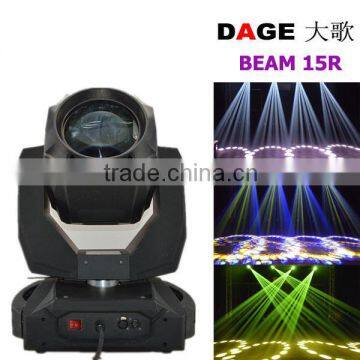

Product's Images:

 Item's Specification:

 Lamp Source

Philips 230W 7R

Power Supplies

AC110-240V, 50-60HZ

power consumption:355w

Electronic Ballast

Optical System

High precision& multi-agglutination optical glass lens

Color wheel (1 color wheel)

14 dichroic color+open

Variable speed and bi-directional rainbow effect

Gobo System(1 gobo wheel)

14 fixed gobo+open

Gobo shaking& scrolling at variable speeds available

Effect Configuration

Beam angle: 0-7°

The unique optical path structure makes the beam much stronger and brighter.

Frost:100% frost washing effect

Prism: 8 and16 prisms, which overlapping can create amazing 24 prism. bi-direction rotation in high-slow speed

Focusing: electronic linear focus, fine focus

Dimmer: 0-100% linear dimmer, strobe speed: 1-14 times/sec

Control

18 DMX CH

Control mode:DMX512, master-slave, auto

Manual display: 1.6 million pixel LCD screen, Chinese and English can

switch easily, 180°rotation

DMX signal connection: 3 pin and 5 pin XLR input/output

Movement&Structure

Pan 540°(8/16bit ), Tilt 270°(8/16bit )

smooth and fluent movement,With electro-optic reset system

Aluminum structure + ABS fire-proof plastic case, 2 handles

Pan and tilt lock for the convenience of transportation and maintenance

Protection&function

PFC prower protection, voltage fluctuation (± 10V) is available.

10s after the device was turn off , the power will be reduced 50w automatically

for extend the lamp’s life.

Fans and overheat cooling protection

With positioning and automatic error correction function

  Packing&Shipping:

Flight case:(2 in 1):90x60x86cm       Weight: 93KG

                     (1 in 1):59x53x85cm       Weight: 53.5KG

Carton packing:(1 in1): 47x50x64cm    Weight:  22.5kg

1. Sample:   MOQ: 2 units   deliverly time: 1-3 working days

2.Quality assurance:

All the raw materials before installing must be inspected strictly by our welll-qualitied QC.

The QC are required to take good care of every process,ensure every part in good quality before

 turnning to next step.

Double check every part before leaving our factory, promise everything is ok to our customers.

   Effect pics:

  Company info.:

DAGE Status:

Pioneer manufacturer of the latest and most popular beam spot wash 3in1 and Sky-touch beam  based in China.
