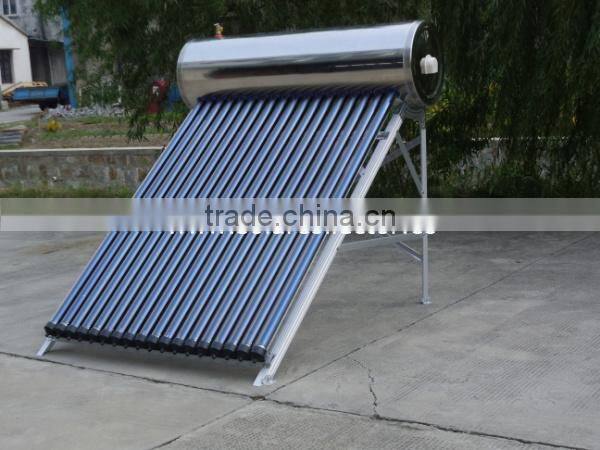

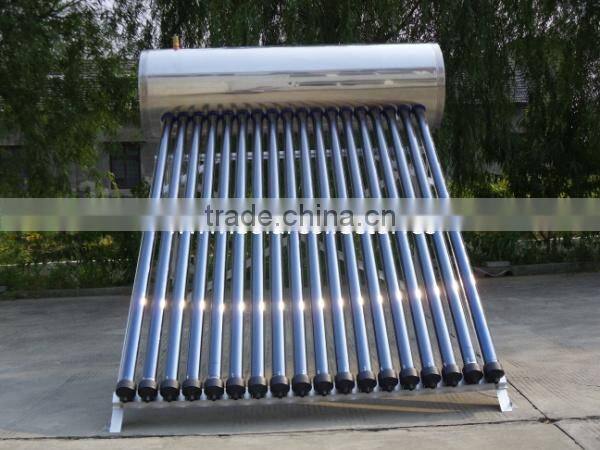

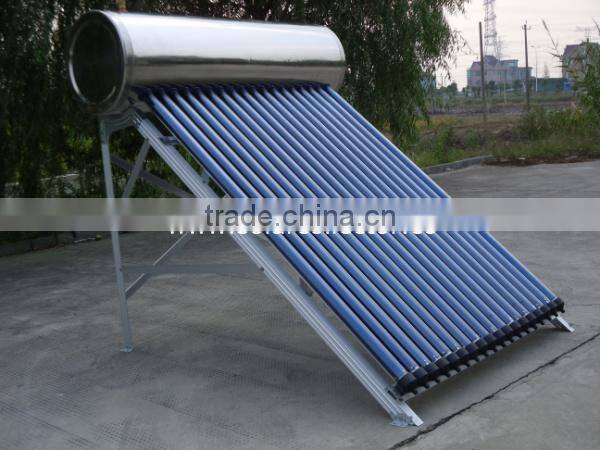

Colour Steel Copper Pipe Solar Water Heater

Specifications

Solar water heater

Technical Parameters

 Features description:

1) Copper heat pipe tube and inner medium for thermal transmission, with a quick startup and super efficiency

2) No water flows into vacuum tubes, system works well with withdrawal of one or several heat pipe vacuum tubes

3) Super efficiency of insulation with polyurethane foam; No vent with less heat loss as compared to nonpressurized type

4) System withstands pressure more than 6 Bar, can be connected directly with tap water, more safe system and comfortable hot water use.

5) System can be equipped with auxiliary electric booster and intelligent controller for solar heating assistance and automatically system control

6) Simple structure, easy for assembly and installation on different structure

7) Can be used all year round even works well in extremely cold climate

8) Long lifespan, can be of good service more than 30 years

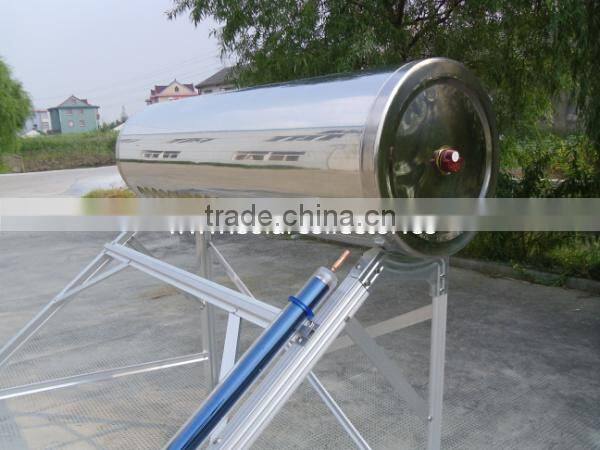

Heat Pipe Vacuum Tube: Three-target galss tube, aluminum fin and heat pipe with its inner medium together makes an efficient solar collecting device for heat exchange, efficiency generated about 55% in summer and 42% in winter more than that of all-glass vacuum tube.

Inner water tank: Thickened food-grade SUS304-2B stainless steel as storage tank keeps the water clean and drinkable, advanced automatic argon-arc welding technics ensures a very long lifespan (more than 30 years)

Water tank shell: Color or PVDF steel plate with paintings special processed, much more durable and appealing with super mechanical performance, and survives several decades to ocean coast envirionment.

Insulation Layer: High-density polyurethane integrated foam-forming with twice slaking treatment

Supporting Bracket: Hot-dip galvanized steel painted or aluminum alloy plate, good weight bearing and wind resistance design (140 km/hr), super mechanical performance and corrosion resistance ensures a long life to acid rain. easy installation, universal bracket suitable for either flat and slope roof installation

Accessories: Safety valve and relief valve, Stainless bolts & nuts, anti-aging dustproof rubber seal, plastic pipe holder to ensure their lives as long as other parts of the system

Optional Devices:

Electrical heater, as an auxiliary heating element in case of raining or cloudy days so as to ensure a continous hot water supply

Intelligent controller, automatically controls startup and ceasing of auxiliary heating device with temperature sensor, more intelligent operation

Anod magnesium bar: Soften hard water in system so as to protect the storage tank from water scale

Warranty:

3 years international responsibility for integrated system exchange and 15 years for vacuum tube compensation due to original quality problems
